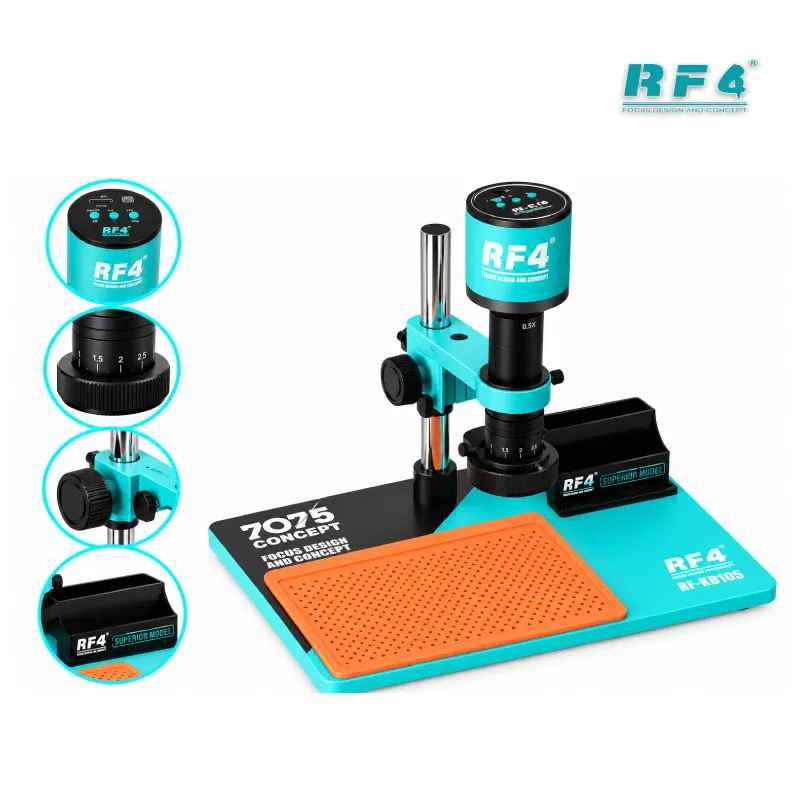

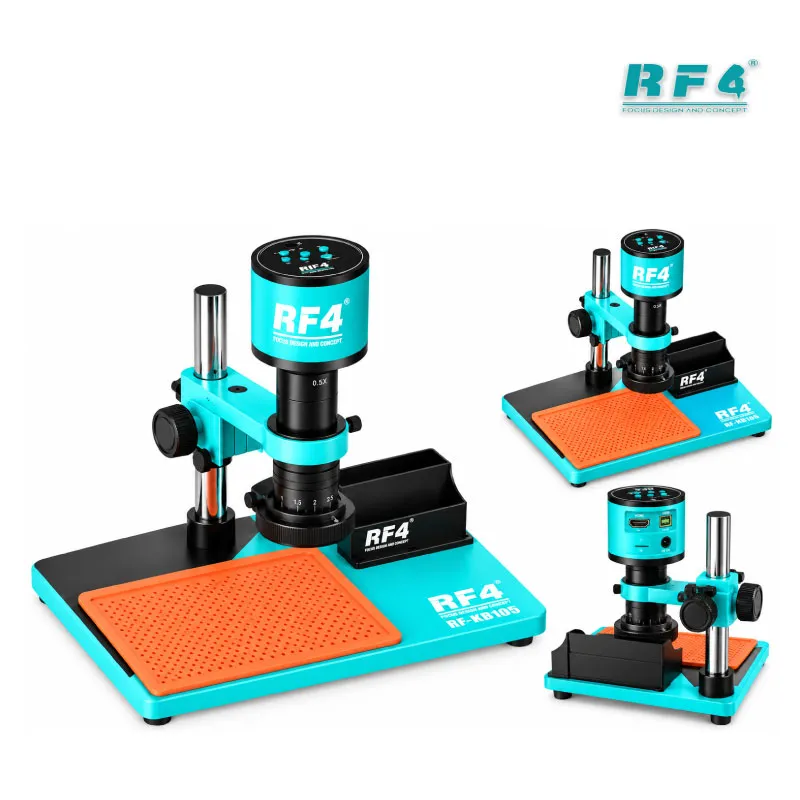

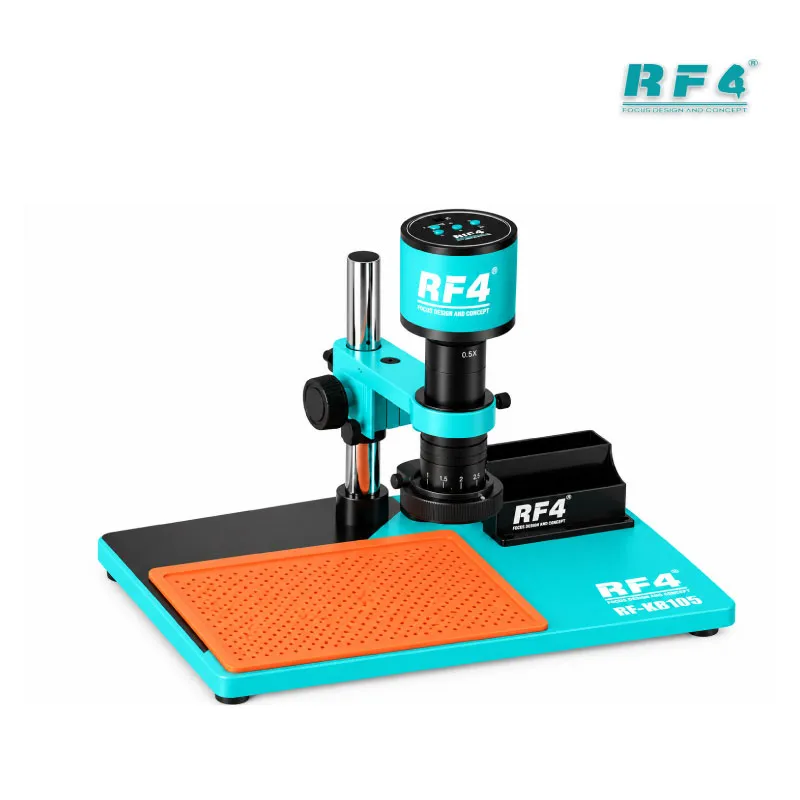

RF4 RF-KB105 Microscope With RF-C68 Camera

Professional Mobile Repair Microscope for Pad-Level Work

The RF4 RF-KB105 is a professional mobile repair microscope for technicians who work at pad level. You get a 7X to 45X optical monocular head for lag-free viewing, plus the RF-C68 camera that sends the same view to a monitor or LED TV over HDMI. One stand covers inspection, rework and proof for the customer. If your daily jobs include IC change karna, CPU reballing, short tracing or ISP wiring on dead phones, this combo puts magnification and a screen on one bench. The RF4 RF-KB105 microscope suits shops that handle board-level hardware faults, not just part swaps.

Optics and Magnification Range

The 7X end shows a wide slice of a logic board. You follow a power line from the battery connector toward the PMIC, or trace a network path from the RF section to the antenna points, without losing your place. Push magnification toward 45X and the view fills with BGA pads, flex connector pins, small passives and the surface of individual solder joints. That level decides your next move: reflow the joint, replace the part, or run a jumper lagana on a lifted pad.

The monocular head keeps the optical path direct, so no processing delay sits between your tweezers and your eye. Use the low end to find the fault area and the high end to confirm it before you apply heat. A range from 7X to 45X also covers boards of different density on one head, from a crowded Samsung or Oppo board to an iPhone logic board.

Lighting and Workspace

The lamp carries 144 LEDs. A dense array lights tall parts such as shields, inductors and connectors from many angles, so cracked solder, corrosion residue and burnt spots show up instead of hiding in shadow. You spot a hairline crack beside a PMIC at first glance instead of after a second pass.

The base measures 260 x 375mm. It holds a full phone motherboard in a PCB holder, an opened sandwich board or a tablet board, with room left for tweezers, flux and a hot air nozzle. You keep your tools beside the board instead of balancing them on the edge of the stand. The full combo weighs 5.0 kg, so give it a fixed spot on your bench.

RF-C68 HDMI Microscope Camera

The RF-C68 uses a 1/2.8-inch Sony IMX335 CMOS sensor and runs on DC 5V 2A. Its HDMI output connects straight to a monitor or LED TV, so you skip the computer entirely. The on-screen menu supports English and Chinese, which keeps first setup simple.

A screen view changes how you work through a long shift. You keep a natural posture instead of bending over the eyepiece for hours, and you compare the board against a schematic or boardview on a second display. You also show customers the failed component on screen before you quote a CPU reball or IC replacement. Training institutes use the same feed to run a live soldering demo for a full class instead of one student at a time.

Rework and ISP Workflow Fit

Diagnosis starts with a DC power supply and a multimeter. When the multimeter shows a short on a main rail, the microscope helps you find the damaged capacitor instead of lifting parts at random. During rework, you remove the faulty chip with a hot air station, clean the pads with a soldering station and desoldering wick, and inspect every pad for damage. Then you place the new IC or reball the CPU with your reballing kit and stencil. After rework, check the chip edges for seated balls, flux residue and stray solder that can cause a fresh short.

On a charging IC or PMIC change, inspect the pads under magnification before anything else goes down. A torn pad can bring a charging issue back after replacement, and catching it at 30X saves you a second teardown.

The same optics support software-side faults. When a phone sits in a boot loop, hangs on logo or goes dead after flash, you often need ISP access. You locate the CMD, CLK and DATA points on a crowded board and solder fine wires to them for your eMMC programmer, UFS adapter or test box. ISP pinout tools only help when you can see those points and hold a steady hand at that scale.

Everyday Jobs and Upgrade Path

Daily workshop jobs gain speed too. A charging issue from a cracked port joint, a display problem from a damaged FPC pin, a network issue from a lifted RF component and a water-damaged board with corrosion under the chips all turn into faster, more certain repairs once you see the damage clearly.

If you still work with a desk magnifier or a basic USB camera, this combo moves you up from plain magnification to true optical depth plus a screen. Pair it with a hot air station, a temperature-controlled soldering station, PCB holders, a reliable multimeter and a reballing kit, and your bench handles hardware faults from connector soldering to CPU-level repair. Service centers, repair shops moving into motherboard work and training institutes get the most from it. Compare other units in the Microscopes category if your board sizes or budget differ.
