RF4 0.5X WD165 Auxiliary Microscope Lens

0.5X WD165 Microscope Lens for Board-Level Repair Clearance

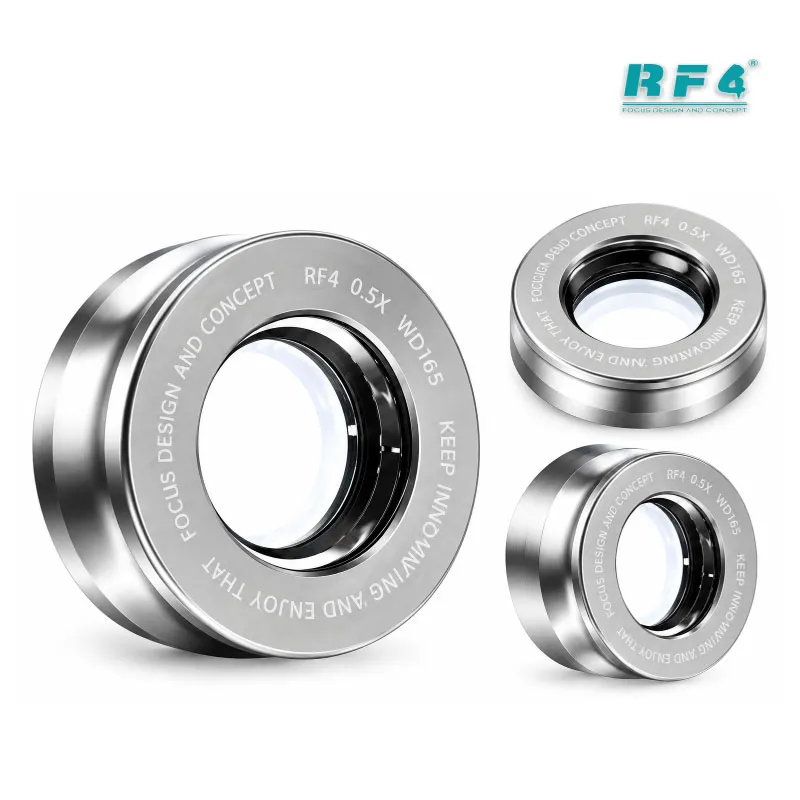

The 0.5X WD165 microscope lens is an auxiliary objective for technicians who need more room between the optics and the board. Fixed objectives often sit too close to the PCB once hot air nozzles, soldering irons, and reballing tools enter the workspace. This lens extends the working distance to 165mm and lowers magnification to 0.5X, which gives you a wider view of the motherboard. Your bench stays open for rework, and your eyes stay on the component. The lens uses a 48mm (1-7/8 inch) mounting thread, so it attaches to a compatible microscope head without changes to the stand.

Working Distance for Hot Air and Soldering Tools

Working distance decides whether your tools reach the component without striking the optics. At 165mm, the lens leaves enough vertical space above the board for a hot air nozzle to move while you watch the reflow. Your soldering iron tip also gets room for angled approaches near shields, connectors, and tall capacitors that a close objective would block. The trade-off is lower magnification compared with a direct objective, so adjust your zoom setting to recover the detail you need. A wide, steady view also helps you track pad alignment across a large chip, which is where many rework mistakes begin. Check alignment before you heat the joint, not after.

Optics, Mounting, and Care

The lens uses glass elements, which keeps the image clear across the field of view when the microscope is set up correctly. Because it threads on rather than clamping, you avoid putting pressure on the microscope head. Attach it by hand, then check focus on a flat reference board before you start work. Clean the glass only with a microfiber cloth and a suitable lens cleaner, since abrasive wipes leave micro-scratches that reduce clarity. Keep the lens covered when the bench is idle to limit dust and fingerprints on the surfaces that carry the image to your eyes.

Where It Fits in Your Repair Workflow

In a typical motherboard inspection or BGA reballing session, you check the pads before component removal and again after placement. Start with the lens to read the overall board layout, then switch to higher zoom for solder joint detail. Mobile phone motherboards often need this combination of distance and width, especially when a chip sits near a shield or a connector. Technicians who already run a 48mm objective stand get the most value from it, since the lens threads on without extra adapters. Use it as your default view for layout work, and step up in zoom only when the joint needs a closer look.
