RF4 RF-H6 600W Hot Air Gun Soldering Station

Professional Hot Air Rework Station for Mobile Board Repair

The RF4 RF-H6 is a professional hot air rework station built around a 600W hot air gun with touch control and a large digital display. You use it to lift and reseat BGA and SMD chips on mobile phone motherboards. It does one job: controlled hot air. It does not include a soldering iron, so you pair it with a separate iron for pad cleaning and jumper lagana. If your shop handles dead phone and hardware fault jobs every day, this unit anchors your rework corner.

How the 600W Hot Air Gun Performs

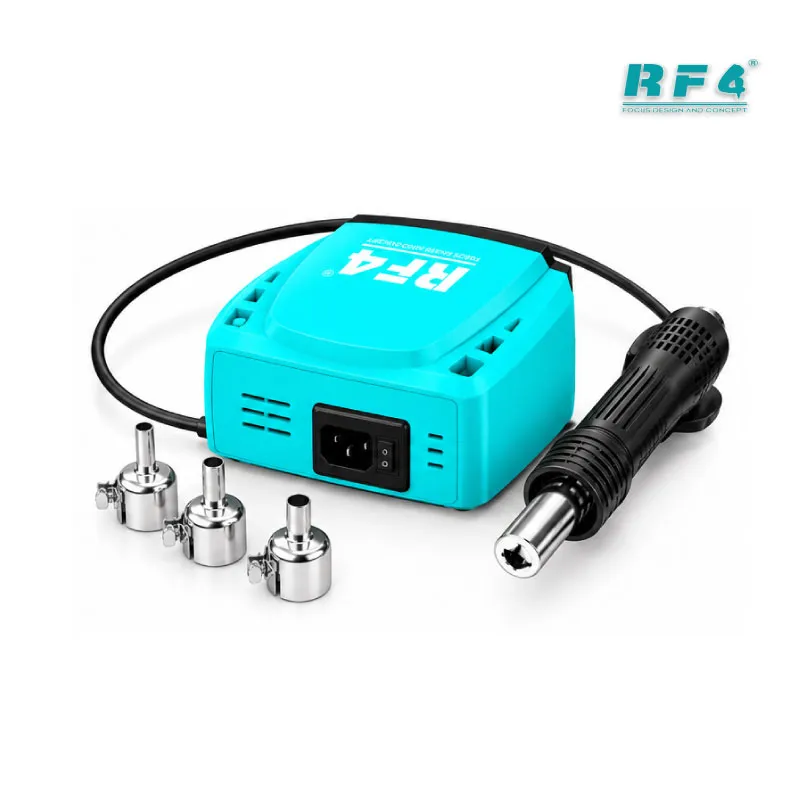

The RF-H6 delivers 600W through a separate hot air gun handle. That output suits board-level work, where you heat one small zone instead of the whole board. The gun uses a straight air outlet with a spiral guide, so the stream leaves the nozzle evenly. Even airflow heats the chip across its full footprint instead of cooking one corner. The design also keeps noise low, which matters when you run the station for hours in a small workshop.

You hold the handle upright, keep a steady distance above the chip and let the heat work. Technique matters more than raw power. A controlled 600W gives you room to build that technique without rushing a joint.

Touch Control and Digital Display

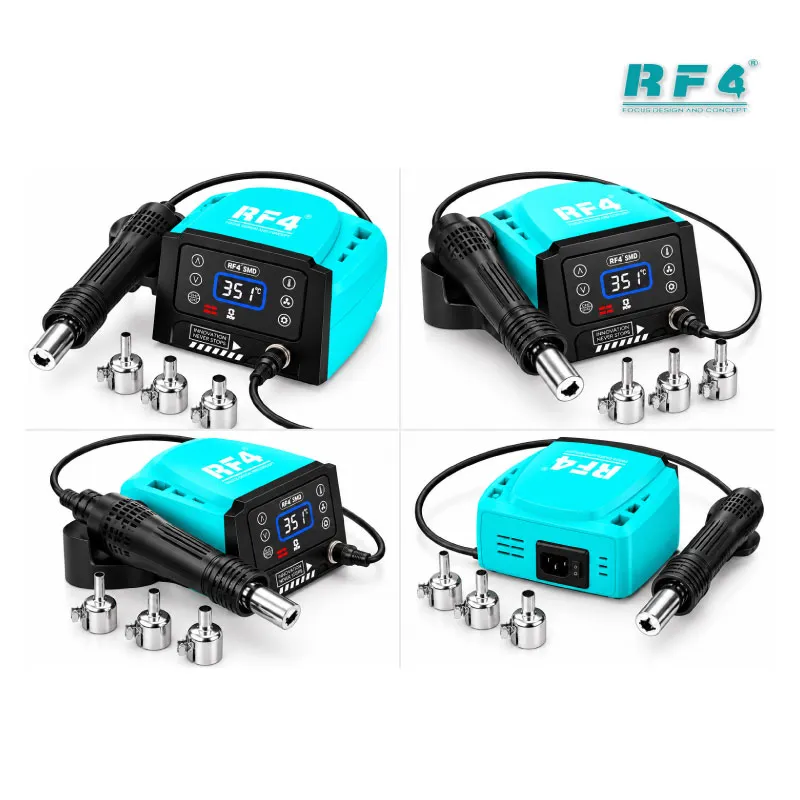

The RF-H6 puts its controls on a touch panel. You change the temperature with a tap instead of turning a worn knob. The large digital display shows the temperature in real time, so you read the number at a glance and keep your eyes on the board.

This matters on a busy bench. You move between a small charging IC and a larger eMMC chip within the same hour, and each needs a different setting. A clear display lets you change the setting fast and confirm it before the gun touches the board. You stop guessing and start repeating results.

Temperature Range for Leaded and Lead-Free Work

The airflow temperature range runs from 150°C to 500°C. Leaded solder melts well below the top of that range. Common lead-free alloys such as SAC305 melt around 217°C, so the range also covers lead-free boards from newer phones.

Low settings help you with plastic connectors, flex sockets and heat-sensitive parts near the chip. High settings help you with larger shielded areas and stubborn ground pads. Preheat the surrounding area first, then raise the temperature in steps. Slow, staged heat protects the board and lifts the chip cleanly.

Where It Fits in Your Repair Workflow

The RF-H6 sits at the rework stage of the PCB repair process. You diagnose the fault first with a multimeter and a test box, then decide whether a chip needs to come off. Typical jobs include IC change karna on a charging circuit, eMMC replacement after a dead after flash fault, and CPU lifting on a board that stays dead.

On the software side, you often reach the hot air stage after ISP pinout work fails to revive a phone. A damaged eMMC or UFS chip needs replacement before any box chalana or software marna makes sense. The RF-H6 handles the hardware step, and your programmer handles the data.

Building a Complete Rework Bench Around the RF-H6

Hot air alone does not finish a repair. Add a soldering station for pad cleanup and jumper wires. Mount the board in a PCB holder so it stays flat while you heat it. Use a microscope to check pads, ball alignment and bridges before and after the job.

For BGA work, keep a reballing kit within reach. Stencils and flux restore the solder balls before you reseat a chip. Check continuity with a multimeter after the board cools. If you start with basic repairs and move toward eMMC and UFS work, the RF-H6 grows with you, and ISP pinout tools and eMMC programmers extend the same bench.
