RF4 RF-DA8 3-in-1 Phone Disassembly Tin Scraping Blade

RF4 RF-DA8 Phone Disassembly Blade for Clean Screen Separation

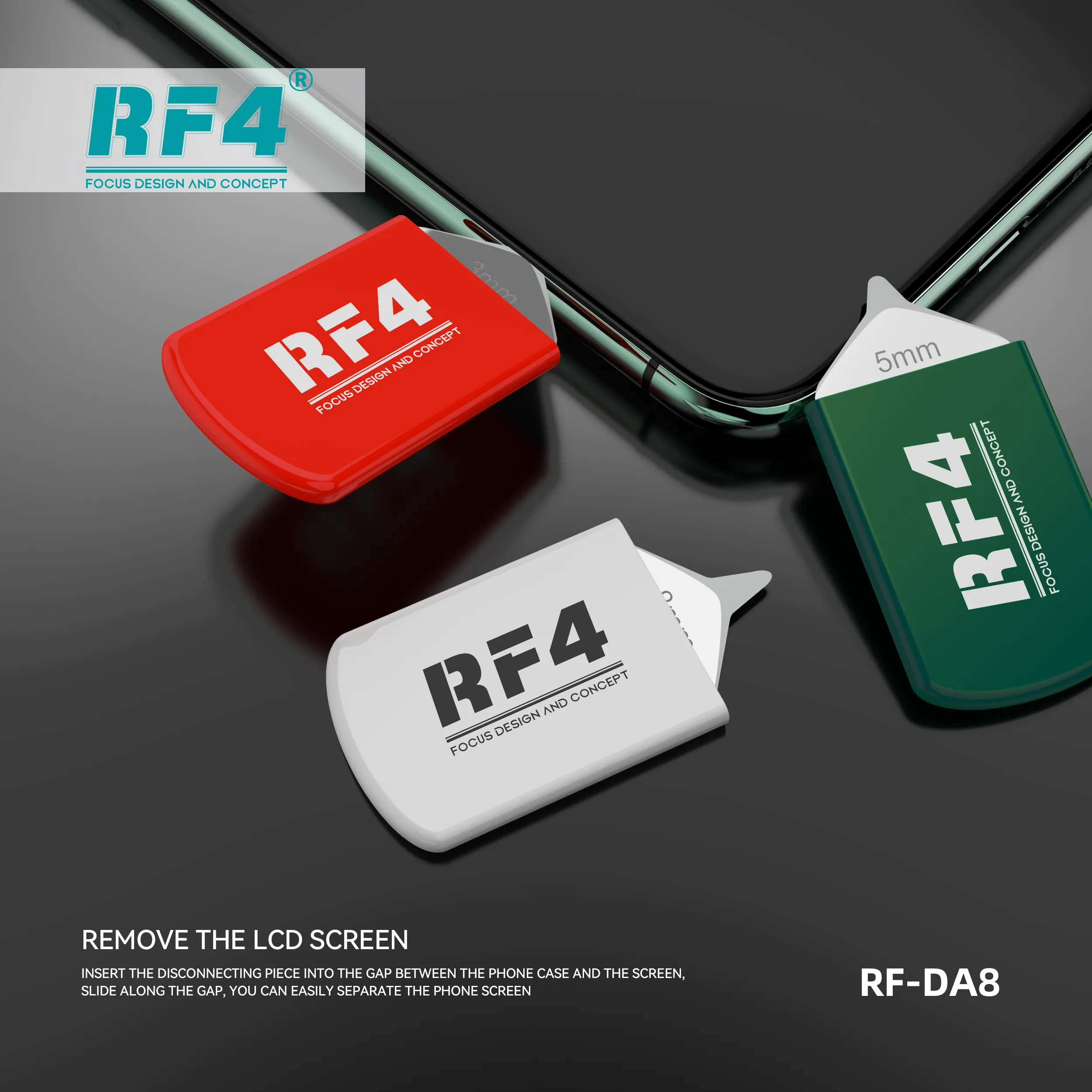

The RF4 RF-DA8 is a 3-in-1 phone disassembly blade for two jobs that sit at opposite ends of a repair: opening a glued display and scraping tin during rework. One compact tool covers both. You insert the thin edge into the gap between the phone frame and the screen, slide it along the adhesive line, and the panel separates without levering force on the glass. For a bench that handles display problem jobs and board work every day, this phone disassembly blade removes one more tool change from your workflow and keeps the opening stage controlled.
Where the RF-DA8 Fits in Your Repair Workflow
Disassembly comes first in almost every hardware fault job. A charging issue, a network issue, or a dead phone still needs the display or back cover off before you reach the board. The RF-DA8 handles that opening stage. Once the board is out and you move to IC change karna or CPU reballing, the same blade works as a tin scraper over the stencil. You spread solder paste, pull it flat across the holes, and clear the excess from the stencil surface. That dual role keeps the tool on the mat for the full job instead of going back into the drawer after the screen comes off.
Blade Material and Handle Control

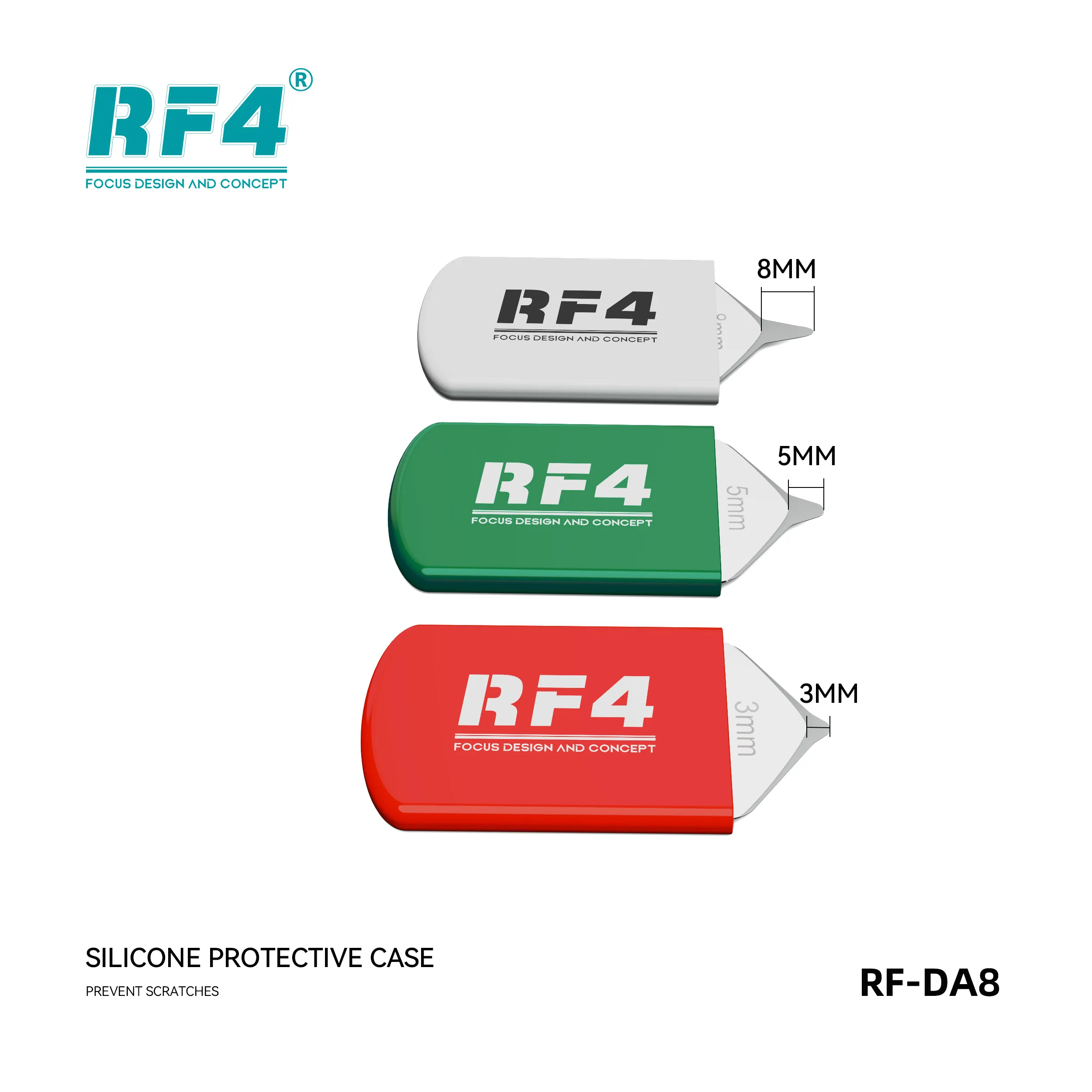

RF4 builds the blade from a high-toughness material with rebound capability. It flexes under load and returns to shape instead of taking a permanent bend after a tight corner. That matters around curved edges and narrow bezels, where a stiff blade cracks glass and a soft blade folds. The silicone handle gives a firm, comfortable grip and protects your hand during long sessions. Control comes from the handle, not from force on the edge. You feed the blade into the adhesive gap with short, measured strokes and keep full feel of the cut.
Screen Separation Blade Technique That Protects the Panel
Display opening causes most panel damage on the bench. Too much force at one point lifts the polarizer, cracks an OLED layer, or tears a display flex. The RF-DA8 avoids that by working the adhesive line gradually. Start at a corner, slide along the seam, and let the edge cut the glue instead of prying the glass upward. Soften the adhesive first with a Hot Air Station or a heating platform, and the screen releases cleanly in one pass. Keep the blade angle low and shallow near the flex side, and work slowest where the display connector sits.
Tin Scraping Blade Use During Reballing

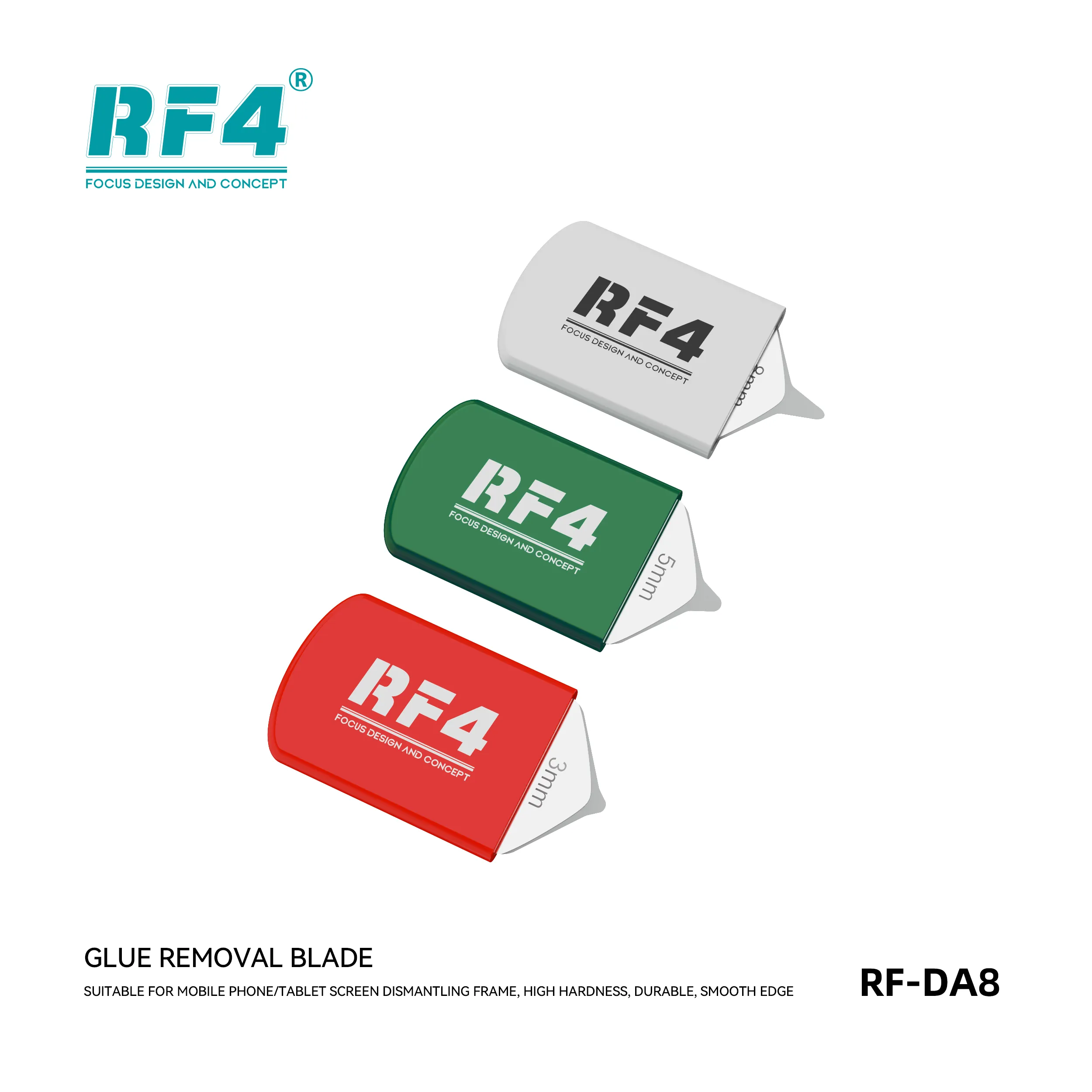

At the board stage, the RF-DA8 switches role. Fix the board in a PCB Holder, place the stencil over the chip, and use the blade edge to press and level solder paste across the openings. A flat, even scrape gives uniform balls after heating, which cuts down on bridged pads and failed reflows. Work under a Microscope for small stencils on PMIC, eMMC, and CPU packages, and you get the precision this step needs. The same blade also lifts old adhesive residue and cleans glue traces from the frame before you fit a new display.
Building Your Bench Around the RF-DA8
The RF-DA8 suits technicians who want one compact blade for opening and rework rather than a full kit. Keep it next to your Reballing Kits, Soldering Stations, and precision tweezers so every stage of the job stays within reach. If your daily work includes frequent middle frame separation and tin planting on several stencil sizes, the RF4 RF-DA12 blade set adds four dedicated blade types for glue removal, frame separation, disassembly, and tin planting, and serves as the natural upgrade path. For a single, reliable phone disassembly blade that handles both ends of the repair, the RF-DA8 does the job.
