RF4 RF7050 Pro Max 7-50X Trinocular Stereo Microscope

RF7050 Pro Max Trinocular Microscope for Mobile PCB Repair

The RF7050 Pro Max trinocular microscope gives you a 7X to 50X continuous zoom view of the board. You see lifted pads, broken tracks, and bad solder joints before you reach for the hot air gun. A dead phone rarely shows its fault to the naked eye. This microscope does. The head swivels 360 degrees on a 45-degree incline, so you work from any side of the motherboard in a comfortable posture.

Optical Specs You Work With

The head covers 7X to 50X in one continuous sweep. WF10X/22mm eyepieces pair with a 0.7X to 5.0X objective range. The trinocular port takes a 0.5X C-mount adapter, so a camera or HDMI monitor shows the same image your eyes see. Zoom stays synchronized between the eyepieces and the screen. You show a customer the fault, or record a repair, without switching setups. The ergonomic eye-mask design blocks stray light and reduces fatigue across long sessions.

6-Gear Zoom Lock Knob

The mechanical gear lock stops the zoom at six fixed magnification steps. You land on the same multiple every time. Use a low gear to scan the whole board for the hang on logo fault area. Switch to a high gear for pad-level checks on a reballed IC. You stop hunting for focus every time you change step. That saves minutes on every board, and those minutes add up across a busy workshop day.

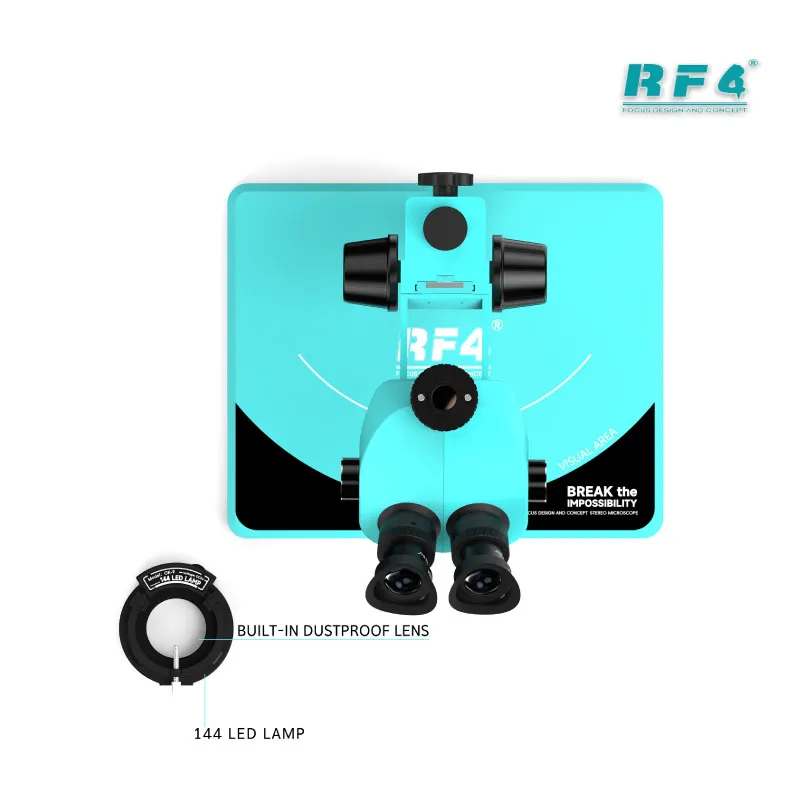

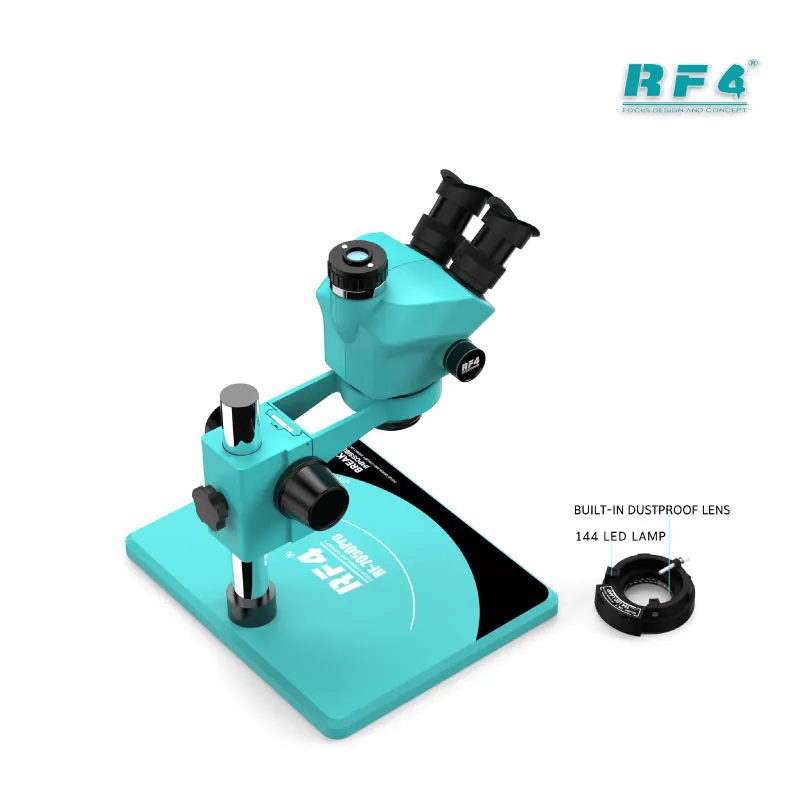

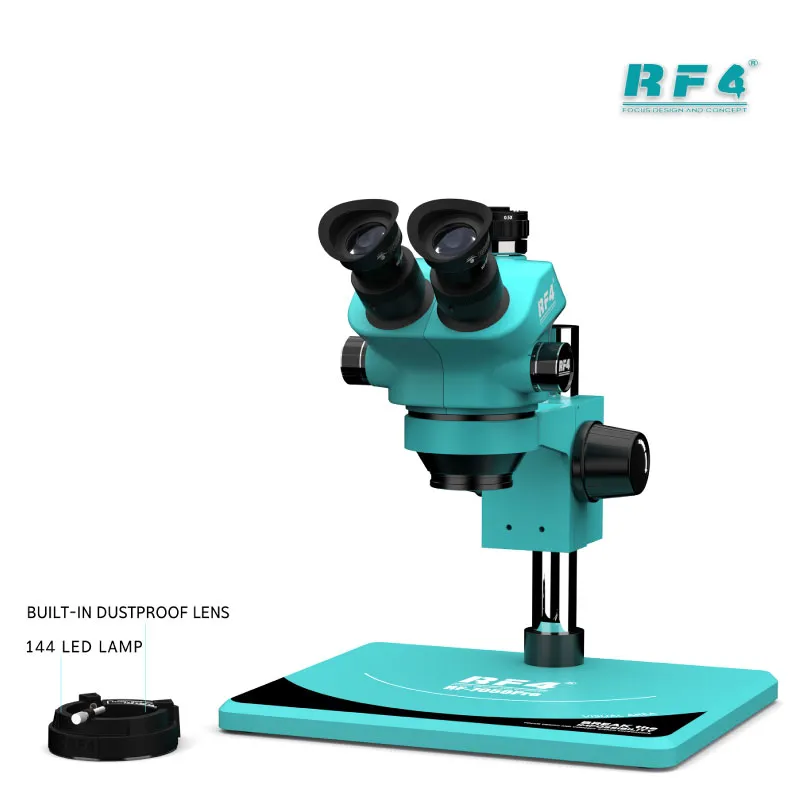

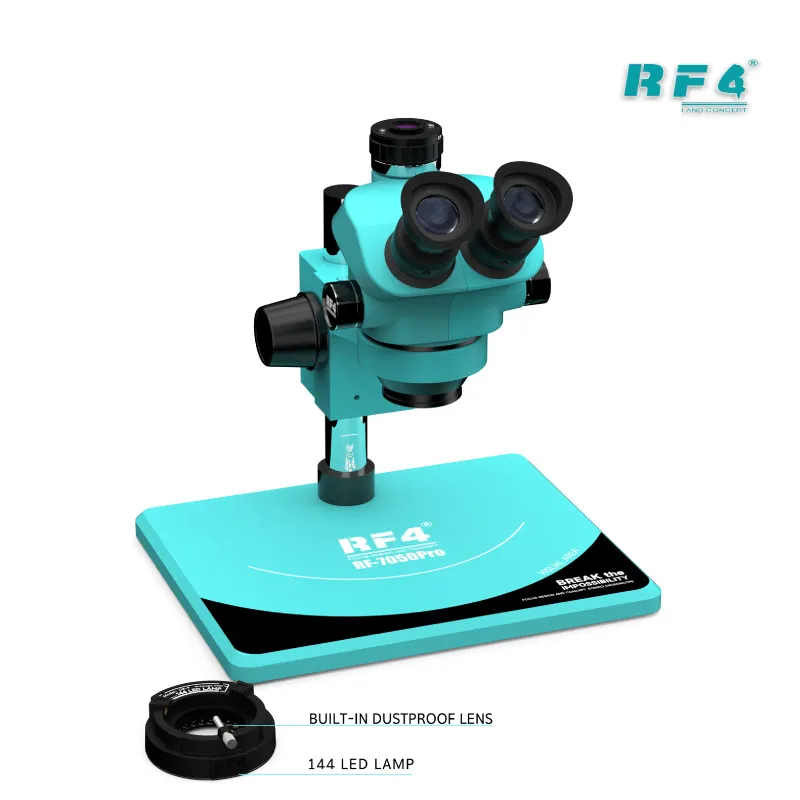

144 LED Ring Light and Support Stand

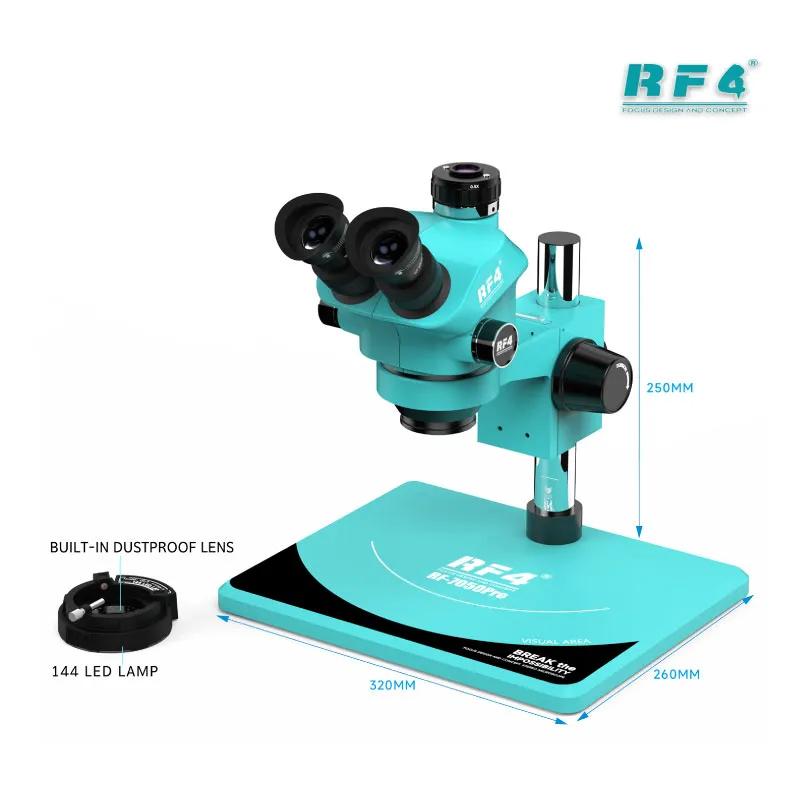

The 144 LED ring light gives even white light with a 60mm inside diameter. It runs on AC 100–240V 50/60Hz input and delivers DC 12V at a maximum of 700mA. Shadows disappear around BGA edges and shielded areas. The stand uses a Φ32mm column and a Φ76mm lens aperture. The lifting range is 50mm. You get enough headroom to fit a PCB holder, a fixture, or a tall board shield under the lens.

Where It Fits in Your Repair Workflow

Start with diagnosis. Inspect charging port pins, flex connectors, and corroded pads after liquid damage before you apply any heat. A charging issue or display problem often traces back to one bent pin or one burnt track that only magnification reveals. During IC change karna, watch solder flow and IC alignment under zoom while your hot air station or soldering station does the work. After reballing, check every ball and every bridge before you refit the chip. For eMMC and UFS ISP work, solder your fine wires to the ISP pinout points under high zoom. Then connect your test box or programmer, start box chalana, and confirm the read. Keep your multimeter nearby for continuity checks after jumper lagana on a broken track.

Why Technicians Choose This Setup

You get a specialist inspection tool, not a hobby scope. The 7X to 50X range matches the scale of phone board components. The trinocular head lets you add a camera now or later. The gear lock keeps your magnification repeatable between boards. The ring light keeps your view clean on dense boards. If your current setup relies on a magnifier lamp, this microscope moves your bench to a higher accuracy level. Pair it with a quality reballing kit and a stable PCB holder, and you build a complete micro-soldering station.
