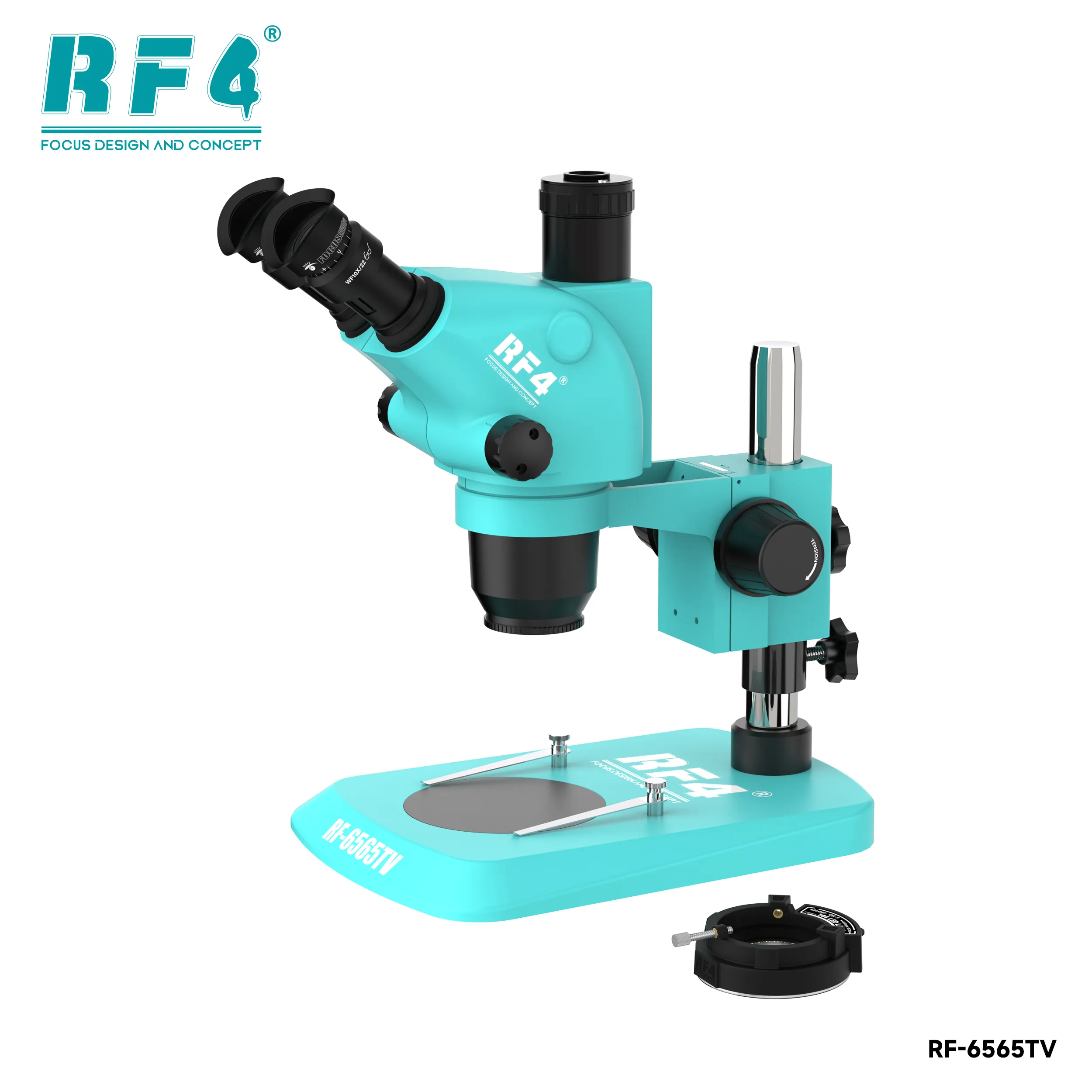

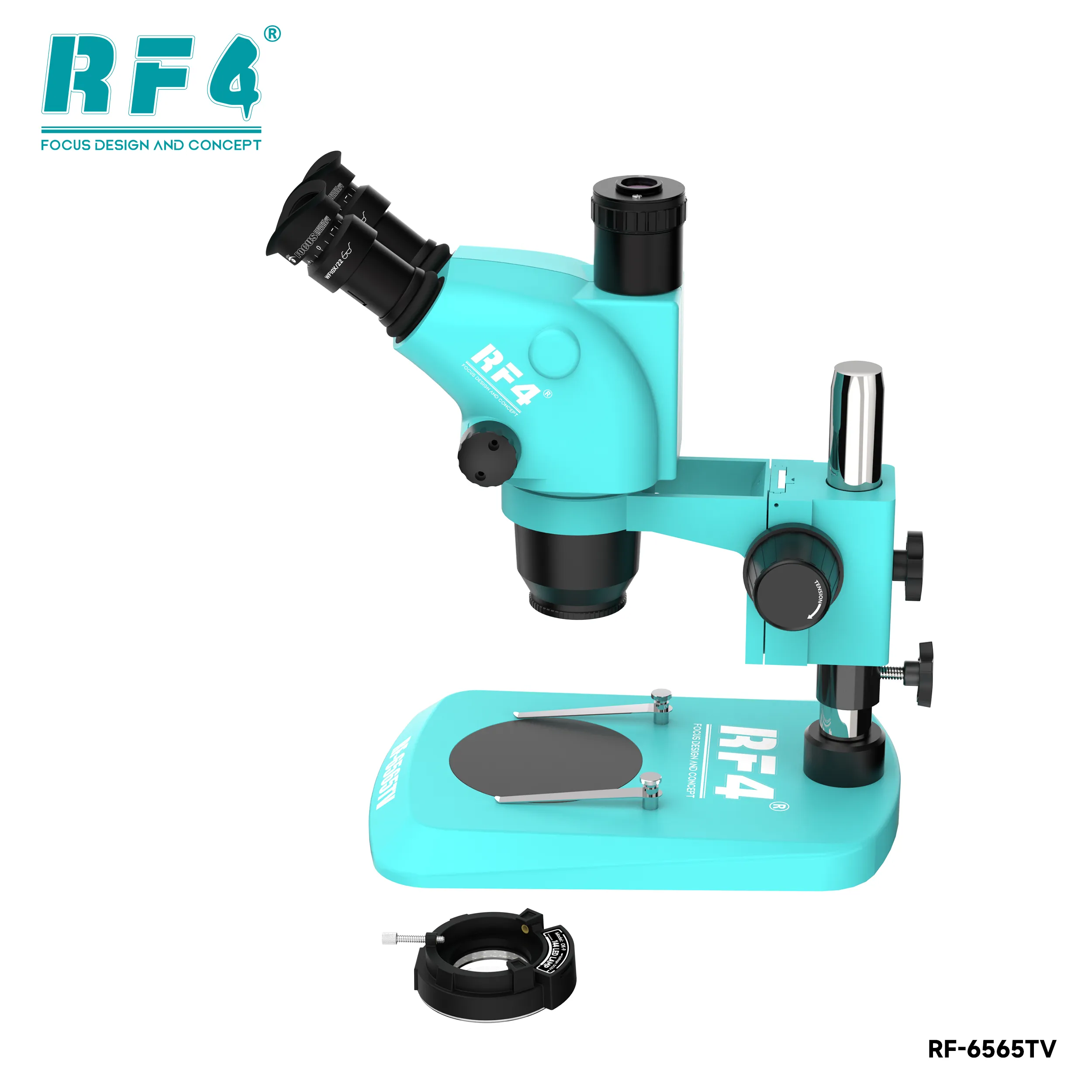

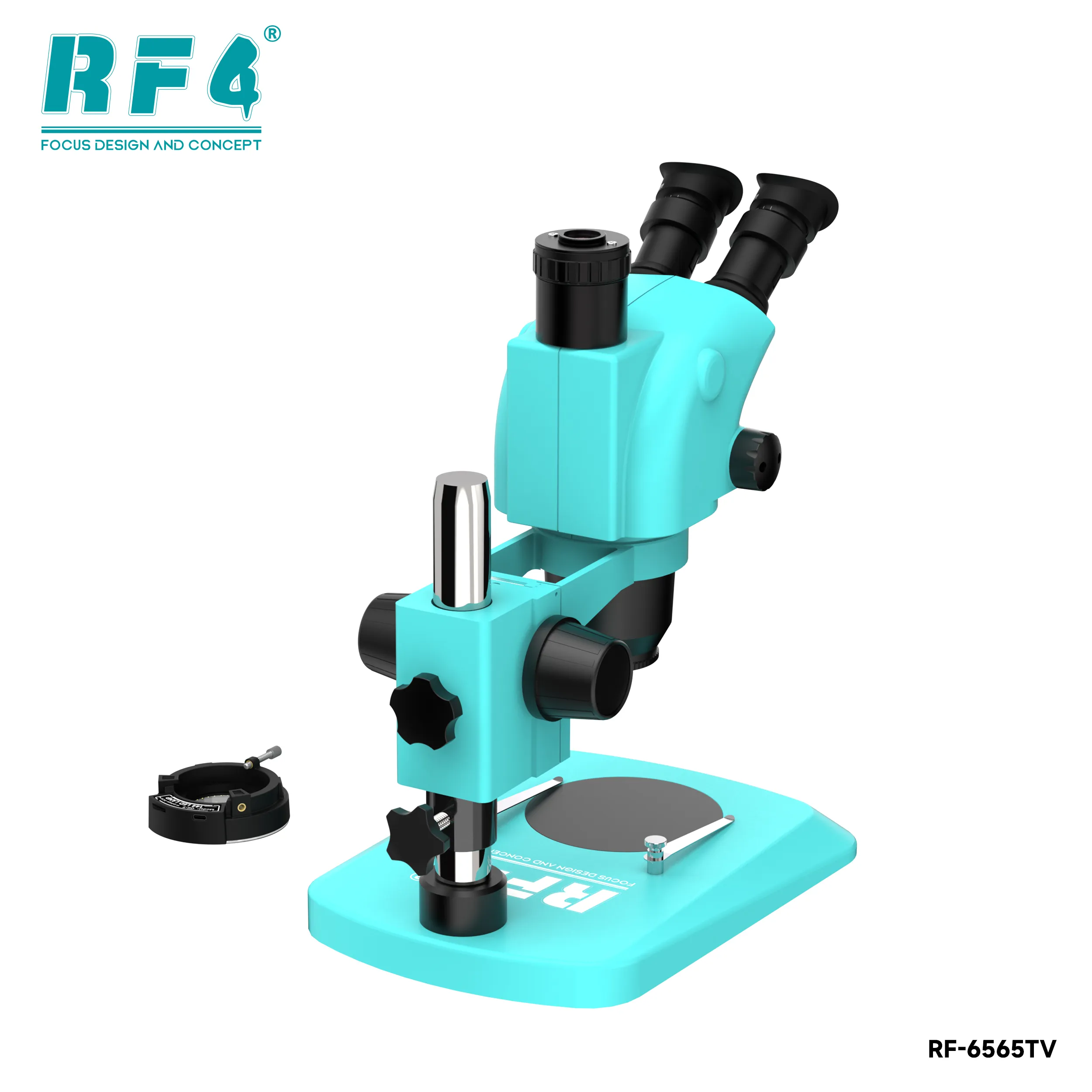

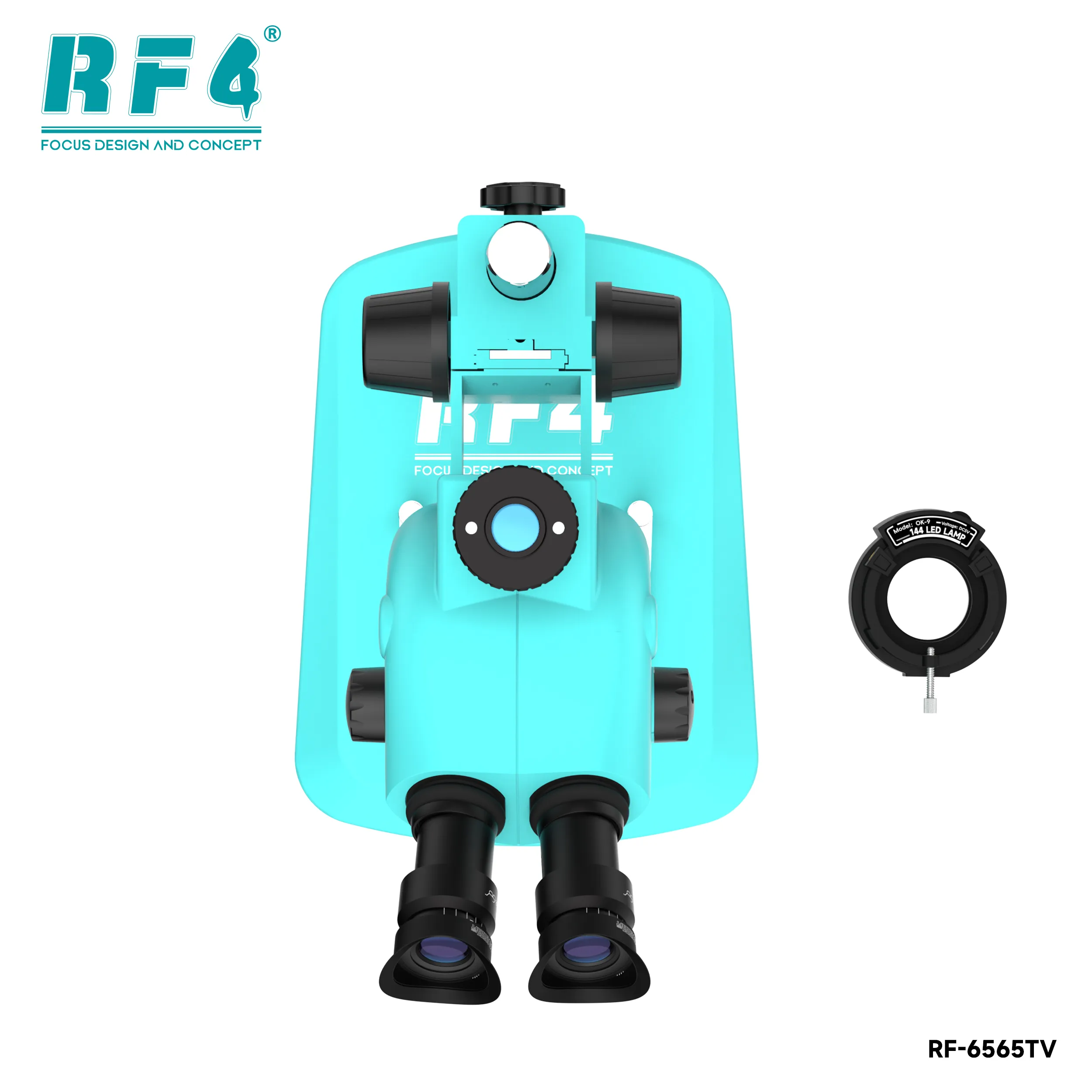

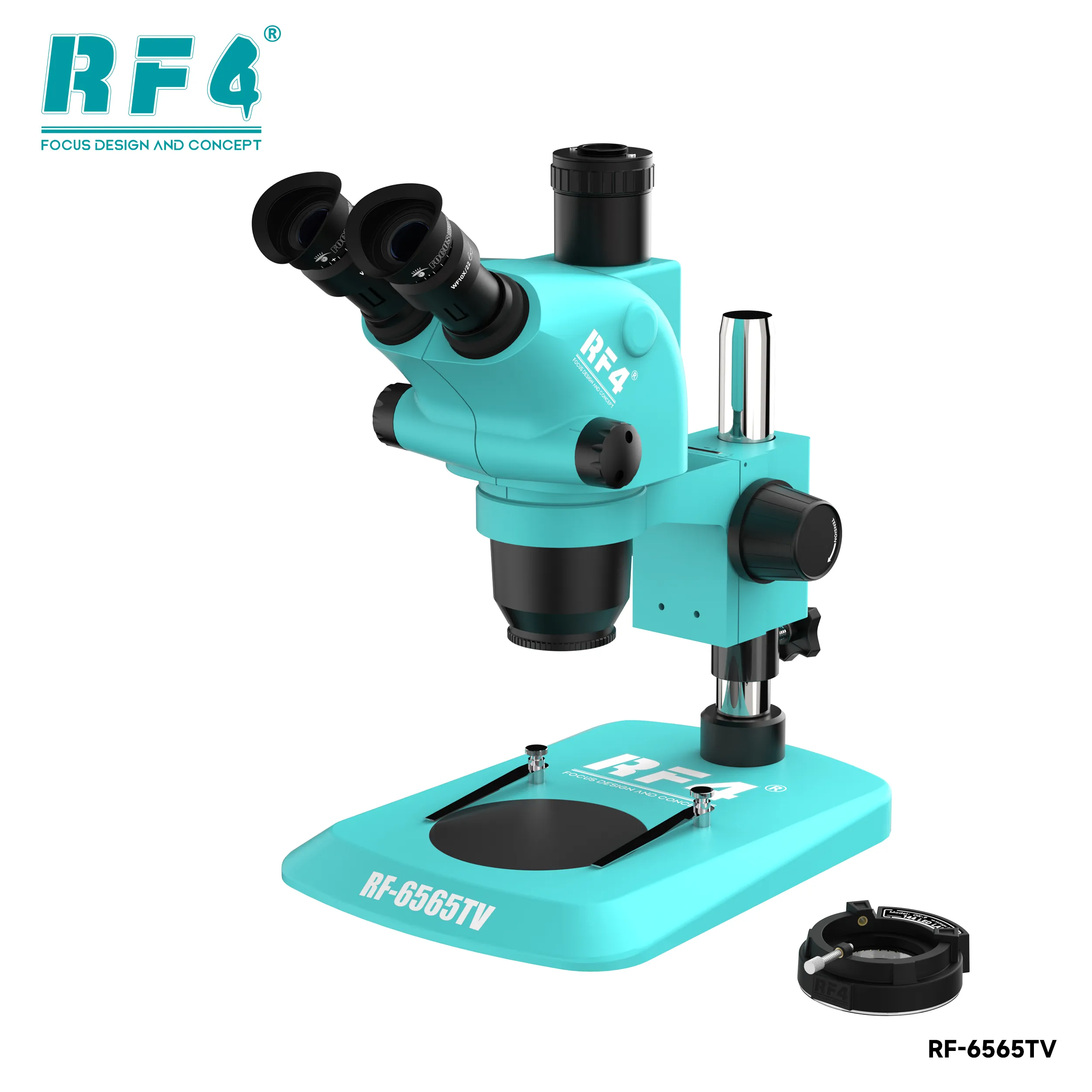

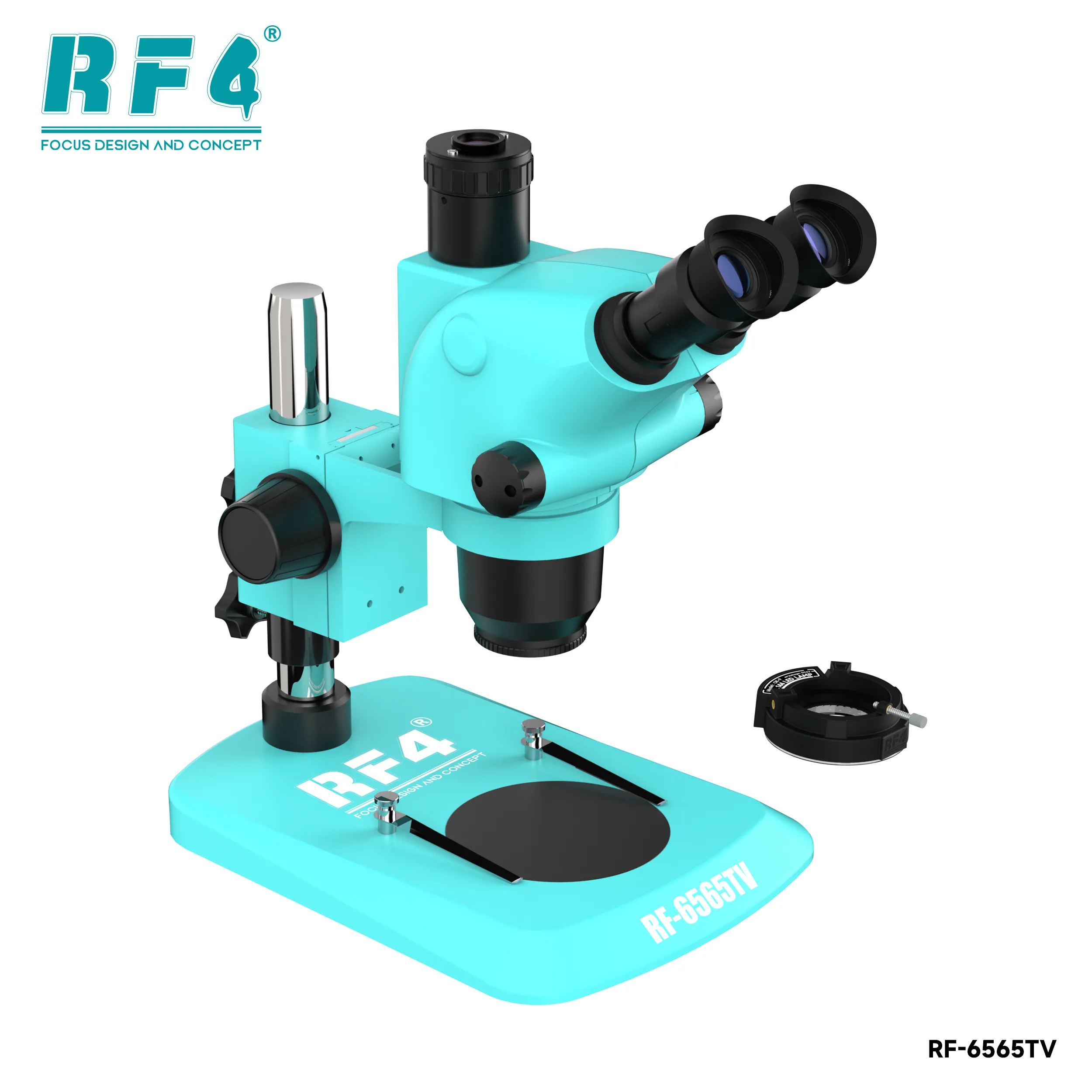

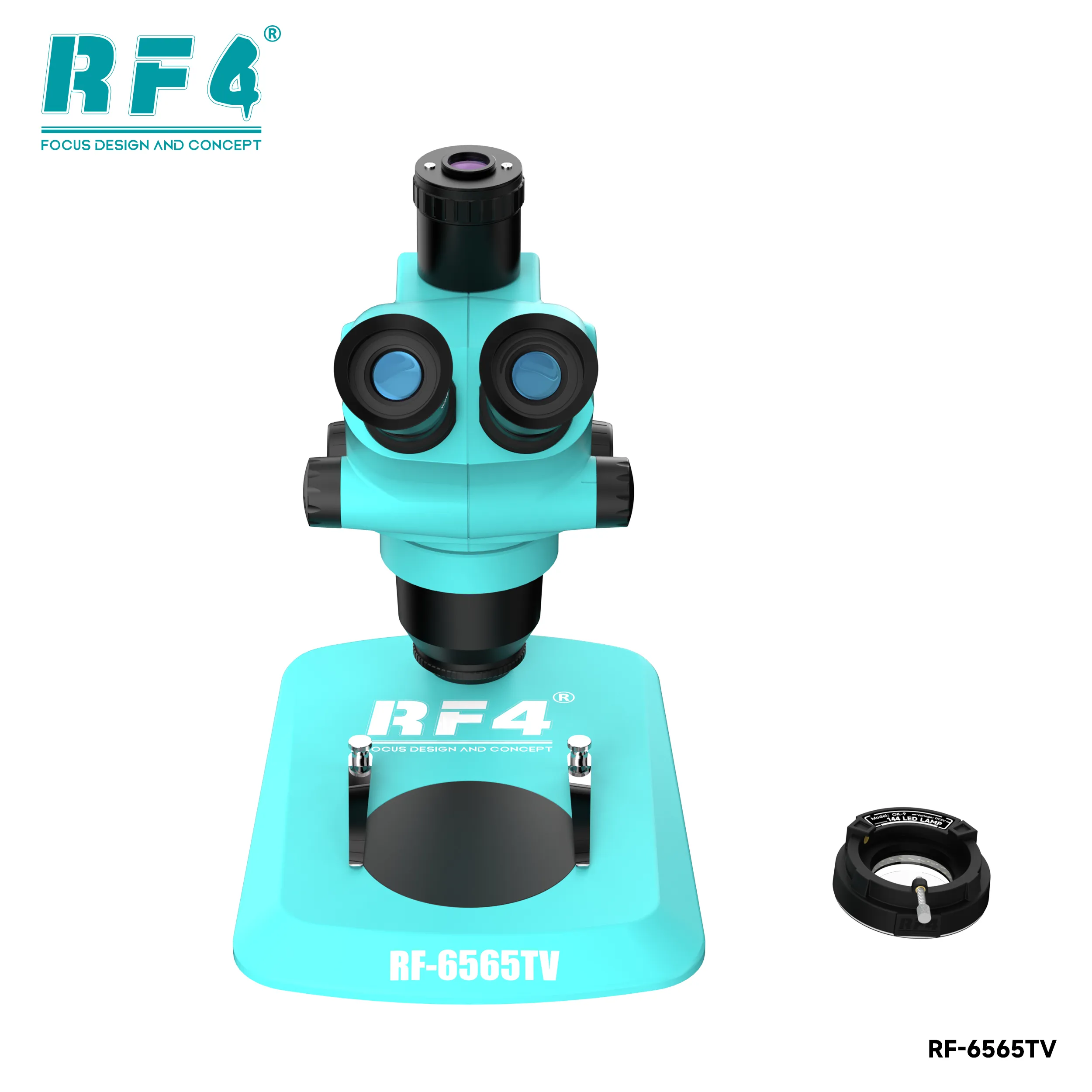

RF4 RF6565TV 6.5X-65X Trinocular Stereo Microscope

Professional Trinocular Stereo Microscope for Board-Level Repair

The RF4 RF6565TV is a professional trinocular stereo microscope built for the bench where phone boards get fixed. It gives you 6.5X to 65X continuous zoom, a swiveling trinocular head and a camera port, so you inspect, record and repair under one setup. You reach for it when a dead phone needs a closer look at a BGA joint, a lifted pad or a burnt capacitor.

Optics and Zoom Range

The RF6565TV zooms continuously from 6.5X to 65X, so you never swap objectives mid-repair. Start wide to find the fault area on the board, then zoom in on a single ball row or a hairline track. The WF10X/22mm high-eyepoint eyepieces give a large field of view, and rubber eye guards keep stray light out during long sessions.

The lens carries FMC anti-reflection coating on a 25mm diameter for clear imaging without vignetting. The head sits at a 45-degree incline and swivels 360 degrees, which lets you share the bench with a second person. Interpupillary distance adjusts from 54mm to 76mm, so different technicians set it to their own eyes in seconds.

The effective working distance is 100mm. That gap holds a hot air nozzle, tweezers and a soldering iron without you bumping the lens. An auxiliary objective stretches the working distance from 30mm to 287mm when you need more clearance.

Trinocular Port and Camera Workflow

The third tube takes a 1/2 CTV adapter, so you mount a compatible camera and send the live image to a monitor. Technicians use this to record a reballing job, compare a board before and after repair, or show a customer the real hardware fault instead of explaining it.

The package includes a 0.5X or 0.7X zoom lens, and you pick one when you order. Match the lens to your camera sensor and monitor size. A camera is not part of the base microscope, so budget for one if you want screen-based work. Watching a monitor instead of the eyepieces also reduces neck and eye strain on a full repair day.

Stand, Base Plate and LED Lighting

The focusing arm lifts the head through a 50mm range, and you adjust the handwheel tension to stop the head drifting down. A height-limiting fixed shaft locks the working height, so the head returns to the same position every time and you avoid crashing the lens into a hot board.

The metal base measures 195 x 256 x 20 mm. It gives you room for a phone board and a small tray, which stops tiny screws and shields from rolling off. The LED ring light has a 60mm inner diameter, runs on AC 90–240V, draws 4.5W and gives white light with adjustable brightness. Shadow-free light matters when you read part markings on a small IC.

Where It Fits in Your Repair Workflow

Place the microscope at the centre of your PCB repair bench. You check the board first: look for corrosion, a swollen charging IC, a bent FPC connector or a broken jumper track. You then work with your hot air station and soldering station under the same view.

Typical jobs include IC change karna on charging and power ICs, jumper lagana on damaged tracks, and checking eMMC or UFS solder balls when a phone hangs on logo or dies after flash. Pair it with a reballing kit and a PCB holder for stencil alignment. Use your multimeter and ISP pinout tool to confirm the fault, then use the microscope to confirm the result. A display problem often traces to a damaged FPC pad, and 65X shows that damage clearly.

Why Technicians Choose the RF6565TV

A binocular microscope shows the board but gives you no way to record it. The trinocular head solves that without changing your bench layout. You step up from a magnifying lamp to a real zoom microscope, and you keep the same stand if you add a better camera later.

Repair shop owners get a second benefit: a trainee watches the monitor while you work, so you teach board-level repair without leaning over a shoulder. For technicians who spend most of the day on BGA, charging port and IC work, the 6.5X–65X range covers nearly every board-level inspection a mobile repair shop runs. RF4Tools Pakistan stocks it for workshops that want a specialist optical tool rather than a general-purpose scope.
