RF4 RF-6565 Pro Plus Trinocular Stereo Microscope

Professional Trinocular Stereo Microscope Built for Mobile Board Repair

The RF4 RF-6565 Pro Plus is a professional trinocular stereo microscope for bench-level mobile repair. It zooms from 6.5X to 65X, so you move from a full-board scan to a single 0201 pad without swapping optics. The 45-degree trinocular head, 144-LED ring light and alloy base keep long sessions steady. If your bench handles dead phone boards and IC change karna jobs every day, this scope fits the work.

Optical Head and Zoom Range

The head uses a 0.65X–6.5X objective with WF10X/22mm eyepieces. Total magnification runs from 6.5X to 65X in one continuous zoom. Low zoom shows the full IC area, shield cans and flex connectors. High zoom shows pad damage, flux residue and hairline trace cracks. The head tilts 45 degrees and rotates 360 degrees, so a second technician can view the board without moving the stand. The trinocular port carries a camera while your eyes stay on the eyepieces.

Synchronous Display Output

The 0.5X CTV adapter connects a camera to the third port. The monitor and the eyepiece zoom together, so the screen always matches what you see through the lenses. You focus the camera image manually through the adapter ring. The adapter is all metal: an aluminum alloy body with a chrome-plated copper bayonet. A standard C-mount camera fits the port. This setup suits service centers that train new technicians, and it lets you record a repair step for a customer or a team member.

Lighting and Dust Protection

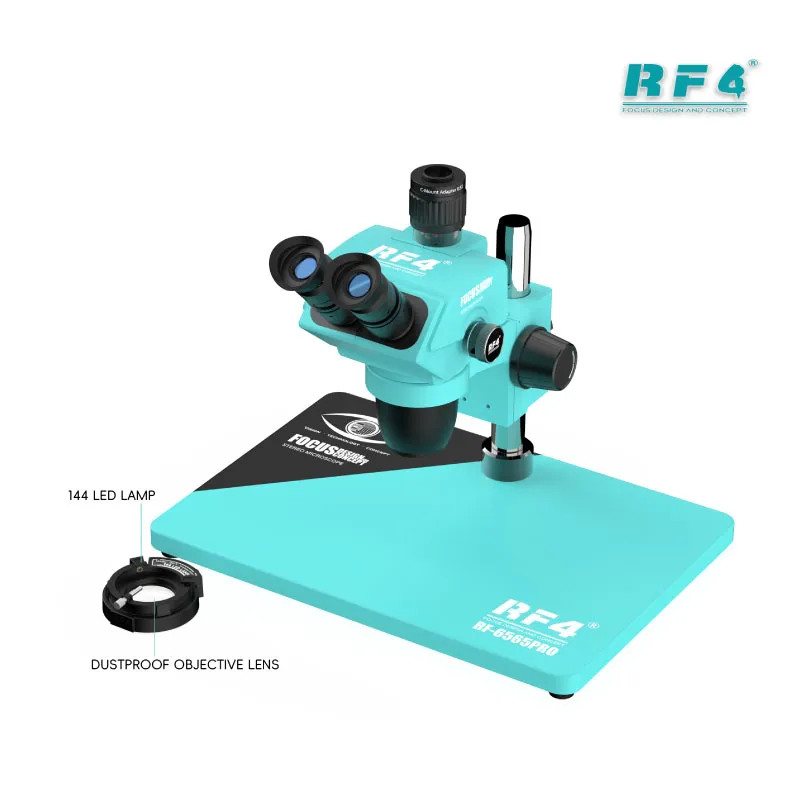

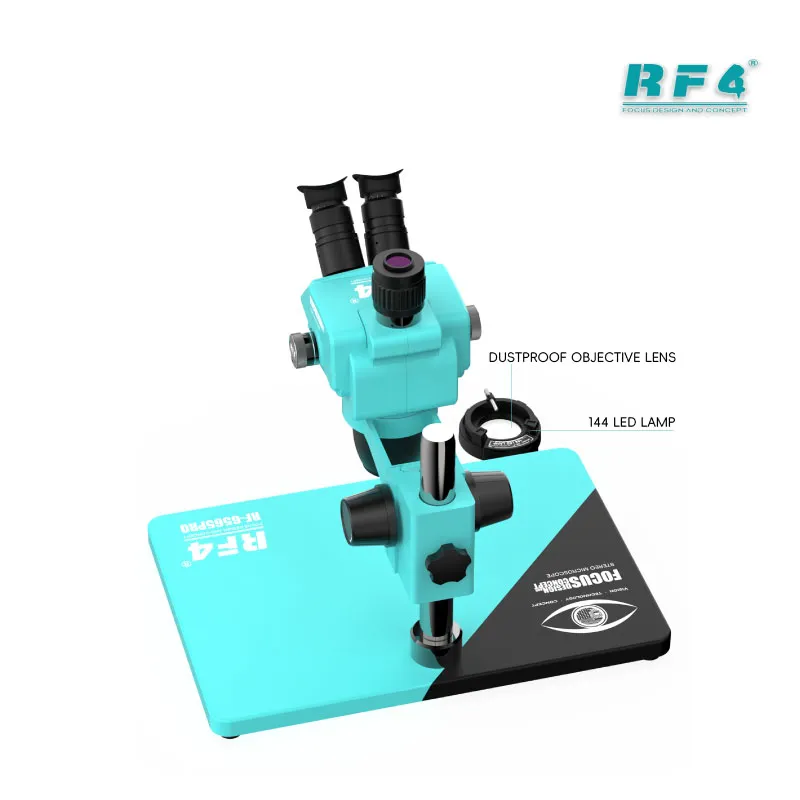

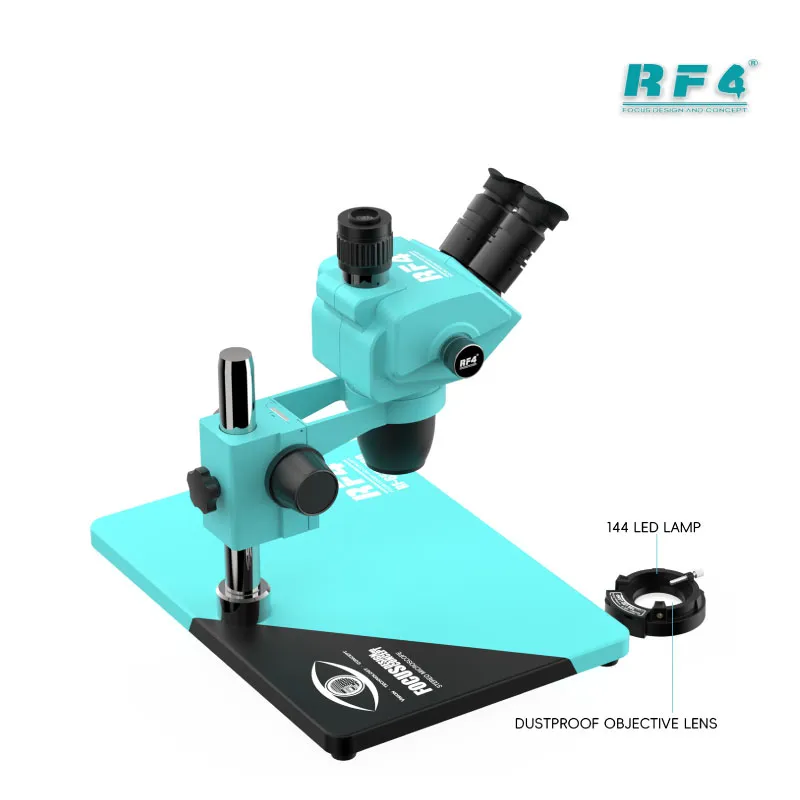

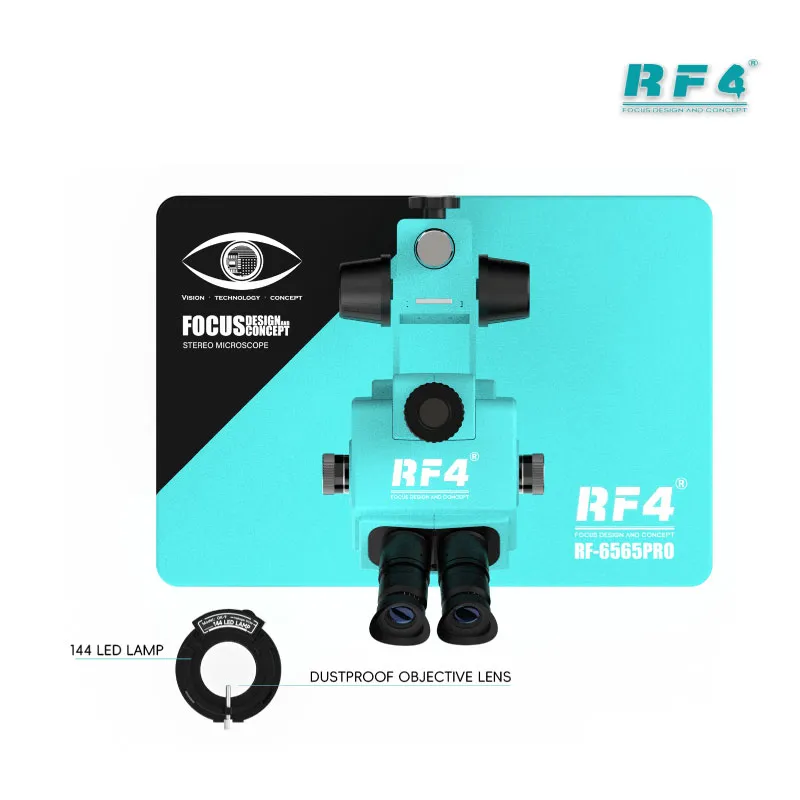

The ring light carries 144 white LEDs with brightness you adjust by hand. Even light removes shadows around tall components, so you read part markings and solder joints without tilting the board. The light draws AC 100–240V at 50/60Hz and outputs DC 12V at a maximum of 700mA. That range covers Pakistani mains without a converter. A dustproof lens structure shields the optics from flux fumes and workshop dust. Clean optics keep the image sharp through months of daily use.

Stand, Base and Bench Ergonomics

The column measures Φ32mm and the lens holder measures Φ76mm. The center distance is 155mm and the lifting range is 50mm. The aluminum alloy base gives you a flat, rigid platform, so the image stays steady while you work. Place your PCB holder on the base and lock the focus. A tall hot air station nozzle or soldering iron then clears the lens with room to spare.

Repair Workflow Fit

You use this scope before, during and after every board job. Start with inspection: look for corrosion, burnt pads and lifted components on a dead phone or a charging issue board. Switch to mid zoom for hot air work and jumper lagana, where one slipped wire shorts a line. Go to 40X–65X for reballing checks on CPU, eMMC and UFS packages. After reflow, scan every joint for bridges and cold solder. Faults such as hang on logo, network issue and display problem often trace back to a hardware fault you only see under magnification. Pair the scope with a hot air station, a soldering station, a reballing kit, a multimeter and PCB holders for a complete bench.

Why Technicians Choose This Scope

Repair shops pick this model for its full-metal build, synchronous screen zoom and wide 22mm field. The wide field lets you hold a whole IC area in view at 30X. That cuts the head movement that tires your neck during a long BGA job. The camera port turns the same scope into a training and documentation tool. Workshops running several benches get one consistent viewing standard across all stations. Keep spare 48mm auxiliary objective lenses on hand if you need a longer or shorter working distance.
