RF4 RF-2KDMM 2K Microscope Camera Multimeter

Professional Microscope Camera With Multimeter for PCB Repair

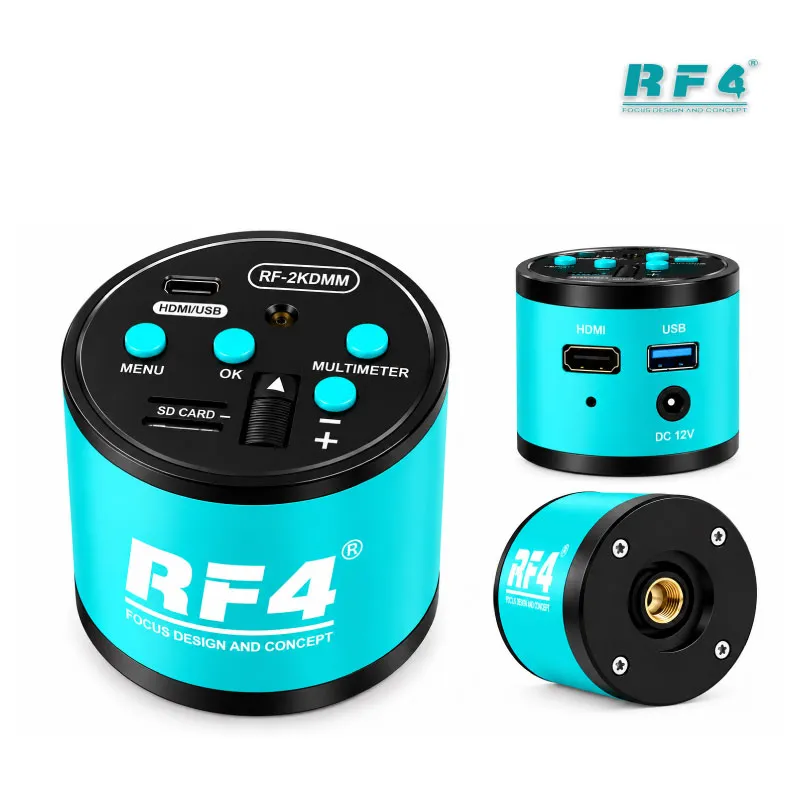

The RF4 RF-2KDMM combines a 2K industrial microscope camera with a built-in multimeter interface. You inspect a joint and measure it without looking away from the screen. This professional microscope camera with multimeter cuts out the switch between the eyepiece and a separate meter. It suits dead phone diagnosis, short hunting and BGA joint checks.

Image Quality You Can Trust at the Bench

The camera uses a 1/2.8 inch 2K CMOS sensor with 2µm x 2µm pixels. Effective resolution is 1920 x 1080 at 60 frames per second. HDMI output reaches 2K at 60 fps. Video recording supports 4K at 25 fps, 1080P at 30 fps and 720P at 60 fps. You get clean detail on tiny SMD parts, cracked pads and flux residue.

Multimeter Function Built Into the Live View

Connect the multimeter function cable and the reading appears in the lower right corner of the display. The camera detects resistance, voltage, diode, capacitance and frequency. You probe a capacitor on a charging issue board and see the value next to the component. This saves time on hardware fault tracing. A technician doing IC change karna can confirm a clean joint, then test the line straight away.

Controls for Comparison and Documentation

Zoom runs from 1X to 16X. You freeze the full screen or split it left and right, up and down, or into quarters. Use this to compare a good board against a faulty one. Eight grid groups let you adjust position, colour and thickness, which helps with alignment during reballing. Exposure, white balance, contrast, saturation and sharpness all have manual adjustment. The menu supports English, Simplified Chinese and Traditional Chinese.

Why Repair Shops Pick This Camera

You mount it on a trinocular stereo microscope and keep your normal bench layout. One screen shows the board and the measurement. That helps in training sessions too, because a junior technician watches every step on the monitor. RF4 builds the RF-2KDMM for repair shops that want inspection and testing in one workflow.
