RF4 BL05 0.5X Objective Lens with Built-in LED Light

0.5X Microscope Auxiliary Objective Lens for Board-Level Repair

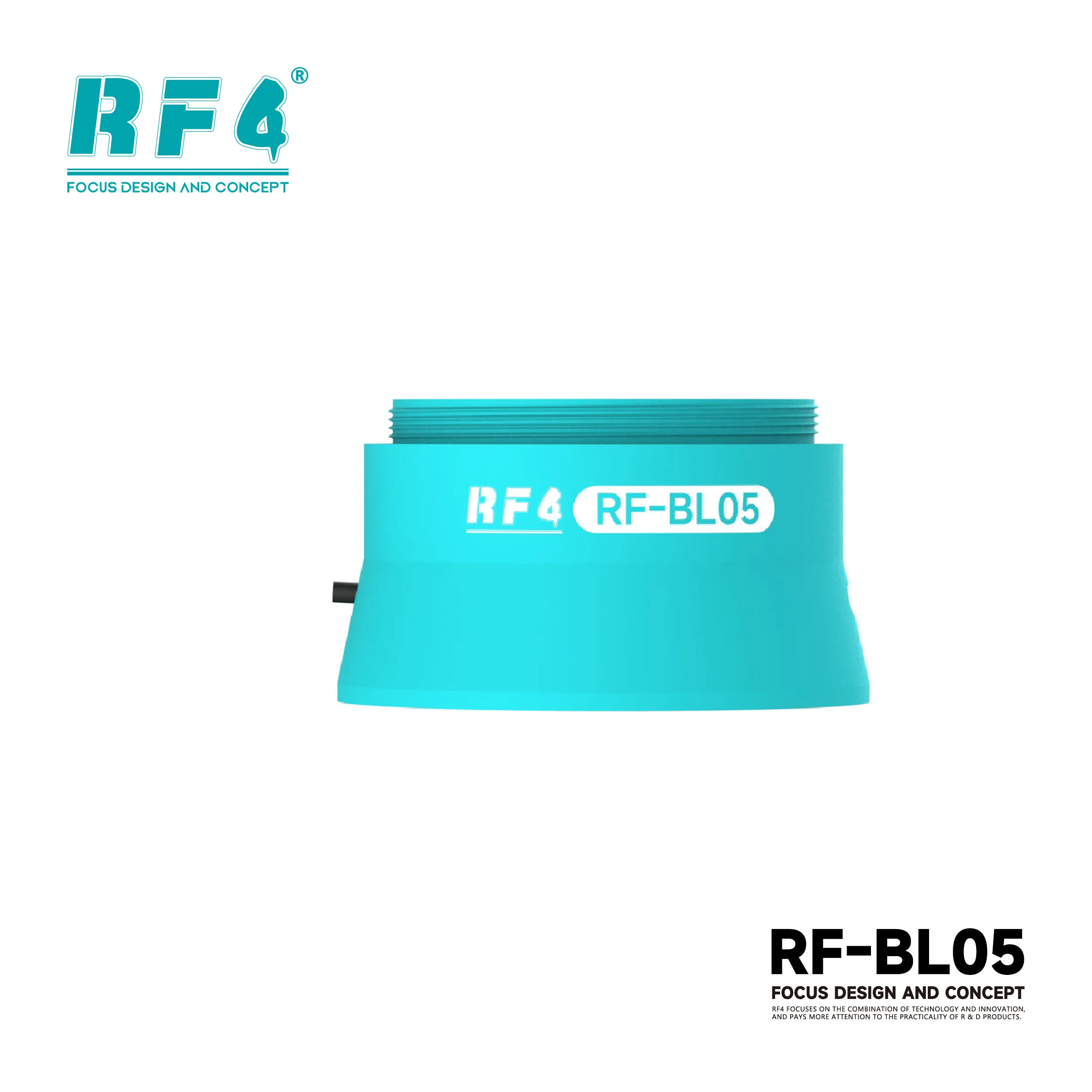

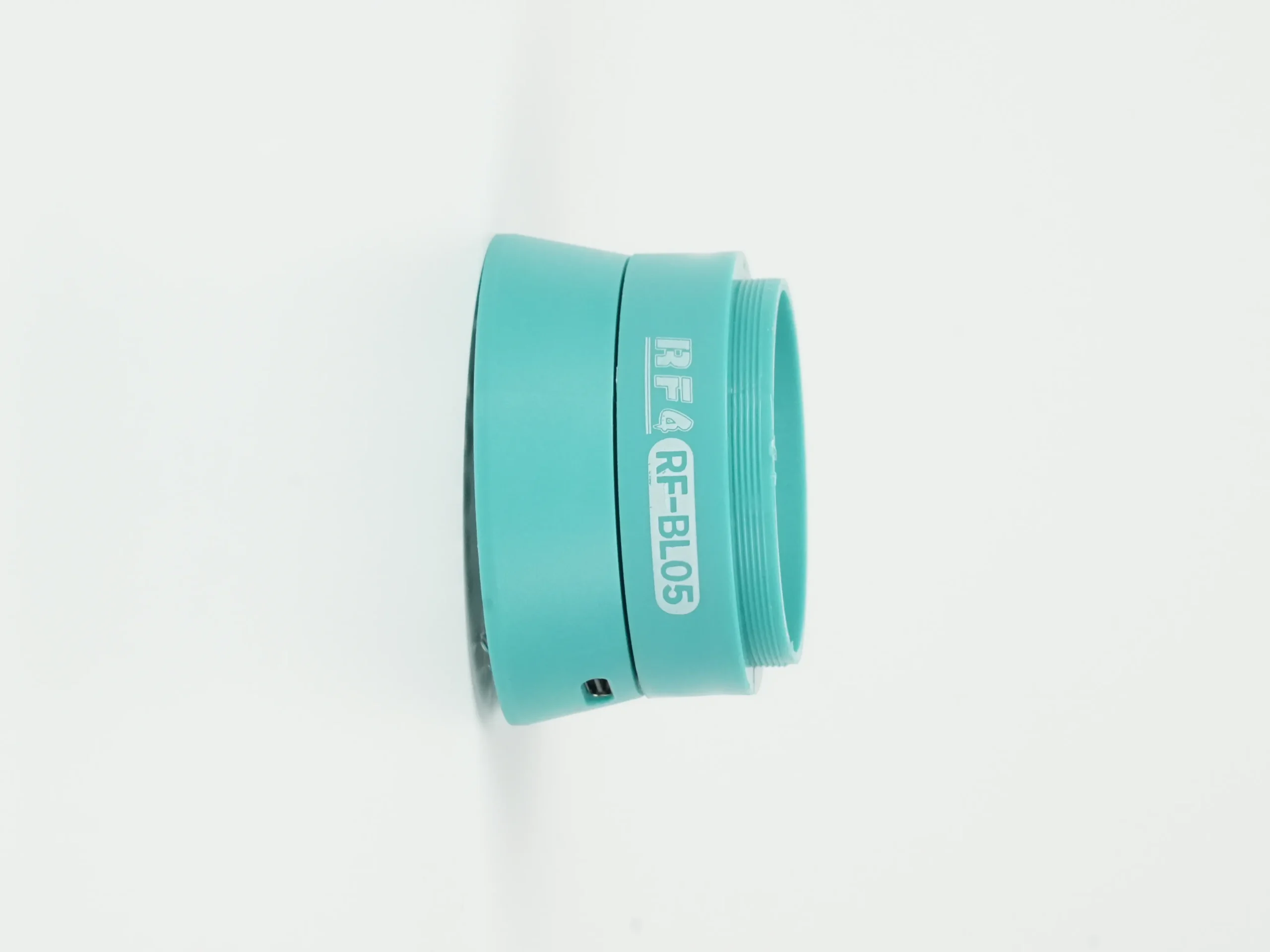

The RF4 BL05 is a 0.5X microscope auxiliary objective lens with a built-in dual LED module. You thread one compact unit onto your stereo microscope and gain a longer working distance and even light in a single step. If you handle dead phone boards, charging issue faults or any hardware fault that needs board-level inspection, you spend most of your day studying BGA chips, fine pads and tiny solder joints. This lens targets that exact job: you see the repair area clearly, keep your hands free and stop losing detail to shadows and dark corners of the board.

How 0.5X Magnification and 165mm Working Distance Help Your Bench

A 0.5X auxiliary objective lowers the total magnification of your microscope and moves the focal point farther from the lens. On the BL05, the working distance reaches 165mm. That gap gives you room to angle a hot air nozzle, steady tweezers and feed solder wire without touching the optics. Lower magnification also widens your view, so you scan a full motherboard section first and zoom into the suspect IC second. The high-transmittance objective keeps the image bright at that distance, so you read chip markings and pad condition without chasing extra light. Long sessions also get easier: you sit back from the board, hold a steadier posture and keep your tools clear of the lens while you work on a network issue or display problem board.

Microscope Barlow Lens with LED Light: Shadow Control

Most technicians bolt on a ring light, then fight an extra cable and an extra mount. The BL05 builds the lighting into the lens body. Its optical-path illumination delivers soft, uniform light and reduces shadows around shield cans, tall components and BGA edges. You spot solder balls, bridged pads and lifted tracks faster. Use it after reflow to confirm a clean joint, during diagnosis to trace a damaged line, or before you power a boot loop or hang on logo board you just repaired. The same light helps when you compare a suspect board against a known-good one, because both boards sit under identical, even illumination and small differences in pads, flux residue or component placement stand out. Cleaner visibility also means fewer second passes with the hot air gun, which protects neighbouring components and saves you rework time on every board.

Where the BL05 Fits in Your Repair Workflow

Place this lens at the inspection stages of a PCB repair. Use it before rework to find the fault, during rework to guide your soldering, and after rework to verify the result. Check eMMC and UFS pads before you reball, inspect ISP pinout points before you jumper lagana, and confirm CPU and IC joints after a hot air pass or an IC change karna job.

The compact 34.70mm body replaces a separate lens-and-light setup, so you upgrade the microscope you already own. Before you order, check the listed top thread interface outer diameter, 47.40mm / 34.00mm, against your microscope’s objective thread so the unit seats properly. Shops across Pakistan run stereo microscopes daily for board-level work, and the BL05 gives an existing microscope a longer reach and built-in lighting without a full replacement. A service center with several benches can fit the same unit across its microscopes and keep every technician working with the same view and the same light.

Round out the bench with a hot air station, soldering station, PCB holder, reballing kit and multimeter from the RF4Tools range, and add a test box or ISP pinout tool for your software side. The BL05 shows you the board, and those tools fix it.
