RF4 RF-2KC3 Professional 2K Microscope Camera

Professional 2K Microscope Camera for PCB and BGA Repair

A professional 2K microscope camera turns your trinocular microscope into a shared display. The RF4 RF-2KC3 does that job with a Sony IMX335 sensor, HDMI output and mouse control. You inspect a dead phone board on a monitor, keep both hands on the iron and stop leaning into the eyepiece. This page covers what the camera does, how it connects and where it earns its place on a Pakistani repair bench.

Sensor and HDMI Image Output

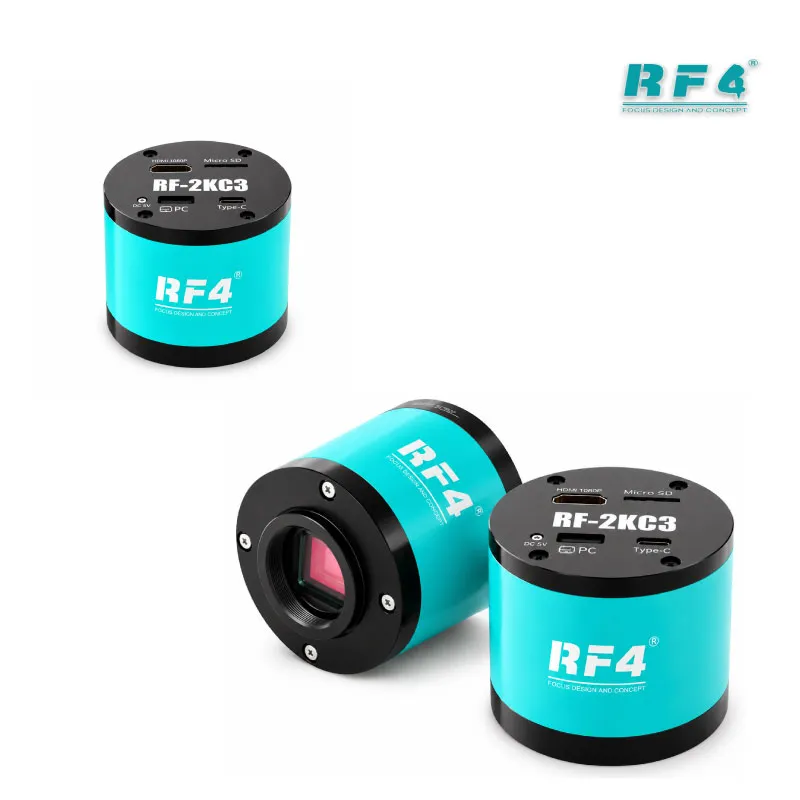

The RF-2KC3 uses a 1/2.8-inch Sony IMX335 CMOS sensor. It delivers 2K Full HD imaging, and the HDMI port outputs 1920×1080 at 60 frames. That frame rate keeps the picture smooth while you move tweezers, so you place small capacitors without watching the image lag behind your hand.

A USB output sits beside the HDMI port for a second connection route. You see lifted pads, cracked traces, bridged BGA balls and flux residue clearly. Check the board on screen before you heat it, then check it again after IC change karna to confirm every joint looks clean.

Mouse Control, Photo and Video Without a PC

Two USB 2.0 ports handle your accessories. Plug a USB mouse into one and a flash drive into the other. You open the menu with the mouse, shoot photos and record video straight to the drive. No computer sits on your bench.

The menu runs in English or Chinese, so you set it once and get back to work. The camera runs on DC 5V 2A. Use a steady 5V 2A supply to keep the camera running without interruption mid-repair.

Where It Fits on Your Repair Bench

This camera sits at the inspection stage of every board-level job. Before you start a hardware fault repair, you look at the board for corrosion, burnt components and broken connector pins. A charging issue often points to the charging port area, and a display problem often points to a damaged connector. A network issue sends you into the RF section. In each case, the monitor shows you what the naked eye misses.

Pair it with your hot air station and soldering station for rework. Put the board in a PCB holder, hold your multimeter probes steady and watch both probe tip and pad on the same screen. After reballing with a reballing kit, inspect the ball pattern before you place the chip. When a customer disputes a repair, a saved photo or video of the original damage settles the argument.

Training benefits too. A trainer shows a technique on the monitor and the whole class watches the same view. Your juniors learn jumper lagana on fine pads without crowding the eyepiece.

RF-2KC3 Versus the Lite Model in the RF4 Range

RF4 sells several microscope cameras for trinocular microscopes. The RF-2KC8 lite outputs HDMI only. It cannot take photos, record video or store files. The RF-2KC3 adds photo capture, video recording, a USB flash drive port and mouse control. If you document repairs or train staff, the RF-2KC3 fits better.

Check your microscope before you order. RF4 states that its microscope cameras fit most trinocular microscopes with a C-mount lens. Confirm that your trinocular port accepts a camera of this type, and keep a monitor with an HDMI input ready at the bench.
