RF4 CX71P 6.5X-65X Trinocular Microscope Head

Professional Trinocular Microscope Head for BGA and PCB Work

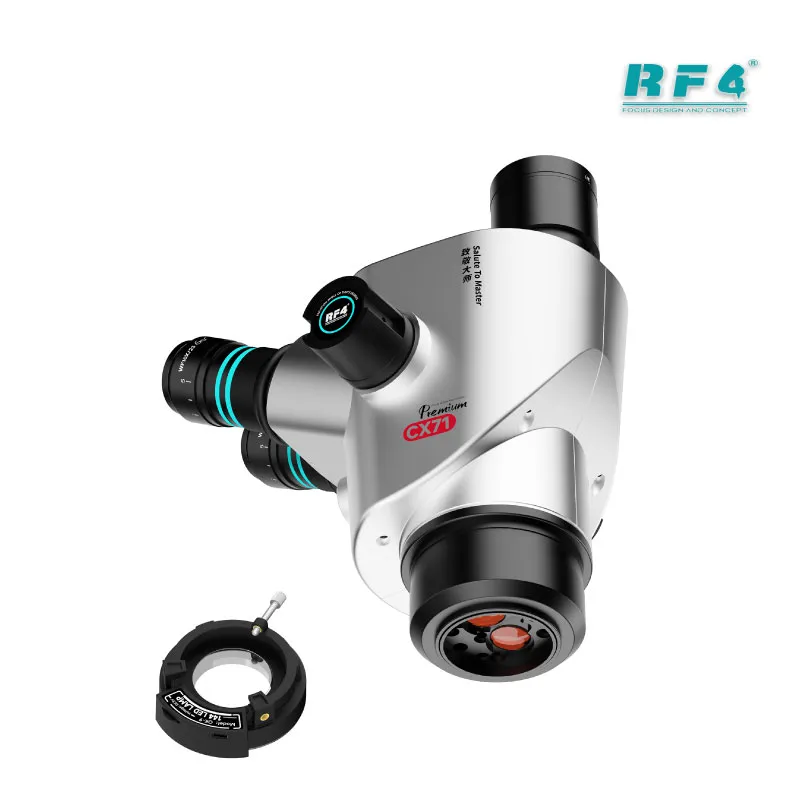

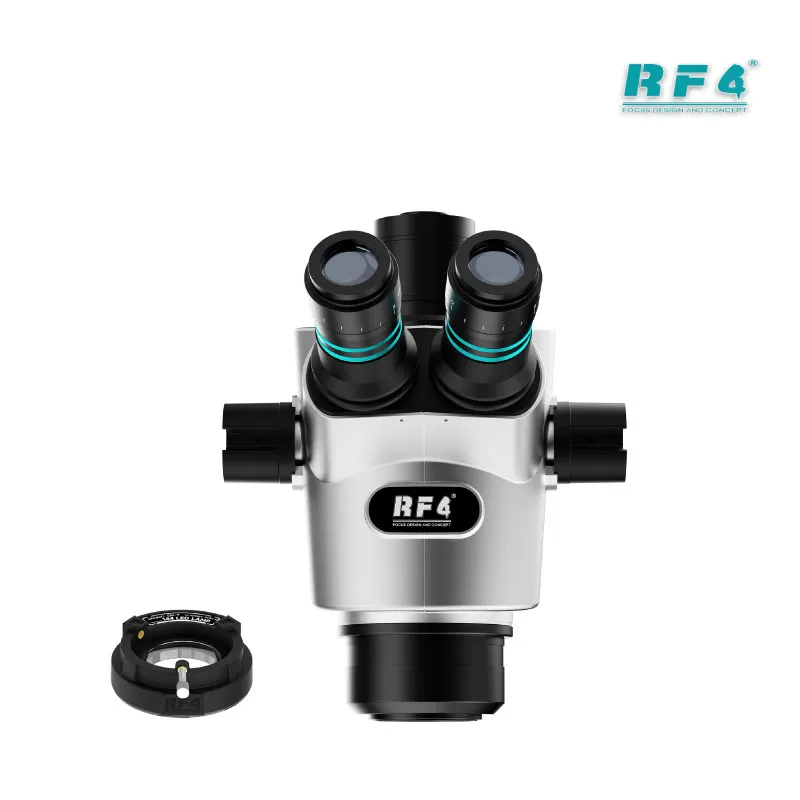

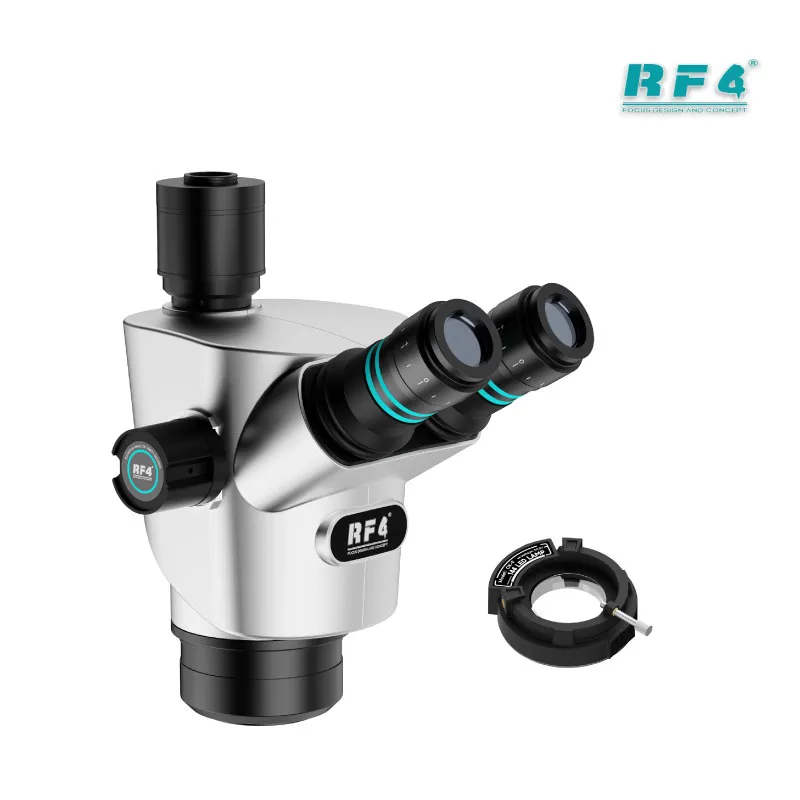

The RF4 CX71P is a professional trinocular microscope head that gives phone repair benches a sharp 6.5X-65X zoom range. You get WF10X/23mm eyepieces, a 30° tilted barrel and iris red-coated optics in a silver body. Technicians use it to inspect BGA pads, trace hardware faults on a dead phone and check every joint after rework. Nothing on the board stays guesswork once this head sits above it.

Optical Specs That Matter at the Bench

The zoom runs continuously from 6.5X to 65X with a 1:10 zoom ratio. You start wide to find the damaged area, then zoom in on a single pad without swapping lenses. Fine adjustment keeps the focus smooth during that move.

The WF10X/23mm eyepieces give a wider field of view than standard 10X/20mm optics. You see more of the board at once, so you spend less time hunting around a crowded motherboard.

RF4 coats the objectives with iris red optics. Phone PCBs reflect bench light hard, especially around solder mask and flux residue. The coating reduces glare and stray light, and the pad edges stay readable.

Tilted Barrel and Trinocular Port

The 30° eyepiece barrel suits workshop sessions that run for hours. RF4 calls the design dual anti-fatigue. You keep a more natural posture while you reball a CPU or clean a charging port area.

The trinocular design adds a third port for photo and video capture. You watch through the eyepieces while a camera records the same view. Technicians use this to show customers the actual fault, train juniors on a live repair or document a reballing job. RF4 lists HDMI camera compatibility for this model.

Where It Fits in Your Repair Workflow

Every hardware repair starts with a look. Use the CX71P before and after each step:

• Before IC change karna, inspect the pads for lifted tracks or corrosion.
• During jumper lagana, trace fine tracks and confirm the jumper lands on the right point.
• After reballing, check ball alignment and solder bridges on the BGA pads.
• During ISP or eMMC work, verify the test points before you touch the iron.

The head works next to your Soldering Stations, Hot Air Stations, Reballing Kits and PCB Holders. It also helps when you diagnose with Multimeters and Test Boxes, because you can see the component you probe. If you repair dead after flash cases with ISP Pinout Tools, eMMC Programmers or UFS Adapters, the zoom makes those tiny pads far easier to locate. Charging issue, display problem and hang on logo repairs all rely on the same inspection habit.

Head Only or Full Setup

RF4 sells the CX71P in three versions. The first is the head only, which this listing covers. The second pairs the head with the FO24 adjustable stand. The third adds the FO24 stand, a 0.5X lens, a 0.7X lens and the 4KC1 PRO 4K camera.

Choose the head only if you already own a compatible stand. Choose the FO24 version if you build a new bench. Choose the camera set if you record repairs for customers, social media or training. Check which variant you order before you pay, so the stand and camera match your plan.

If you compare other Microscopes in your price range, test three things: zoom range, eyepiece field and barrel comfort. The CX71P covers all three for daily GSM bench work.
