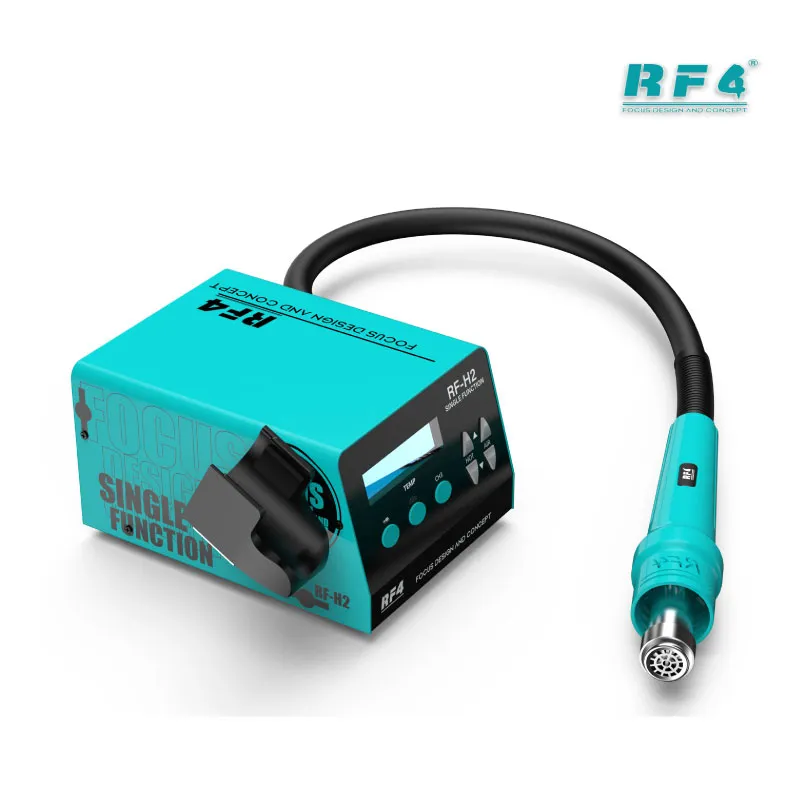

RF4 RF-H2 Professional Hot Air Rework Station 1000W

Professional Hot Air Rework Station for Mobile Board Repair

The RF4 RF-H2 is a professional hot air rework station for technicians who lift and place SMD parts every day. It puts 1000W behind a 15,000 RPM turbine fan and holds temperature accuracy at ±2℃, so your heat stays steady from the first IC to the last. You get a 100–480℃ range, 50L/min of airflow, and three programmable channels on a digital panel. Your bench might handle a dead phone with a shorted power IC, a hang on logo case with a failed eMMC, or a charging issue from a burnt charging IC. In each case the RF-H2 gives you controlled, repeatable heat. Specialist work needs predictable tools, and this station delivers that.

Power, Temperature, and Airflow Specifications

The 1000W element gives you reserve power. Phone mainboards pull heat away through copper layers, and weaker guns stall once cold air hits a large ground plane. The RF-H2 recovers quickly and keeps the part at working temperature.

The range runs from 100℃ to 480℃. Low settings suit adhesive softening and shield warming. High settings cover lead-free solder, which melts at higher temperatures than leaded alloys. The listed constant-temperature accuracy is ±2℃, so the heat at the nozzle stays close to your set value.

Airflow reaches 50L/min from a high-speed turbine fan at 15,000 RPM. Strong airflow moves heat across a part faster and shortens the time the board sits under the nozzle. Low airflow protects small capacitors, resistors, and neighbouring parts. You balance the two on every job. Run higher airflow on large shields and chips. Drop it near tiny passives.

Three-Channel Memory for Repeat Jobs

The RF-H2 has three running channels: CH1, CH2, and CH3. Each channel stores its own temperature and airflow. Most repair shops run the same few profiles all day, so you set them once and recall them from the panel.

A practical split looks like this. Use CH1 for low-heat jobs such as shield and connector removal. Use CH2 for standard SMD and IC work. Use CH3 for BGA chips and lead-free boards that need more heat. Your own profiles will differ with your solder, your boards, and your nozzle choice. Test on a scrap board first, then save what works.

Saved channels cut setup time and reduce mistakes. A technician who re-dials temperature on every job drifts from one repair to the next. A technician who recalls a proven profile repeats the same result.

Where It Fits in the Repair Workflow

Hot air sits in the middle of board-level repair, after diagnosis and before testing. You trace the fault with a multimeter and a microscope. Then you lift the part, clean the pads, and place a new one. The RF-H2 handles the lift-and-place step.

Typical jobs include IC change karna on power and charging ICs, CPU and BGA chip rework, eMMC and UFS chip removal for replacement, and shield or connector removal. Some dead after flash cases trace back to a damaged eMMC, and those boards need the chip lifted and replaced. For ISP work you still use your ISP pinout tool and your eMMC or UFS adapter. You reach for hot air when the chip itself has failed and ISP cannot save it.

Pair the station with a soldering station. Hot air removes the part. The iron cleans pads, tins them, and does jumper lagana on broken traces. Add a reballing kit and a PCB holder, and you cover the full chip replacement path from removal to placement.

Handle, Cable, and Bench Setup

The handle cable measures 97cm. That length lets you reach across a board without dragging the station. Place the unit on the side of your working hand and route the hose clear of your hand path before you start a long job.

Build the bench around the station. A microscope lets you read pad condition and solder flow on tiny parts. A PCB holder locks the board in place, because strong airflow can push a loose board and the small parts around your target. Keep your nozzle distance and angle consistent from job to job. Consistency matters as much as the temperature setting.

Preheat the board gently before you lift a large chip. Even heating reduces warping and protects nearby parts. After rework, check for shorts and continuity with your multimeter. Once the hardware fault clears, move to your software side and confirm with your test box or flash tool.

Why Technicians Choose the RF-H2 for Hot Air Work

This station suits shops that have outgrown a basic hot air gun. You gain digital control, saved channels, and strong airflow in one unit. A 1000W hot air rework station also gives you the reserve to handle large shields and lead-free boards without long dwell times.

The RF-H2 sits inside the RF4 hot air lineup. If you want 1200W and four memory modes, the RF-H3 and RF-H4 cover that step. If your bench needs a full BGA rework station with a preheater, look at the dedicated BGA machines in the rework category and keep the RF-H2 for quick single-part jobs. That upgrade path lets you grow your bench without relearning your basics.

For a repair shop in Pakistan, the RF-H2 covers the daily mix of charging issue repairs, display problem connector work, network issue IC jobs, and boot loop issue chip replacements. One station handles all of them when you set your channels correctly.
