RF4 RF-FO33B Large Double Arm Microscope Stand

RF-FO33B Double Arm Microscope Stand Built for Stable PCB Work

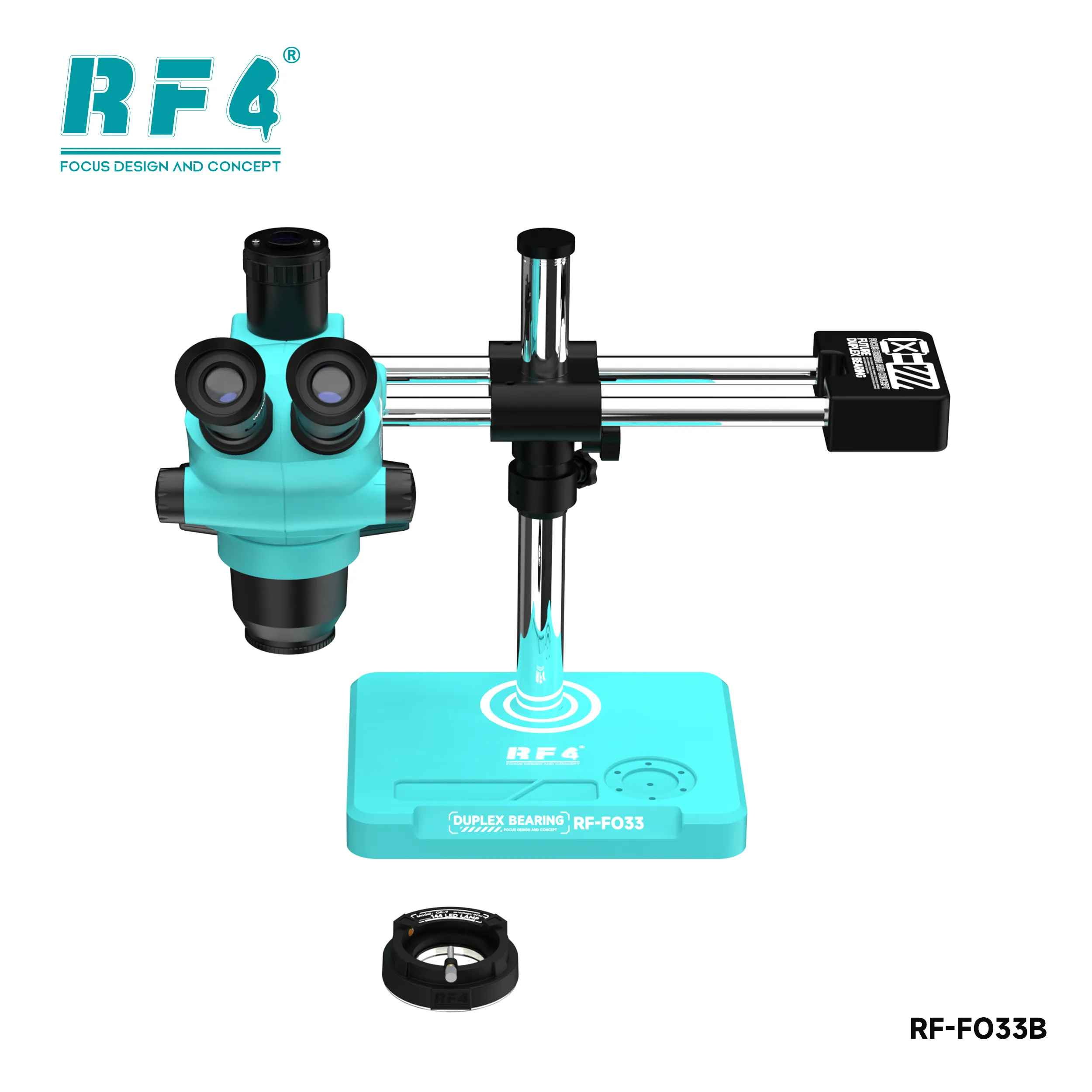

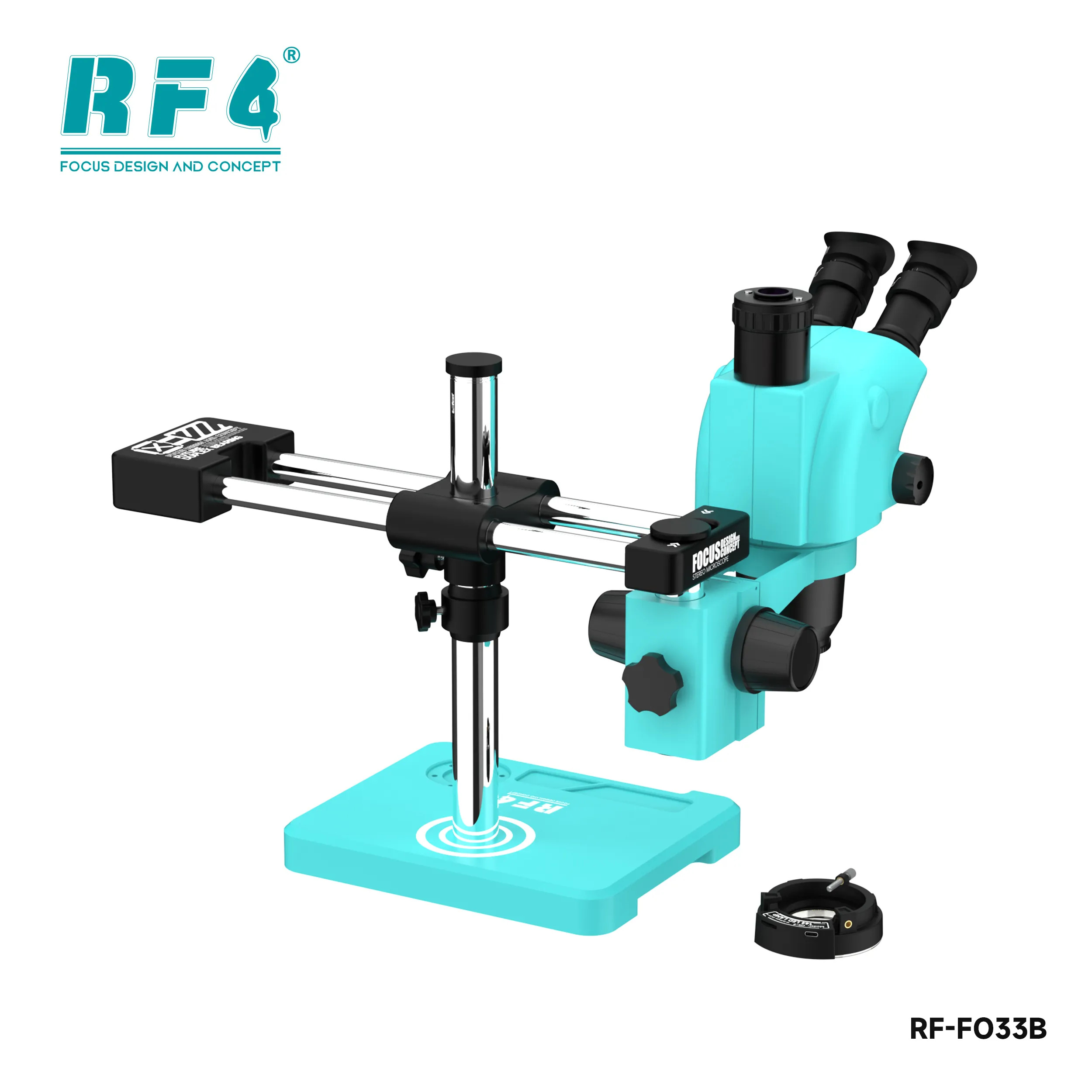

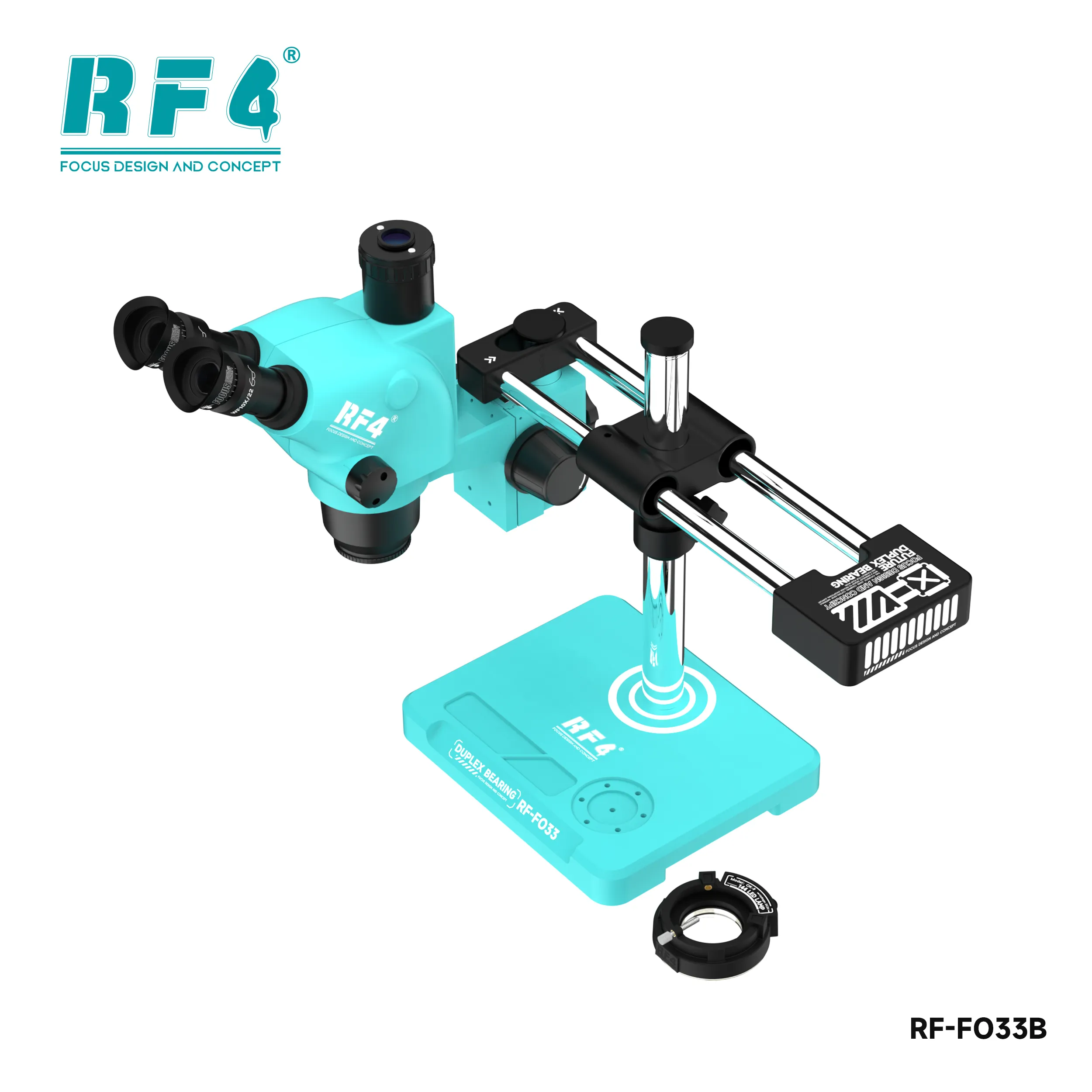

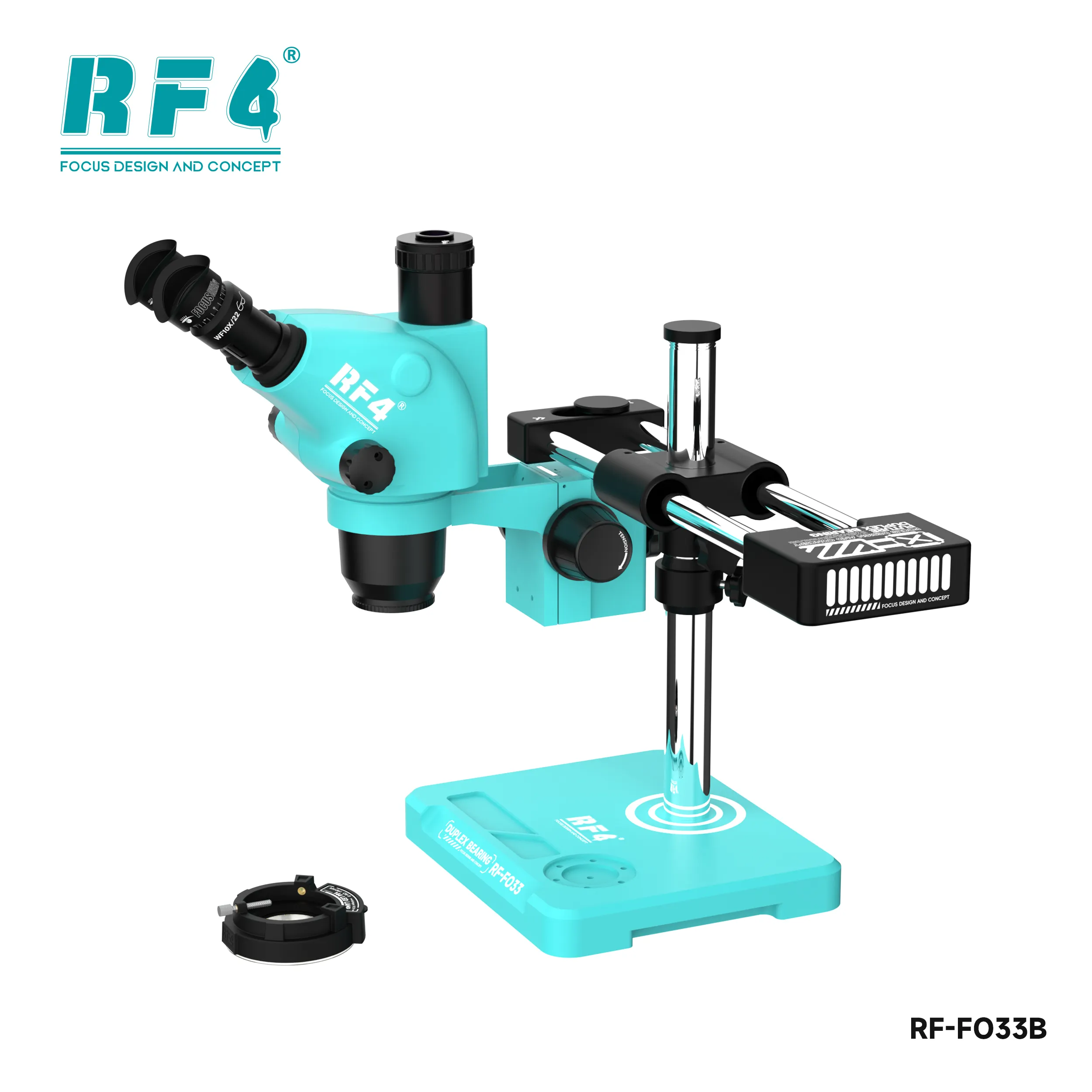

A microscope is only as useful as its stand. The RF4 RF-FO33B is a double arm microscope stand with a large base and a duplex bearing arm joint. Both are designed to stop the head from drifting while you solder, reflow, or probe. You mount your stereo or trinocular head on it and work without chasing focus after every touch.

Duplex Bearing Arm and Large Base

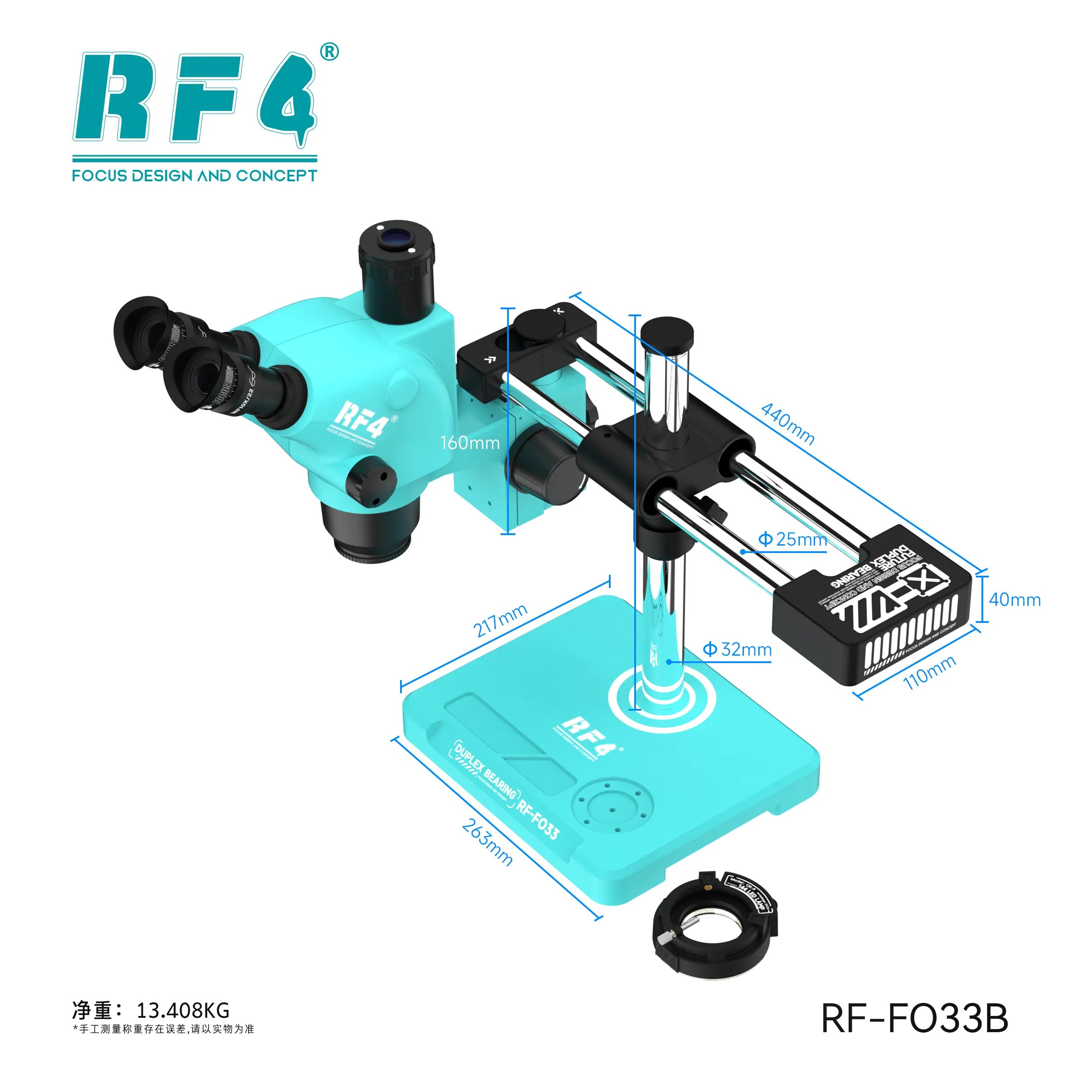

The base carries the weight. A wide footprint keeps the stand planted when you lean on the bench, move a hot air nozzle, or pull a stubborn shield. A narrow pole stand tips its vibration straight into your image. A large base absorbs it.

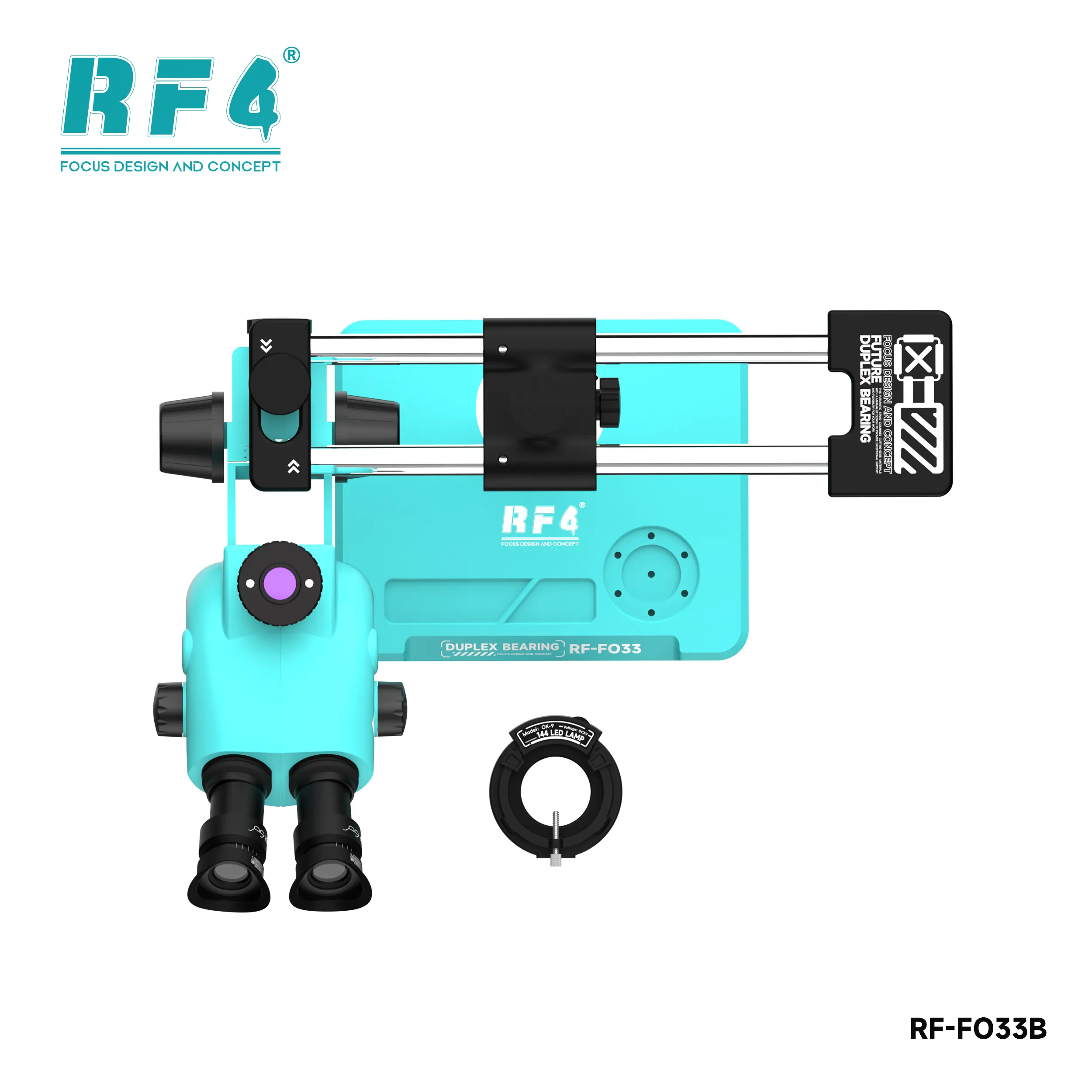

The arm uses a duplex bearing joint. Duplex bearings take load in both directions, so the swing arm turns smoothly and holds its position instead of sagging. You rotate it through 360° and park the head over any part of the board. Fine tuning stays smooth, and the arm does not creep once you stop.

The mechanical gear zoom lock knob lets you hold a set magnification. You choose the view you want for the job, lock it, and keep both hands on the tools. This matters most during long reballing sessions where you check ball alignment again and again.

Where It Fits in Your Repair Workflow

The stand sits at the center of chip-level work. Start with inspection: a dead phone or a charging issue often traces back to a lifted pad, a burnt trace, or a cracked capacitor. You find these under magnification, so a steady head saves time.

Next comes rework. During IC change karna, you watch the solder flow on the pads, check for bridges, and confirm each chip sits flat after placement. A stable microscope view lets you judge temperature by how the solder behaves, not by guesswork. Jumper lagana on damaged traces also needs a fixed view, since a 0.1 mm wire does not forgive a moving image.

Cleaning and final checks finish the loop. After rework, you inspect joints and flux residue before you power the board. If you sell repair services in a busy market bench, a stand that keeps its position through the whole sequence cuts re-checks and callbacks.

Pair the stand with a hot air station, a soldering station, a PCB holder, and a reballing kit from the RF4 Tools range. This keeps the whole PCB repair bench consistent. If you outgrow a basic setup, move up to a trinocular microscope with a camera so you can record your work or show customers the fault.

Choosing the Right Microscope Head

The RF-FO33B works as a PCB repair microscope stand for boom-style stereo and trinocular heads. Check your head’s mounting fitting against the stand’s pillar before you order. If you run an RF4 microscope, the pairing keeps your whole bench under one brand. If you run another make, confirm the fitting first.

Weigh your head and camera setup too. A trinocular head with a camera and a ring light carries more weight than a plain stereo head, and the large base exists to handle that load. Match your setup to the stand and you get a bench that stays steady through daily work.
