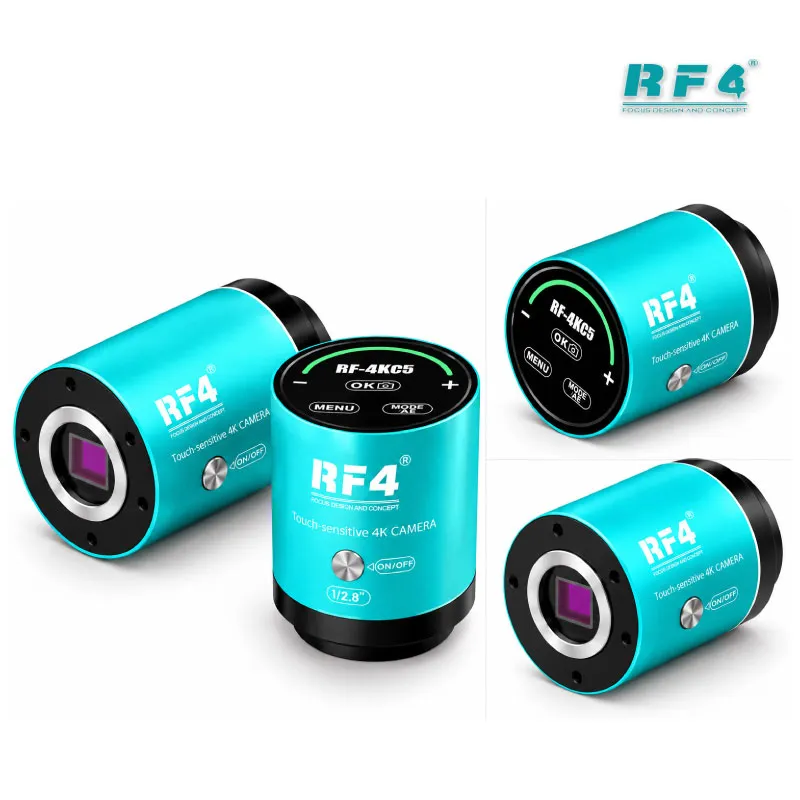

RF4 RF-4KC5 4K HD Touch Microscope Camera

Professional 4K Microscope Camera for Board-Level Repair

The RF4 RF-4KC5 is a professional 4K microscope camera for repair benches that work at board level. It attaches to a trinocular microscope through a C-mount lens. It sends the live image to a monitor over HDMI or to a computer over USB, and you control it by touch. You stop leaning over eyepieces and work from a screen. If your bench handles dead phone boards, charging issue faults, and IC change karna jobs every day, this camera shows each pad and joint in 4K HD detail.

Where It Sits in Your Repair Workflow

The camera sits between your microscope and your monitor. You use it first for inspection. Check the board before you touch it. Look for cracked joints, lifted pads, burnt traces, and corrosion from liquid damage. A clear 4K view helps you confirm a hardware fault before you decide to heat anything.

Keep the camera running during the repair itself. Watch the solder flow while your hot air station lifts a chip. Watch the tip of your soldering station as you clean pads or place a jumper. Jumper lagana on tiny traces goes faster when you see the whole board on a large screen.

After the repair, inspect the result. Check for solder bridges, flux residue, and missing balls before you power the board on. A dead phone that comes back dead after your work costs you time and trust. A final screen check catches mistakes early.

Output and Microscope Compatibility

The RF-4KC5 supports HDMI and USB output. HDMI connects straight to a monitor, so you need no computer at the bench. USB connects to a computer for viewing on a PC screen. RF4 lists this camera as compatible with most trinocular microscopes and C-mount lens setups.

Check one thing before you buy: your microscope needs a camera port that accepts a C-mount connection. Most trinocular stereo microscopes used in mobile repair shops have one. If your microscope uses a different mount, confirm the adapter first.

Touch operation keeps the interface simple. You adjust the view on the camera itself and keep your hands on the repair.

Why Technicians Choose This Camera

Repair shops use it to train new staff. A trainee watches the same joint you work on, on the same screen, in real time. Training institutes use it to demonstrate reballing, pad repair, and IC removal to a whole class.

Shop owners use it to review work. A clear 4K view lets you check a technician’s soldering without standing over their shoulder.

The camera also fits the way most Pakistani repair benches grow. You start with a microscope, add the RF-4KC5 for screen viewing, then add reballing kits, PCB holders, and multimeters as your workload increases. Each tool you add works with the same bench setup.
