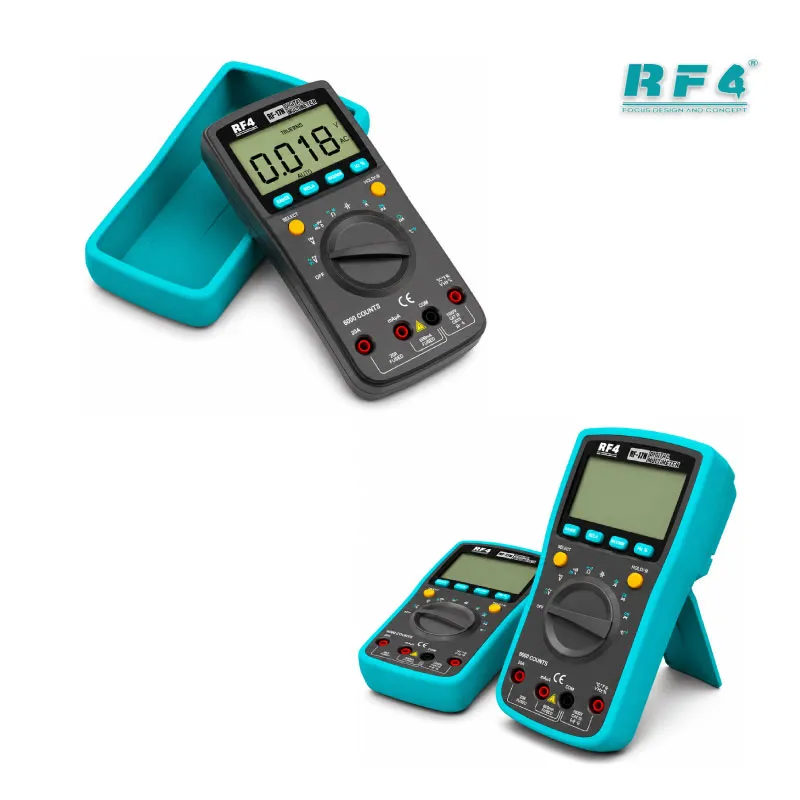

RF4 RF-17N Professional Digital Multimeter 6000 Counts

Professional Digital Multimeter for Mobile Repair Benches

The RF4 RF-17N is a professional digital multimeter with a 6000-count backlit LCD and True RMS measurement. You test voltage, current, resistance, capacitance, diode, continuity, frequency and temperature on a single meter. That range covers most hardware fault checks on a mobile repair bench. A dead phone with no current draw, a charging issue or a shorted line all start with a meter reading.

6000-Count Display and Readout Features

The 6000-count LCD gives you fine resolution on the small values you meet on mobile boards. The backlight keeps the readout visible under a microscope lamp or in a dim corner of the workshop. Auto polarity identification shows the sign for you, so reversed probes on a battery connector never cost you a wrong reading.

The meter converts each reading with double-integral A/D conversion and samples three times per second. That pace suits board-level probing, where your probes jump between test points. The OL indicator flags any input beyond range, so you never mistake an overload for a real value. A battery symbol warns you before the meter dies mid-test, and auto power off saves battery between jobs.

Measurement Modes on the Repair Bench

Start with resistance and continuity. Check power rails for a short before you apply power, and trace a broken line on a charging flex or battery connector. Switch to diode mode to test protection diodes and read the voltage drop across suspect parts on a hardware fault board.

Capacitance mode checks filter capacitors before you replace them. DC voltage and current modes confirm what the board receives and draws once you power it. Frequency mode checks for signal presence, and the temperature function adds heat checks during diagnosis. After you locate the fault, you move to IC change karna with your hot air station or soldering station, then confirm the result with the same meter. On jumper lagana jobs, test continuity across the jumper before you power the board.

Why a True RMS Multimeter Belongs on Every Bench

True RMS measurement reads AC signals accurately, including waveforms that are not clean sine waves. That matters when you check adapters, chargers and power supplies that feed your repair station. You get a reading you can trust, not an average-responding estimate.

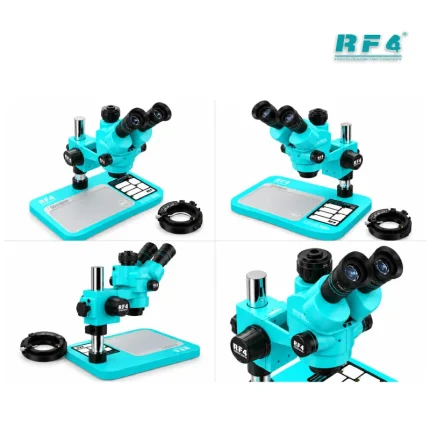

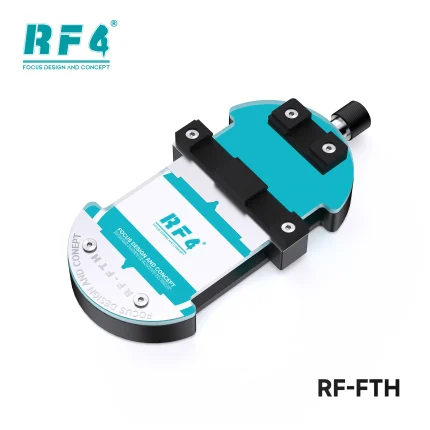

The meter anchors the diagnostic stage of the PCB repair process. A microscope shows you the damaged area, and the meter proves the electrical fault. A PCB holder keeps the board steady while you probe, and reballing kits and rework tools take over once diagnosis ends. Stock the RF-17N alongside your multimeters, test boxes and soldering equipment so every technician has a meter within reach.

Shops with several benches gain from one consistent meter model. Every technician reads the same display, uses the same mode layout and compares results without translating between tools. If your work leans toward software, the RF-17N still earns its place. When a phone is dead after flash, a quick voltage check tells you whether the fault sits in software or hardware. Order a battery with the meter, because the RF-17N ships without one.
