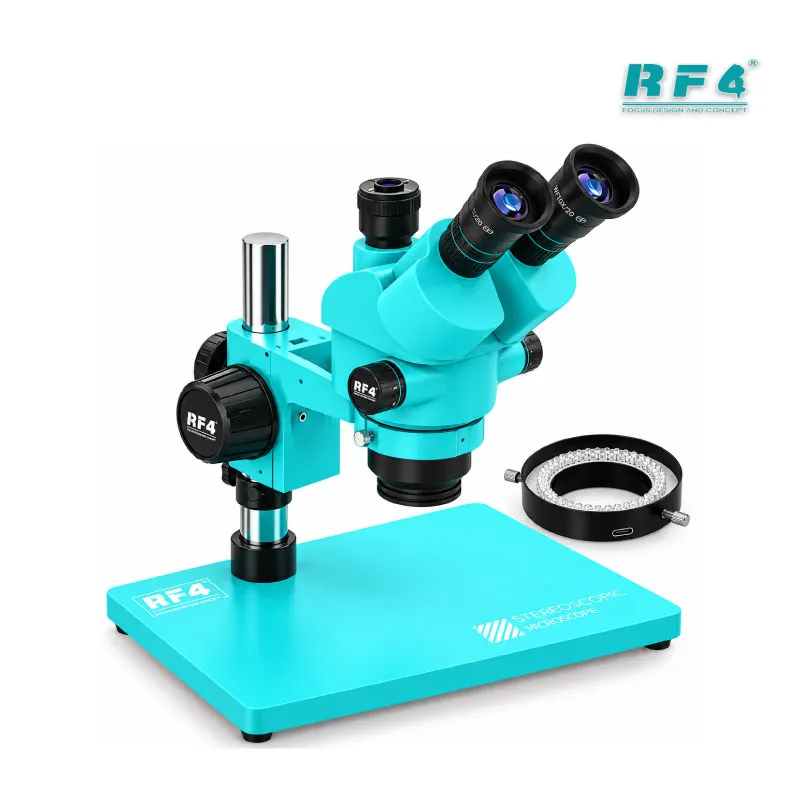

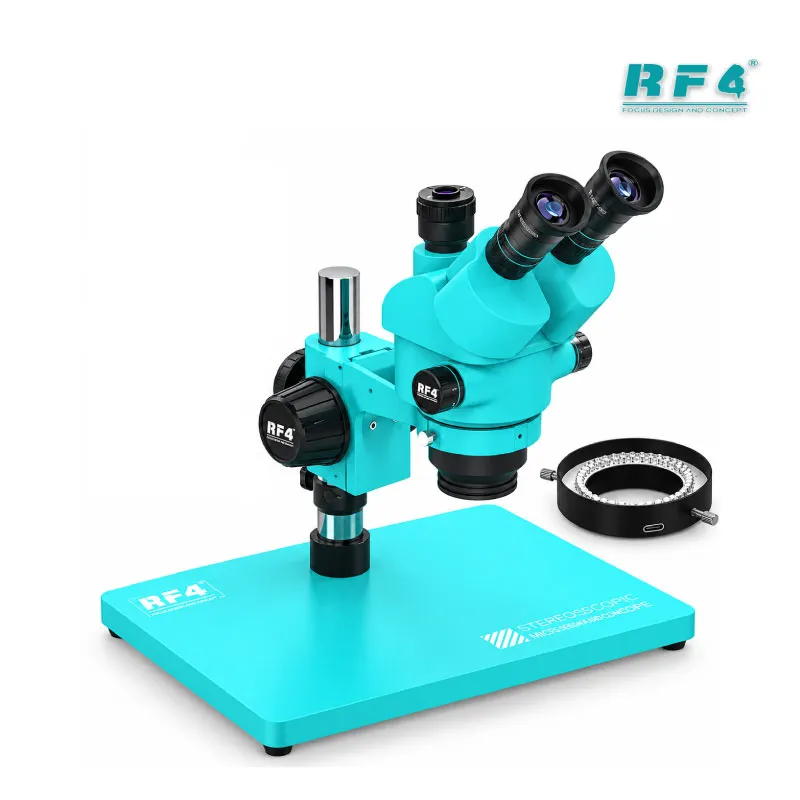

RF4 RF-6558X Trinocular Stereo Microscope 6.5-58X

Professional Trinocular Stereo Microscope for Mobile PCB Repair

The RF-6558X is a professional trinocular stereo microscope for technicians who solder under magnification every day. It covers 6.5X to 58X on a continuous zoom, so you move from a full-board scan to a single damaged pad without swapping lenses. The third port takes a camera, which turns your bench into a live display for training, customer proof, or a second pair of eyes.

Zoom Range That Matches the Repair

Continuous zoom from 6.5X to 58X works through a 0.65–5.8X objective paired with WF10X eyepieces. Low magnification helps you find lifted pads, burnt traces, and liquid damage across the whole board. High magnification shows you solder bridges under a BGA edge and cracked joints on small passive components. A metal zoom knob holds your setting without drift. You turn it smoothly and stop exactly where the work needs you.

Synchronous Camera Output

The trinocular head carries a 0.5X CTV adapter. A transparent mirror inside the adapter lets the monitor and the eyepiece zoom together, so the screen shows what you see. You focus the adapter manually while you watch the LCD. Pair it with an HDMI camera and you record a dead phone repair step by step, teach a junior technician at the same bench, or stream a live session. The all-metal adapter, with its aluminum alloy body and chrome-plated bayonet, holds up to daily workshop handling.

Head, Base, and Workshop Comfort

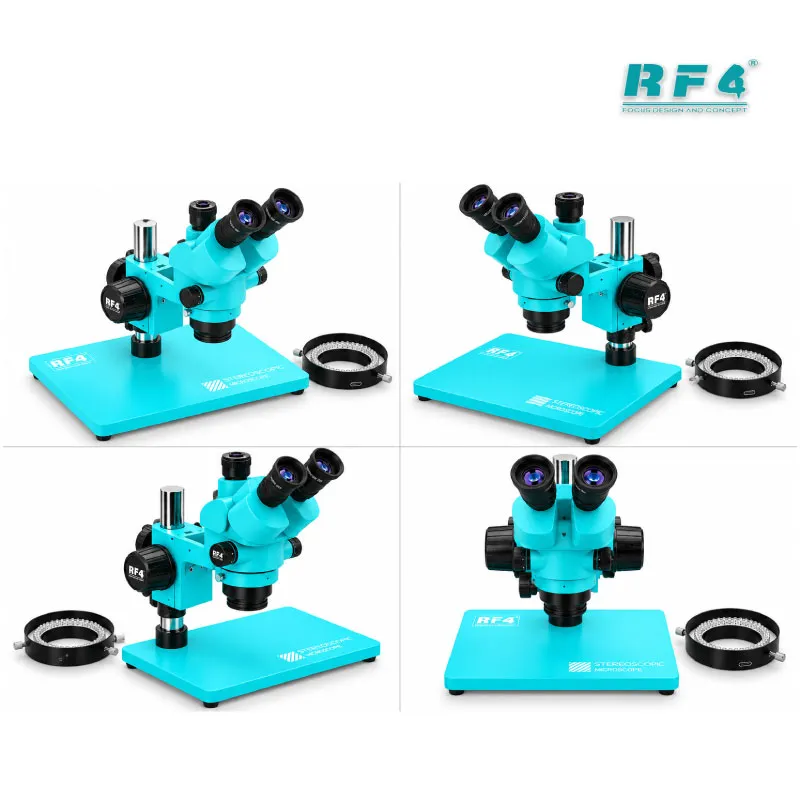

The head tilts 45 degrees and rotates 360 degrees. You turn it to face the monitor, your seat, or a colleague without moving the board. The aluminum alloy base measures 380 × 260 mm, so you rest your wrists, set a PCB holder, and park a hot air station nozzle close by. Leak-proof eye cups block stray light and reduce eye strain during a long hardware fault session. A limit lock stops the head from dropping onto your board, and the dustproof objective lens needs less cleaning between jobs.

Lighting for Fine-Pitch Work

The 144-LED ring light lights the board evenly and cuts down shadows around tall components. Even light matters when you check solder wetting on a CPU or eMMC after reballing. You see the ball collapse, the flux residue, and the hairline cracks that your eyes miss under a desk lamp.

Where It Fits Your Repair Workflow

You use this microscope at every stage of board-level work. Start with inspection on a hang on logo or charging issue board: trace corrosion, check connectors, and find the damaged part. Move to rework, where you watch the solder reflow while your soldering station or hot air station does the job. Finish with verification, where you inspect every joint before you power the board. If your bench already runs ISP pinout tools, eMMC programmers, UFS adapters, and test boxes, the microscope closes the loop. It lets you confirm your hardware repair visually before you run the box. Pair it with reballing kits and PCB holders from the same category and you build a complete IC-level workstation.

Why Technicians Pick the RF-6558X

Many repair shops start with a simple binocular scope and outgrow it the first time a customer asks for photo proof of a board fault. The RF-6558X removes that upgrade step. You get the trinocular port, synchronous camera output, and strong zoom in one stand. It also suits technical training institutes, since a screen shows students exactly what the instructor sees. The microscope handles Samsung, Oppo, Vivo, Infinix, Tecno, and iPhone boards equally, because it magnifies the work rather than depending on the device. You choose it when you want precision optics and a camera port without paying for features your workflow never uses.
