RF4 RF-FX23A 7-50X Trinocular Stereo Microscope

Trinocular Microscope for Mobile Repair: RF4 RF-FX23A

The RF4 RF-FX23A is a trinocular microscope for mobile repair with a 7-50X continuous zoom head and a free-swinging folding arm stand. You use it where bare eyes and a loupe stop working: small passives, BGA pads, broken traces, and flex connector pins on a dead phone board. The third optical port takes the included 0.5X CTV adapter, so you attach a camera, record a repair, or show a customer the fault on screen while you keep working through the eyepieces. This page covers the optics, the stand, the lighting, and where the RF-FX23A fits next to your hot air station and soldering station.

7-50X Stereo Microscope Optics for Board-Level Work

The head gives you continuous zoom from 7X to 50X, so you move from a full-board overview to a single pad without swapping objectives. Continuous zoom lets you stop at any magnification between the two ends instead of clicking through fixed steps. Start low to find the damaged area. Zoom in once you reach the component. For a dead phone with suspected liquid damage, 7X to 15X shows corrosion and burnt areas fast. For BGA inspection, higher zoom shows ball alignment and bridged pads.

The WF10X/22mm wide-angle eyepieces give you a large aperture and a wide field of view. That helps when you trace a charging line across a board and want the whole path in sight. Working distance reaches 100mm, so your tweezers, iron tip, and hot air nozzle fit under the lens without crowding the image. Diopter adjustment of +/-5DP lets each eye focus on its own, and you can observe clearly even without glasses. A dust-proof lens keeps bench dust off the optics, so the image stays clean through long repair shifts.

Microscope with Swing Arm Stand: Reach Without Moving the Board

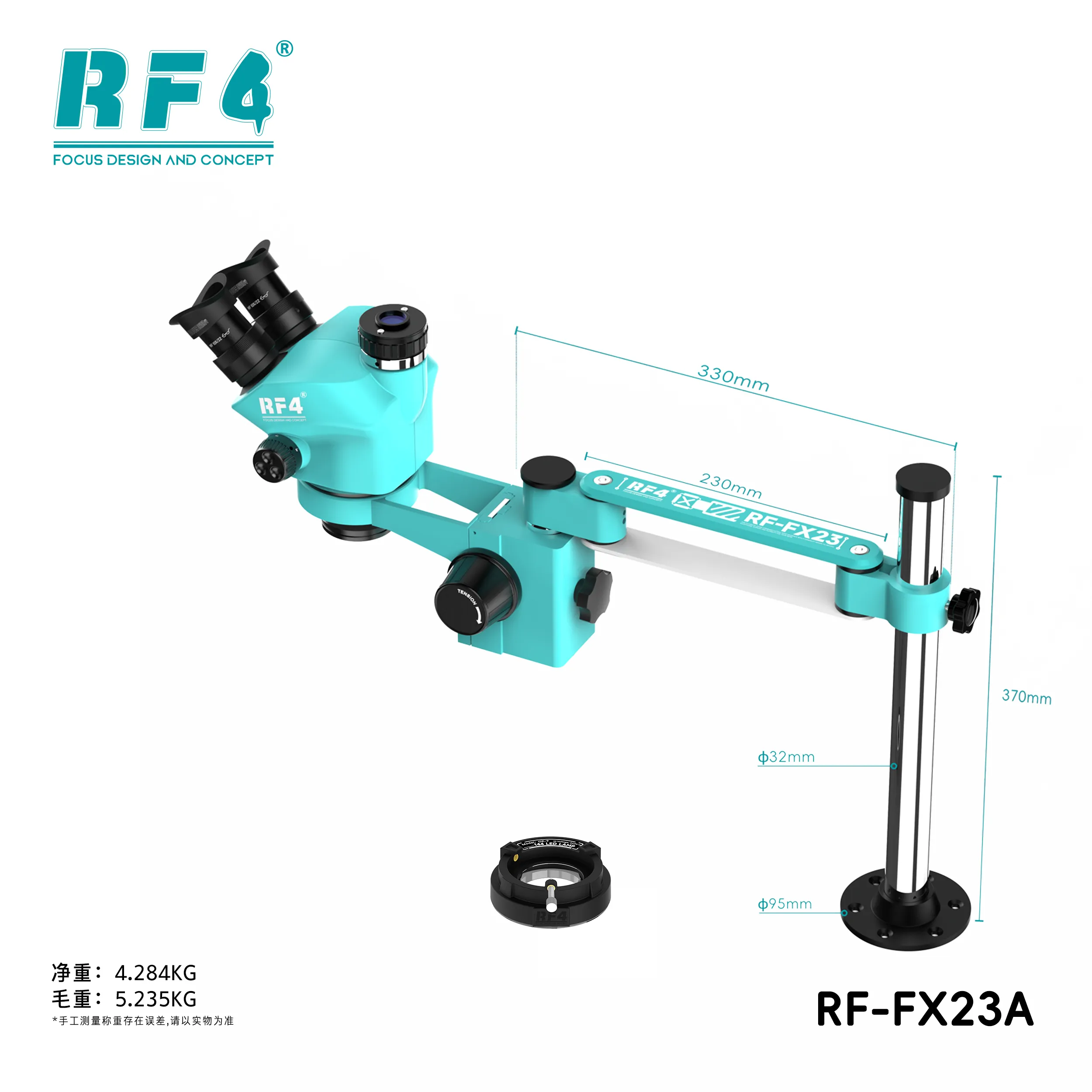

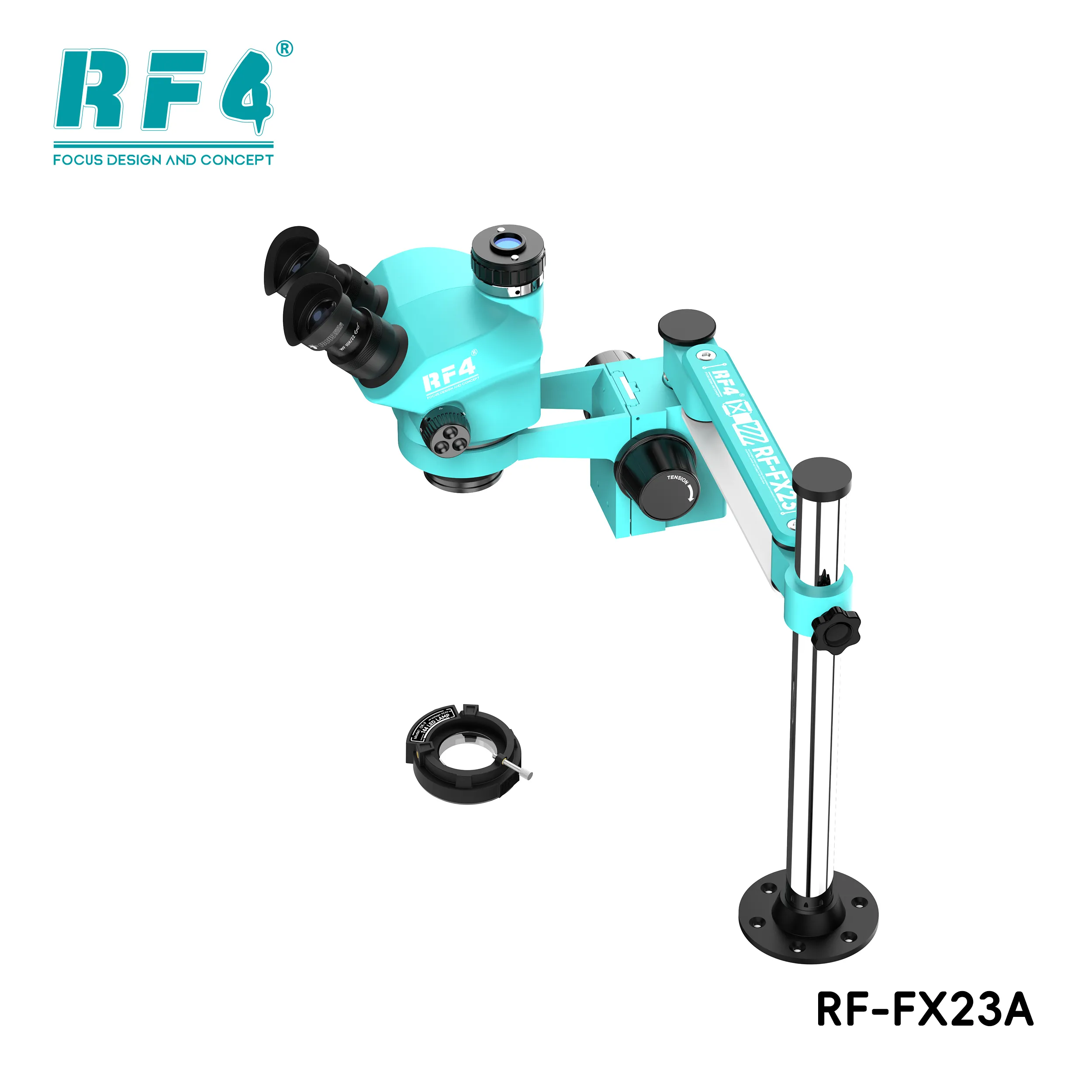

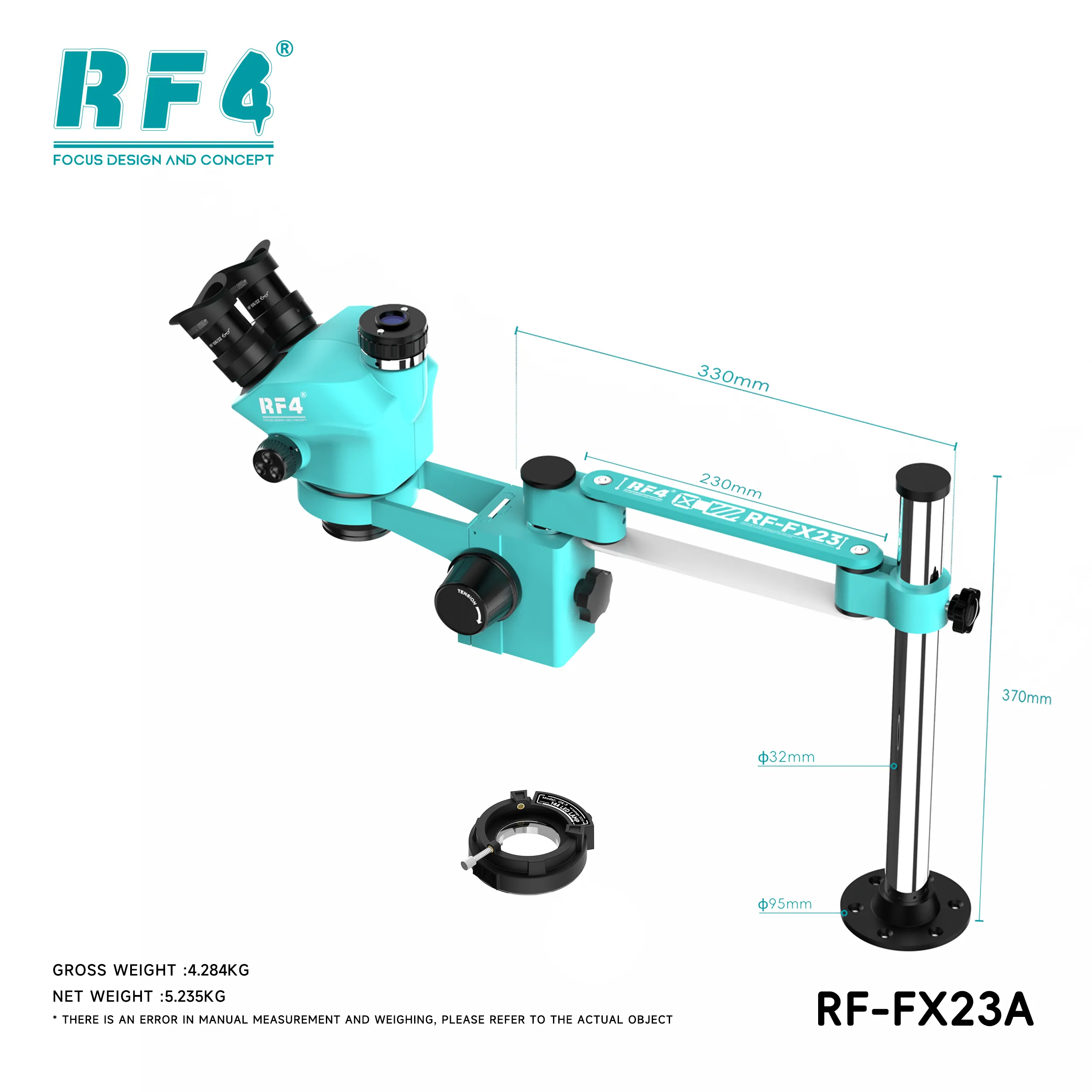

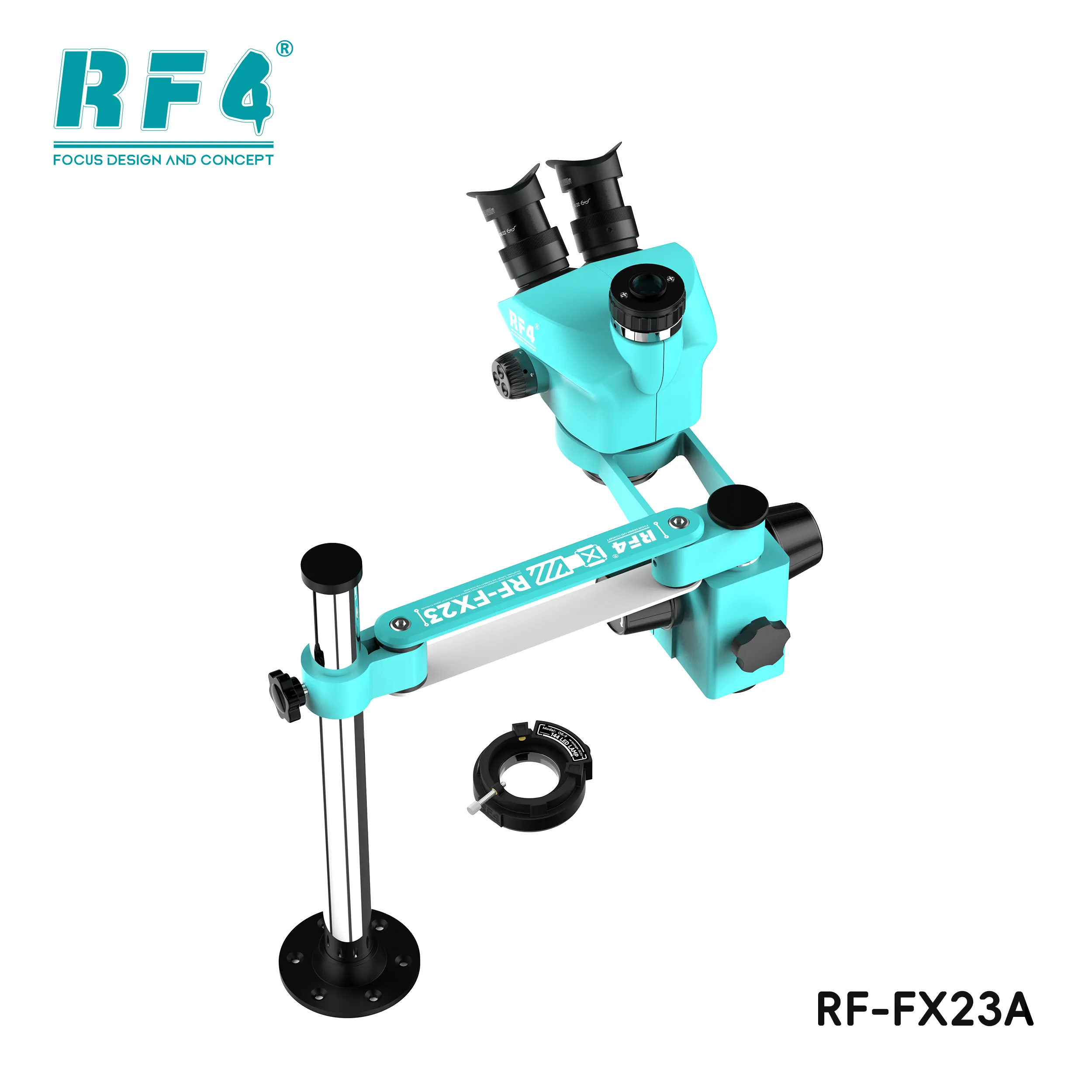

The stand sets this trinocular microscope for mobile repair apart from a fixed-post model. The folding arm swings freely across a 370 x 330mm stand, so you cover the whole motherboard without lifting it. Swing the head to one corner for a connector check, then bring it back over your hot air station for IC work. Fold the arm away when you need the full bench for screen jobs. A fixed post forces you to move the board. This arm moves the lens instead, which keeps your hands steady and your reference points in place.

Keep a PCB holder and a heat-resistant soldering mat under the lens and let the arm do the travelling. That setup suits a shop that handles many boards a day, because you stop re-aiming the microscope for every job. The set includes the microscope head, support, folding swing arm stand, 0.5X CTV adapter, dust-proof lens, LED light, and two eyepieces. If you need a wider stand, the RF-FX35A offers 370 x 370mm with the same 7-50X range.

Ring LED Lighting and Trinocular Camera Port

The ring light carries 144 LEDs with adjustable brightness. Light spreads evenly around the lens, so you read pad shapes, solder joints, and hairline cracks without harsh shadows. Raise the brightness for dark areas under shields and lower it when you inspect shiny solder balls.

The third tube is the trinocular port. It takes the 0.5X CTV adapter from the box, and you connect a microscope camera to it. Both eyepieces stay live while the camera records. You document the before and after of an IC change karna job, train a new technician on a monitor, or show a customer the exact fault. A recorded joint also gives you proof when a customer returns with the same complaint. The set does not include a camera, so you choose the sensor and resolution that fit your budget.

Where the RF-FX23A Fits in Your Repair Workflow

Put the microscope at the start and the end of every board repair. Inspect first: look for corroded pads, lifted traces, bent connector pins, and missing components. Then repair under the lens: micro-soldering on small passives, jumper lagana on broken traces, reballing preparation, and IC rework with your hot air station or soldering station. Inspect again after the job to confirm clean joints and no solder bridges. Start every job with a low-zoom sweep, then move to high zoom only where the fault sits. That habit saves time and keeps you from missing a second fault near the first.

Because the head covers 7X to 50X, one microscope handles a quick board overview and fine pad work, so you do not need a second low-power magnifier on the bench. Technicians who chase charging issue and display problem faults on tightly packed boards gain the most, since those faults often hide behind one damaged pin or one shorted capacitor. The RF-FX23A sits in the Microscopes category next to microscope cameras, PCB holders, reballing kits, and soldering mats. Build your bench around it, and move up to the RF-FX35A when you want the larger stand.
