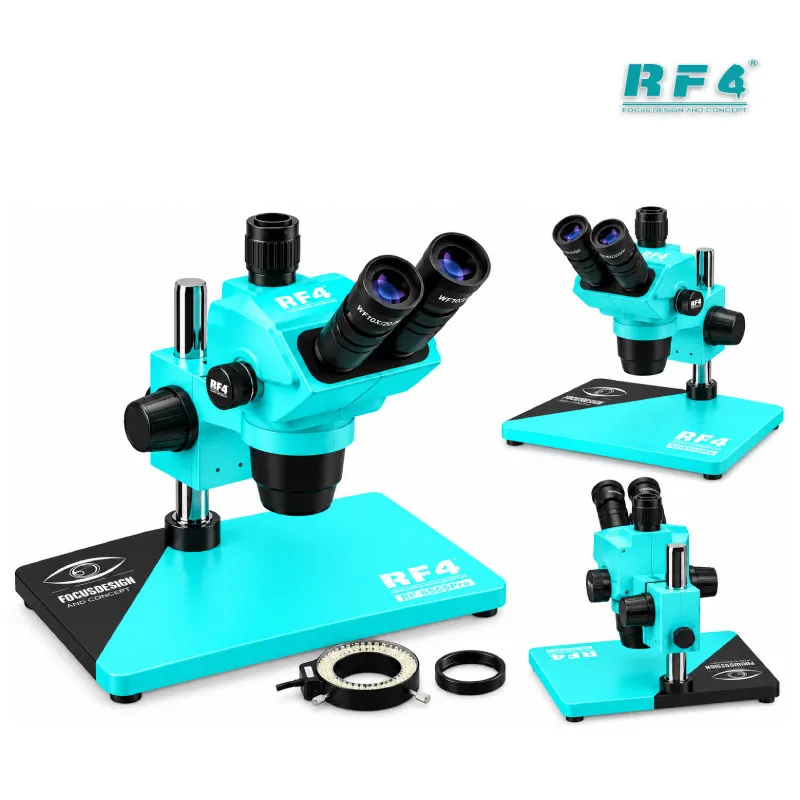

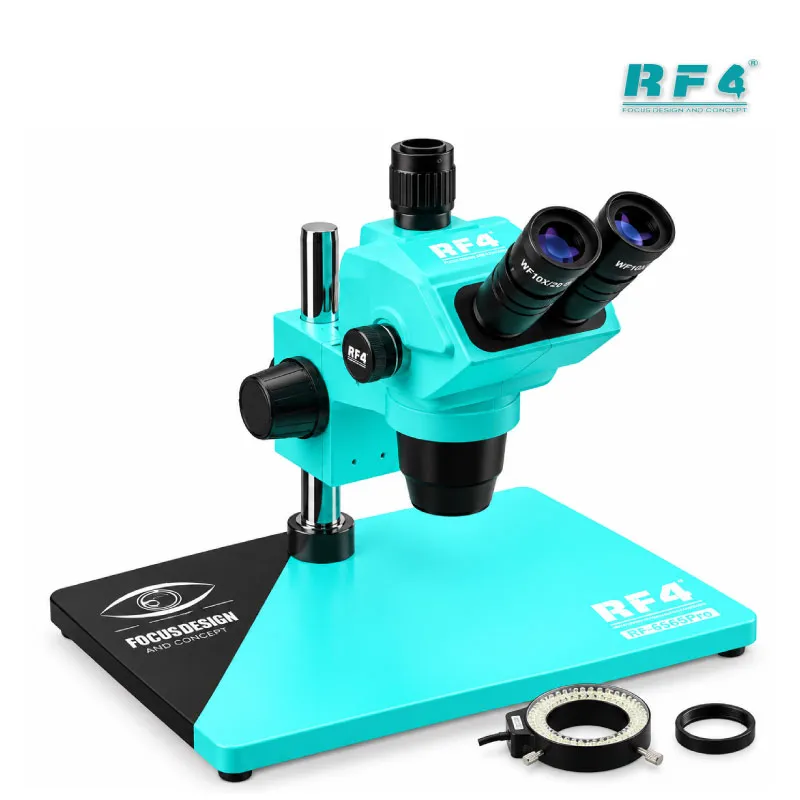

RF4 RF-6565Pro Trinocular Stereo Microscope Big Base

Professional Trinocular Stereo Microscope for Board-Level Repair

The RF4 RF-6565Pro is a professional trinocular stereo microscope for the mobile repair bench. You get a continuous 6.5X to 65X zoom range, a swiveling trinocular head, and a large aluminum alloy base that holds a full phone board without wobble. When a phone comes in dead, charging issue or no display, the fault often sits in a lifted pad, a cracked joint, or a burnt trace you cannot judge by eye. This microscope shows you that damage clearly, so you decide the repair before you touch the iron.

Optics and Zoom Range

The synchronous zoom runs from 6.5X to 65X through a 0.65X to 6.5X objective and WF10X wide-field eyepieces. Synchronous zoom keeps the image in focus as you change magnification, so you do not refocus every time you move from a full board view to a single IC corner.

Start low to locate the damaged area, then zoom in to check individual pins, pads, and solder balls. This stereo optical path gives you depth perception. You judge the height of a solder joint and the distance between pins, which a flat camera image cannot show you.

Trinocular Head and Camera Port

The head sits at 45 degrees and rotates a full 360 degrees. You adjust it to your seating position, or turn it for a second technician standing beside you. That matters in training institutes and busy workshops where one bench serves two people.

The third tube is the trinocular port. A compatible camera adapter turns it into a recording and display station. Technicians use this to show a customer the actual hardware fault, to train junior staff on a live board, or to keep a visual record of a job. Confirm the camera adapter and lens in your package with the seller, since configurations vary by listing.

Big Base and Stand Stability

The large aluminum alloy base is the main difference between this model and a standard stand. It gives the column a wide footprint, so the microscope stays steady while you press a hot air nozzle against a board or reposition a PCB holder. The column measures Φ32mm and the lens mount measures Φ76mm, with 155mm center distance. The unit weighs about 7 kg, and that mass absorbs vibration at 65X, where small bench shakes blur the image.

Place your board, PCB holder, and tools on the base and keep the whole job inside the field of view.

Light and Lens Protection

The 144 LED adjustable light lights the board evenly and cuts shadows around tall components. You raise or lower the brightness to match the board color and the magnification you use. The dustproof lens protects the objective from smoke generated during soldering. Flux fumes and dust reduce image clarity over time, so a protected objective keeps your view clean through daily use.

Where It Fits in Your Repair Workflow

You use the RF-6565Pro at three points in a board-level repair. First, diagnosis: inspect the board for corrosion, burnt tracks, and damaged connectors after a hardware fault is confirmed. Second, rework: watch the solder reflow while a hot air station lifts a CPU, eMMC, UFS, or power IC, then confirm the pads are clean before you place the new chip. Third, inspection: check the finished joints, bridges, and alignment before you power the phone up.

Technicians who run box chalana and software marna jobs also need it. A phone that stays dead after flash or hangs on logo often needs ISP or eMMC pin work, and ISP pinout points are small. At 65X you land the probe or wire on the right test point the first time.

Who Should Buy It and What to Pair With

Buy the RF-6565Pro if you run a repair shop, a service center, or a training institute and handle board-level repair daily. Pair it with a hot air station and a soldering station for rework, a multimeter and test box for diagnosis, a PCB holder to fix the board, and a reballing kit when you replace BGA chips. If you work on ISP pinout jobs, add an ISP pinout tool or UFS adapter to the same bench. This microscope forms the base of that setup, because every other tool works better when you can see the work.
