RF4 RF-55P-B52 6.5-55X Trinocular Microscope

RF4 Trinocular Microscope RF-55P-B52: 6.5-55X Optics on the B52 Base

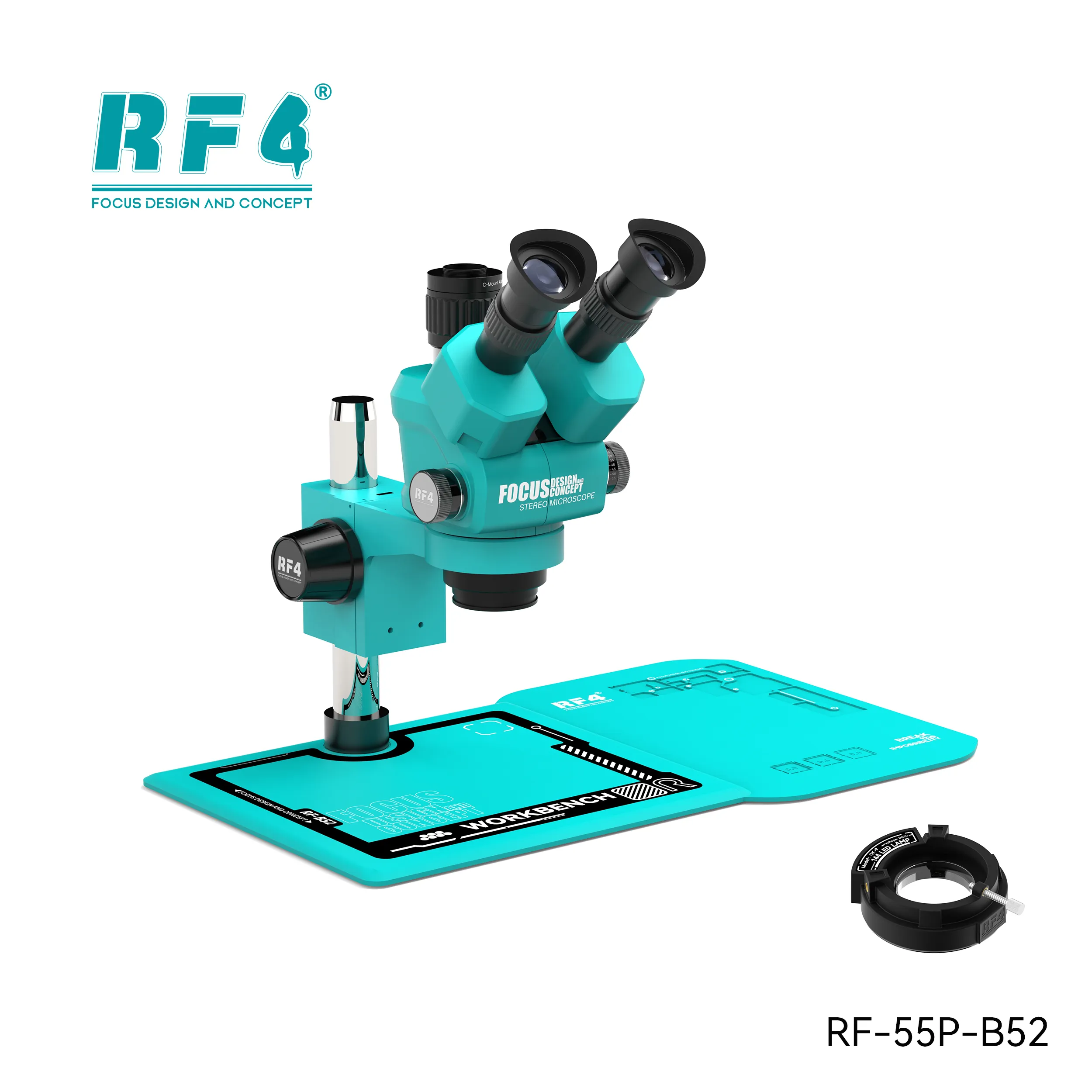

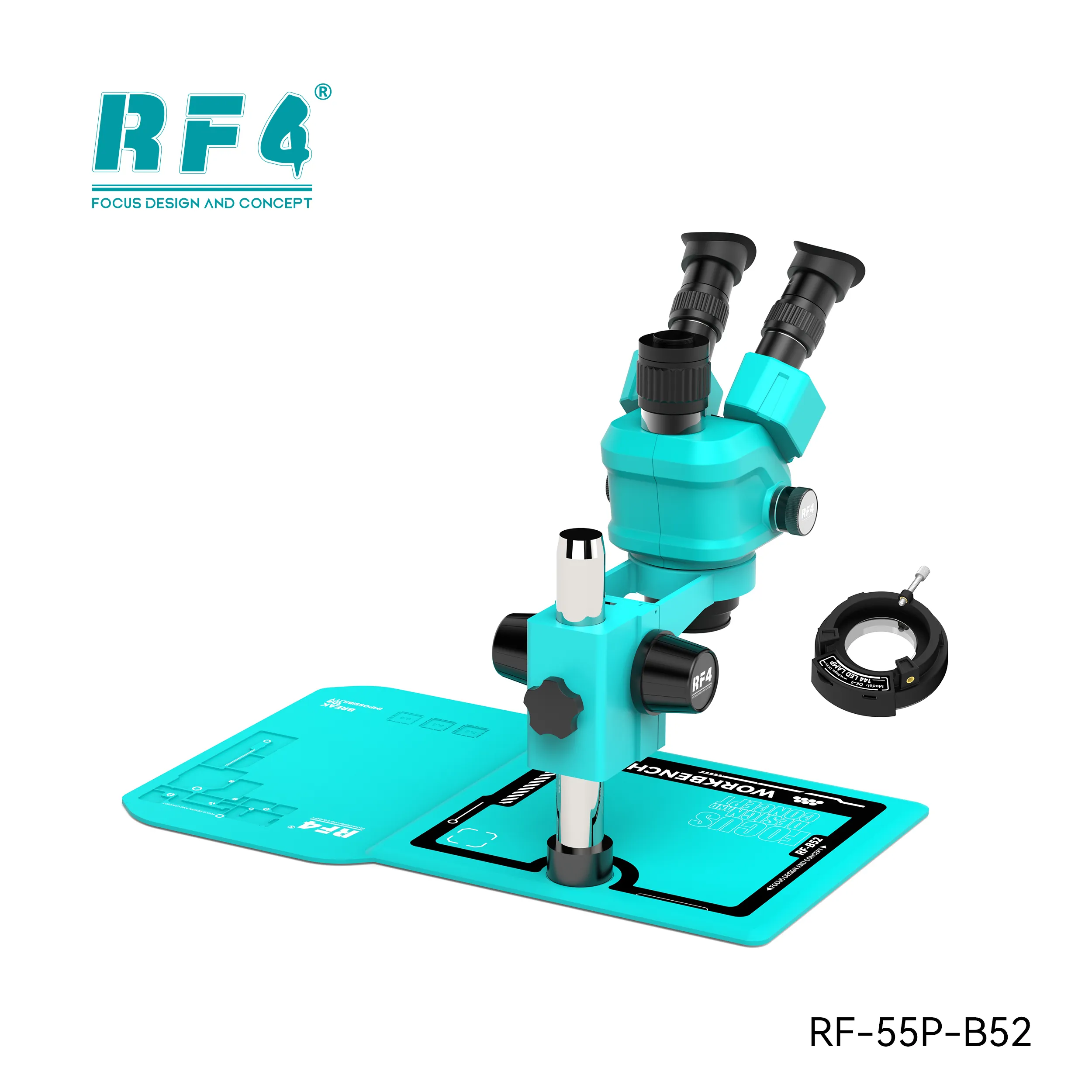

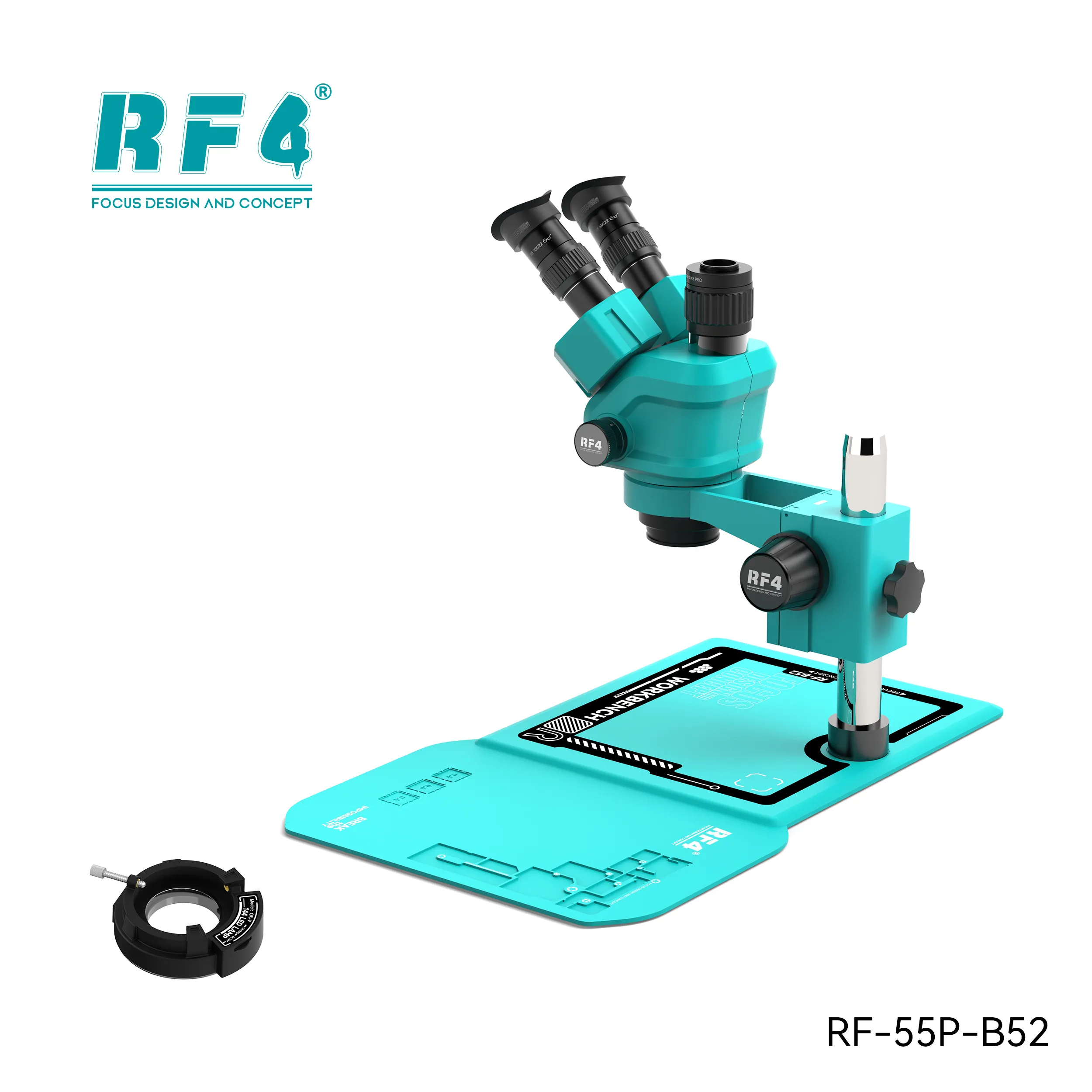

The RF4 trinocular microscope RF-55P-B52 pairs the RF6555PRO optical head with the oversized B52 silicone base. You get 6.5X to 55X continuous synchronous zoom and a seven-gear metal zoom lock. A 0.48X CTV port holds your monitor and eyepieces at matching magnification. This kit targets board-level work: BGA rework, underfill removal, IC change karna, and jumper lagana on lifted pads. Every part of the stand serves the solder joint under the lens.

The RF6555PRO Head and Its 6.5-55X Range

The head runs a 6.5X to 55X continuous zoom on a 45-degree inclined trinocular body that swivels a full 360 degrees. You can rotate the head toward a second technician or around a cable without moving the board. WF10X/22mm wide-field eyepieces give a broad view at low zoom. You scan a full logic board section, find the burnt area, then zoom straight in on the suspect capacitor.

Stereo optics give you real depth. You judge solder ball height, lifted pads, and IC tilt directly. A single-lens digital microscope flattens that depth out. On a stacked iPhone board or a dense Android PMIC area, depth tells you whether a joint has cracked or only looks dull.

The RF6555PRO head works at roughly 10cm above the surface. That clearance leaves room for an iron tip, a hot air nozzle, and tweezers in the same field. A dust-proof protective lens sits under the optics. Flux smoke and solder splatter hit that replaceable glass first, not the main optical path.

Seven-Gear Zoom Lock and Height Limit Lock

The RF-55P-B52 adds a metal zoom lock knob with seven fixed gear positions. This is the key difference from the base RF-55-B52 kit. Each detent drops the zoom onto a repeatable magnification. Your eyes and your camera return to the same scale every time you step back to inspect.

Repeatable stops matter during reballing. You align a stencil at one gear and check ball formation at a higher gear. Then you drop back down without hunting for focus. The same applies when you compare a working board against a dead phone board, point by point.

The limit lock fixes the head height on the column. Set focus once for a standard board thickness. After you lift the head to clear a hot air nozzle, it returns to that exact height. A dustproof system around the zoom body keeps flux vapor from settling inside the optics over months of daily rework.

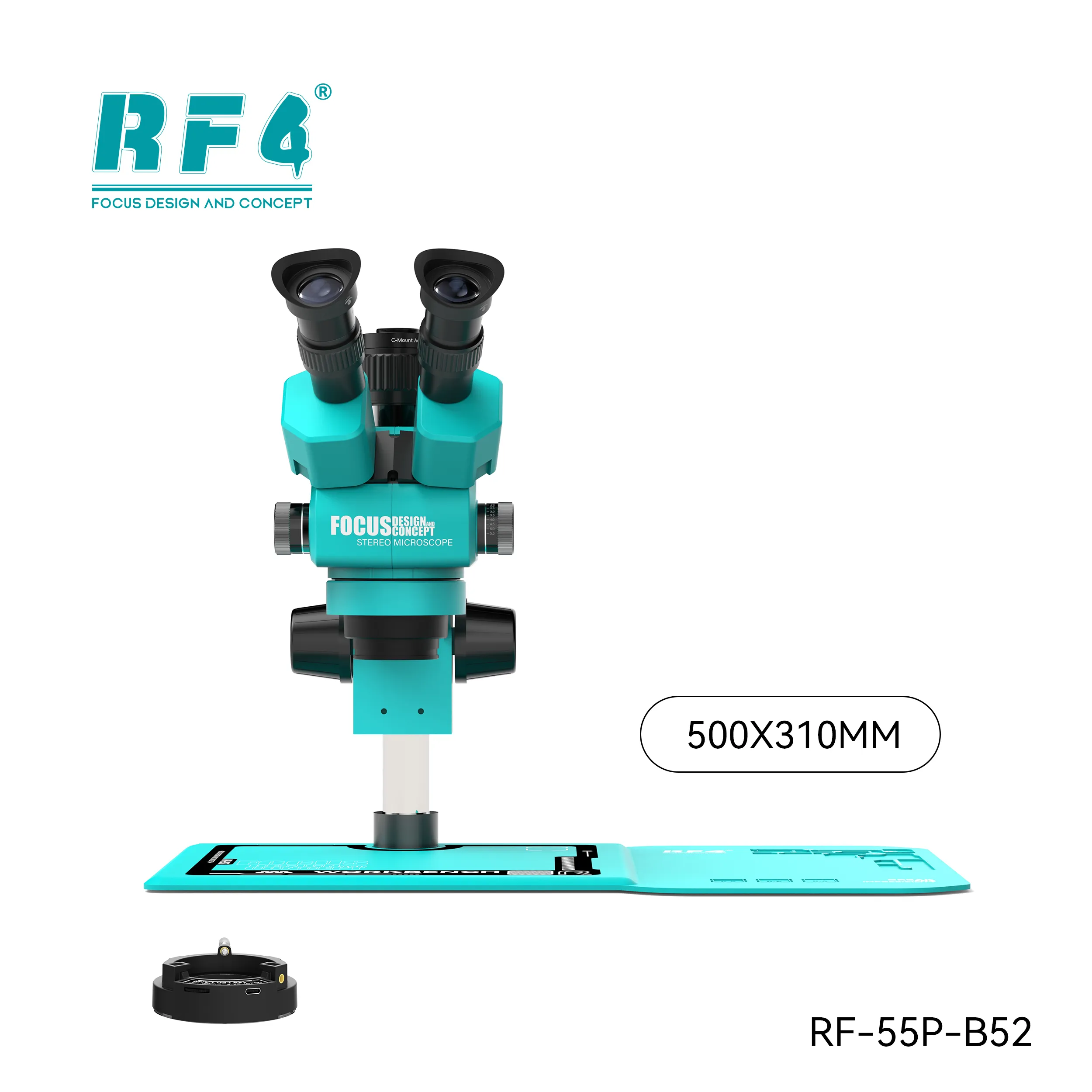

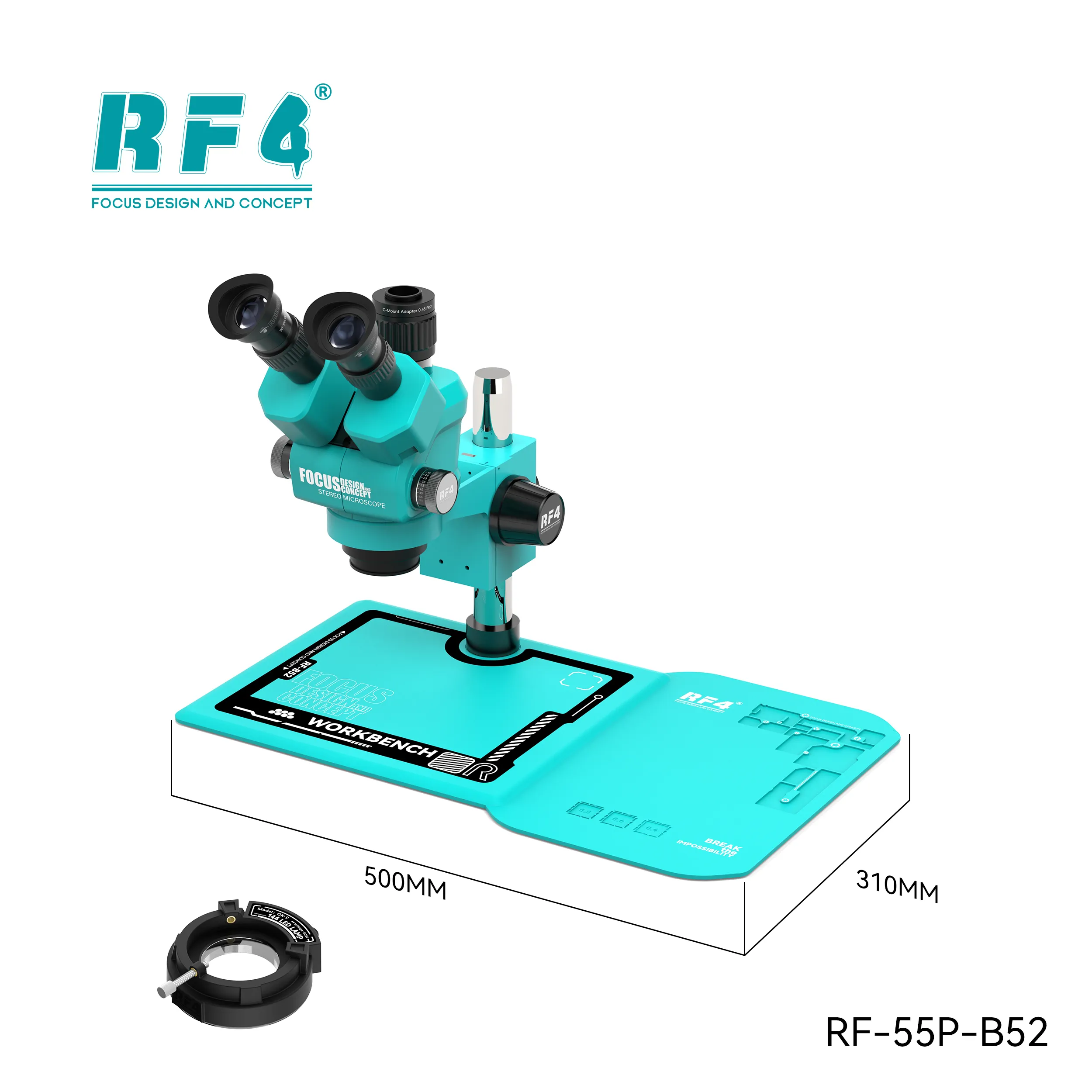

B52 Base: 310 × 500mm Heat-Resistant Silicone Surface

The B52 base replaces a plain alloy plate with a 310 × 500mm high-temperature silicone pad that has a built-in metal plate. The metal core keeps the pad flat and gives the stand real weight. The column stays steady when you slide a board under the lens or press down with tweezers.

A screw positioning grid in the surface holds every screw by location. You strip a phone, drop each screw into its matching spot, and reassemble without errors. A long screw in a short hole can crack an inner board layer or cause a display problem after an otherwise clean repair. The grid removes that risk.

A magnetic slot keeps tweezers, shields, and small metal parts within reach. The silicone surface takes direct hot air and iron contact, so you work on the base itself with no separate mat. Clamp a PCB holder on the pad and your full rework bench fits under one microscope footprint.

0.48X CTV Port and 144 LED Ring Light

The third port carries a 0.48X Pro CTV adapter. Your monitor and eyepieces zoom in sync, so the screen image matches the eyepiece view at every gear. Mount a C-mount HDMI or USB camera on the CTV to record jobs. You can also train junior technicians on screen or show a customer a corroded charging IC before you quote the repair.

The 144-LED ring light mounts around the optics and lights the board evenly from every angle. Even light removes the shadows that hide a cracked joint under a shield frame or a hairline break in a trace. Set the brightness lower for shiny new boards and higher for dull, flux-covered ones.

Where the RF4 Trinocular Microscope Fits in Your Repair Workflow

The RF4 trinocular microscope sits at the centre of every board-level stage. Diagnosis comes first. You trace a charging issue to a burnt diode, find a missing filter behind a network issue, or spot corrosion under a PMIC on a water-damaged phone. Each of those hardware faults starts with a clear view.

Rework comes next. Pair the head with a hot air station for IC removal and a soldering station for jumper lagana on lifted pads. Reballing kits and stencils use the full zoom range, since you inspect every ball before you seat a CPU or eMMC. Finish with a high-gear inspection, then power the board on a DC supply and check the rails with a multimeter.

The RF-55P-B52 covers that whole loop on one stand. Shops that want more eyepiece adjustment for long shifts can step up to the RF-55PM-B52 (RF6555PRO MAX), which adds adjustable-focus eyepieces on the same B52 base. Shops on a tighter budget get the same zoom range, CTV, and base in the RF-55-B52 without the seven-gear lock.
