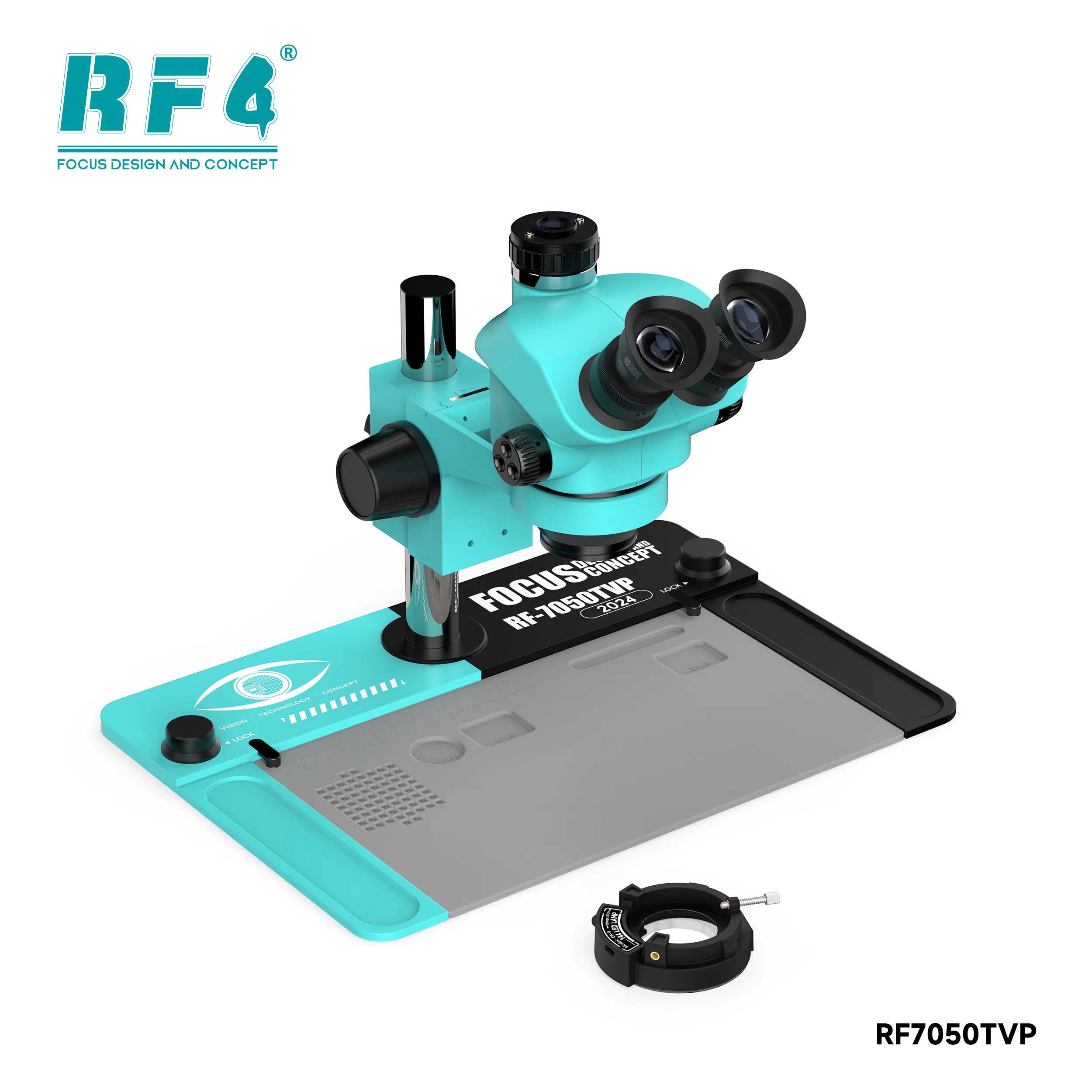

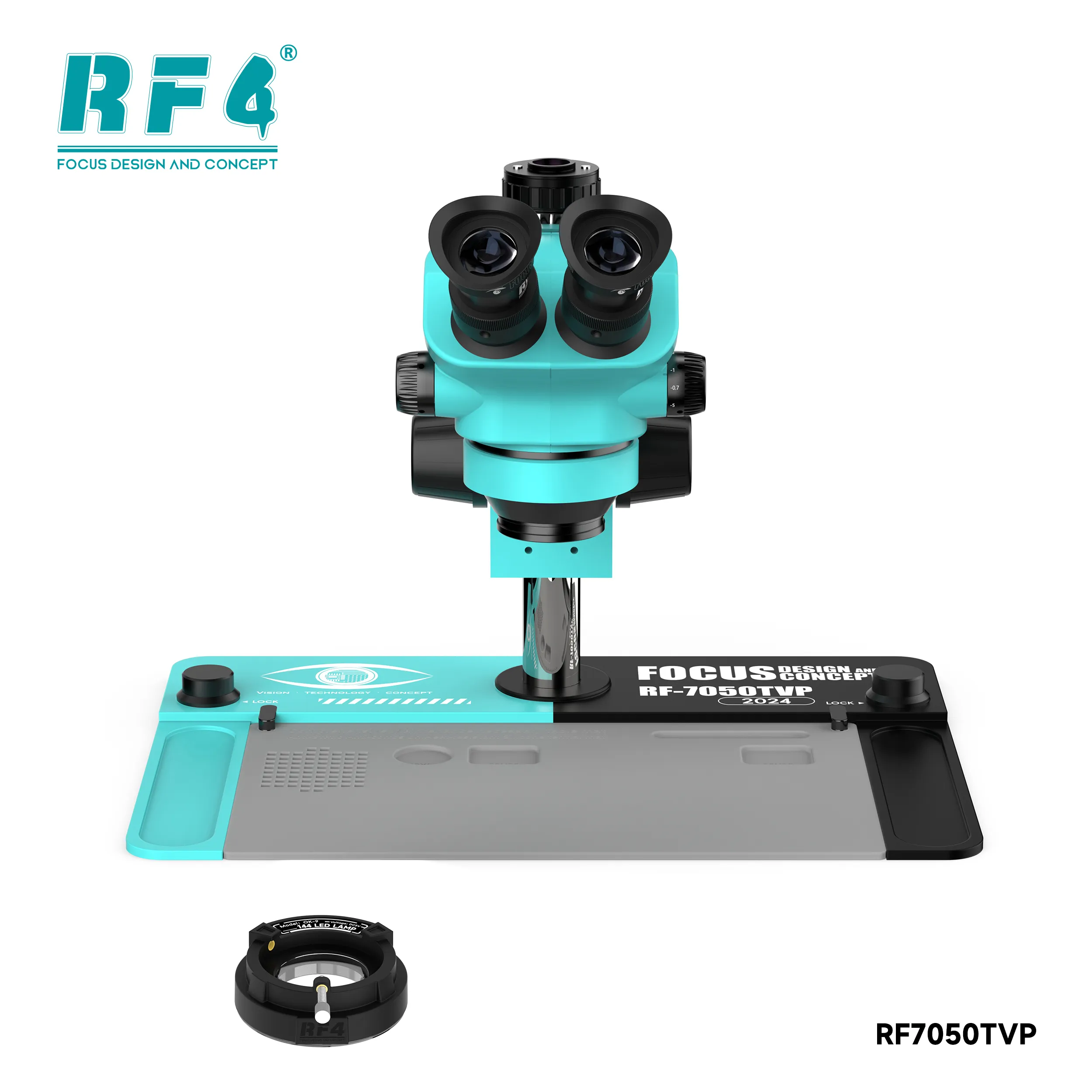

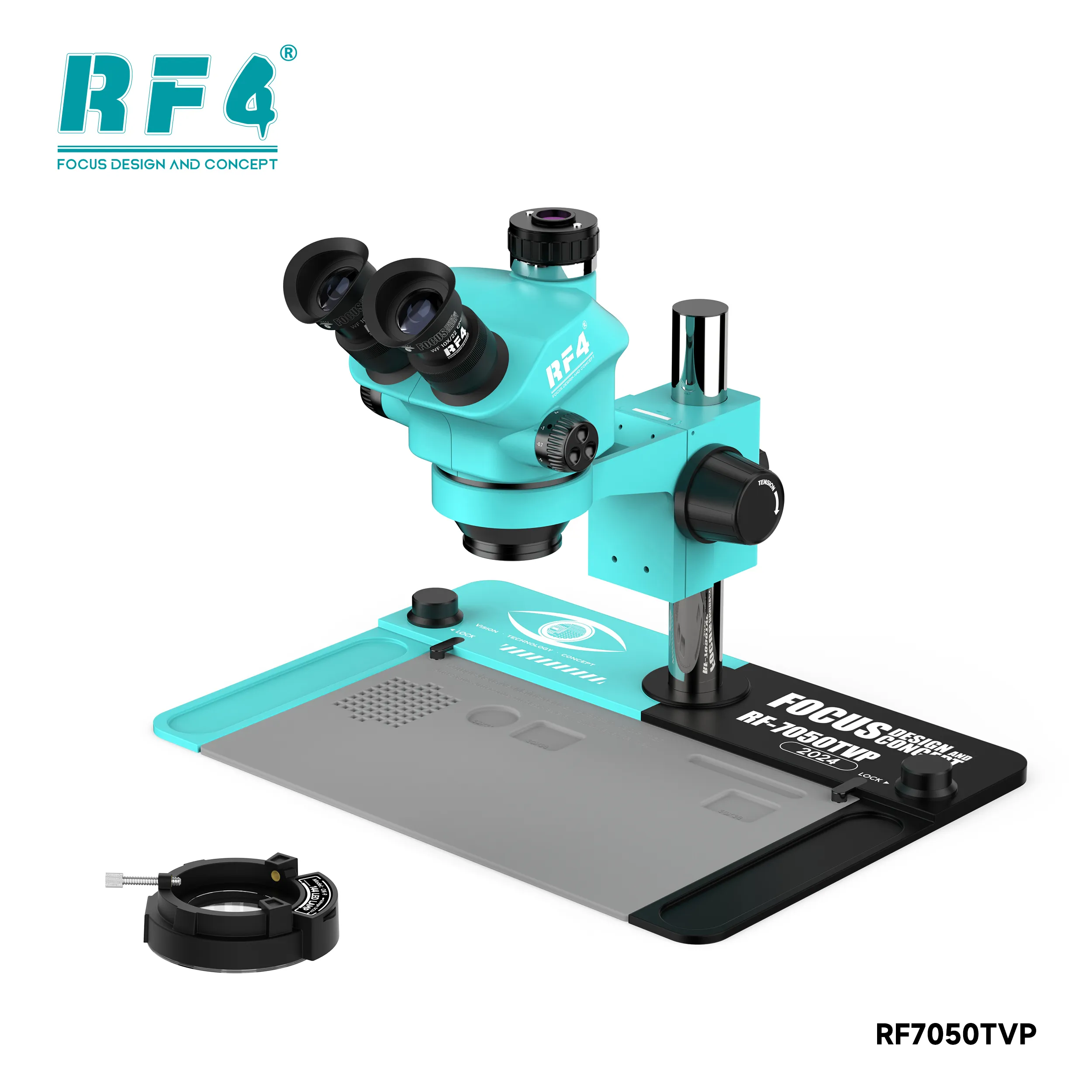

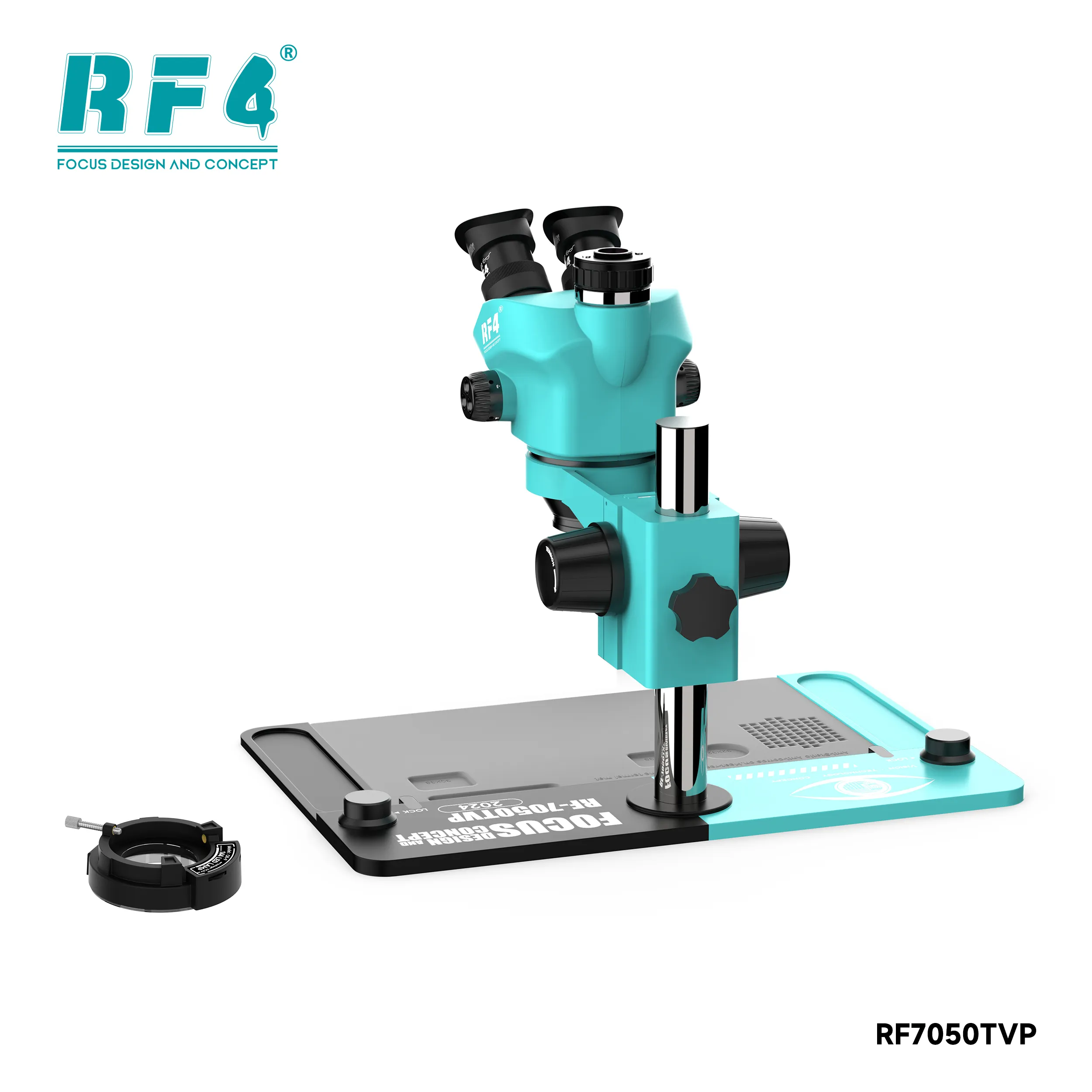

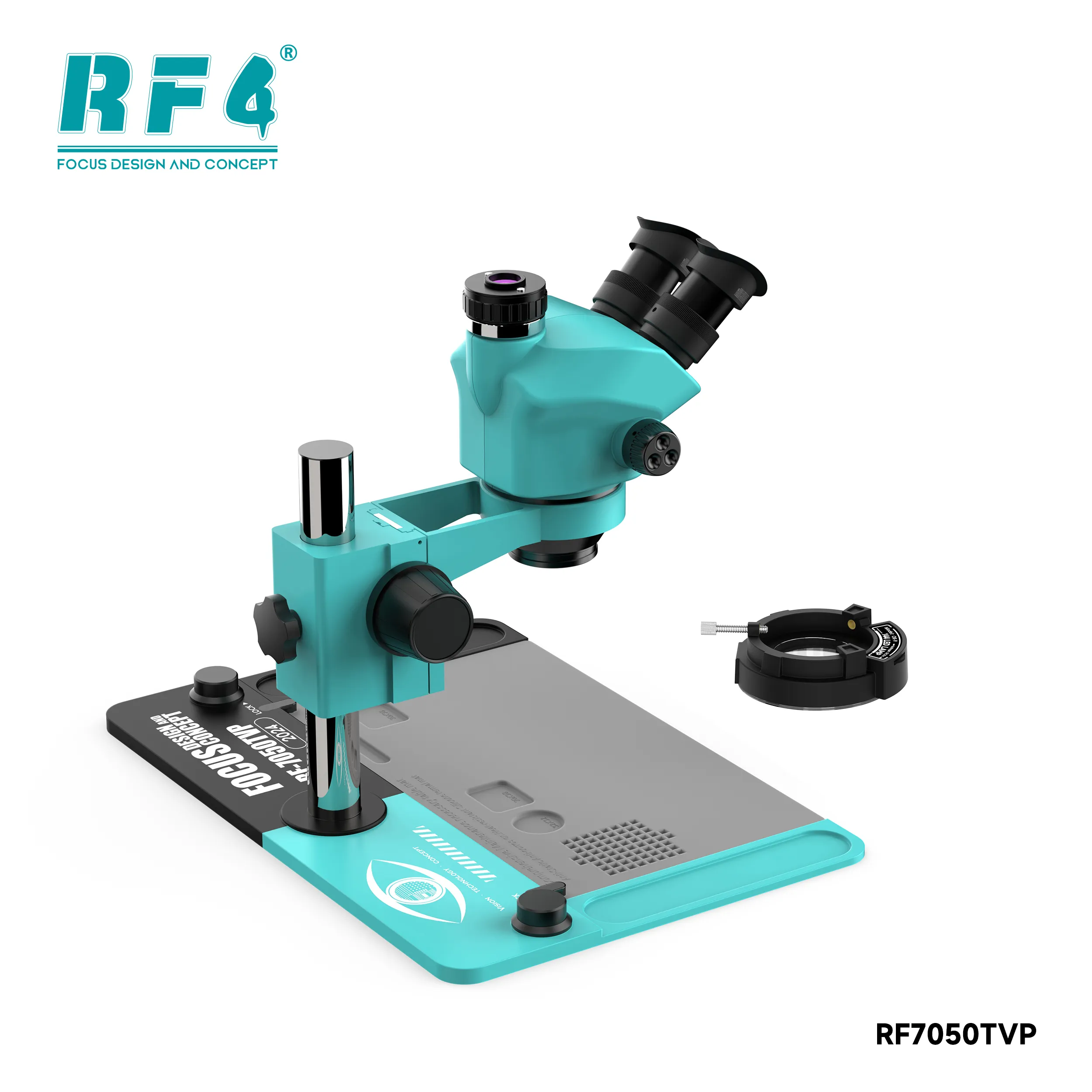

RF4 RF7050TVP+ Trinocular Microscope 7-50X

Professional Trinocular Microscope for Mobile PCB Repair

The RF4 RF7050TVP+ is a professional trinocular microscope built for the mobile repair bench. It gives you continuous 7X–50X zoom, a trinocular head for camera output, and enough working distance for tweezers, a soldering iron, and a hot air nozzle. If you handle IC change karna, reballing, and trace repair on dead phones every day, this scope puts board-level detail in front of you without eye strain. One microscope covers your phone, tablet, and laptop boards.

Optics Built for Board-Level Detail

Two WF10X/22mm wide-angle eyepieces pair with a 0.7X–5X continuous zoom objective. That gives you 7X–50X total magnification. You zoom from a full-board overview down to a single pad in one smooth movement. Both eyepieces carry diopter adjustment, so you set each eye separately and keep a sharp view through long sessions, even without glasses.

The optical elements carry a coating that improves clarity, and the standard working distance reaches up to 100mm. You hold an iron tip, tweezers, and a hot air nozzle under the lens without bumping the housing. Stereo viewing gives you true depth, so you judge component height and solder fillets by eye. The wide field lets you scan a motherboard for burnt parts and corrosion without repositioning the board every few seconds.

Trinocular Head and Camera Output

The head tilts 45 degrees and swivels 360 degrees. You set the angle for your seat height and bench position instead of bending toward the scope. The third port takes a CTV adapter and a camera. The RF7050TVP series uses a 0.5X CTV lens and a 1/2 CTV camera connector, and the monitor zooms in sync with the eyepieces.

A camera view helps you in two ways. You show a customer the lifted pad or corroded track behind a hardware fault diagnosis. You also give a new technician a clear reference for pad layout and reflow timing. Package contents differ between RF7050TVP configurations, so confirm whether your unit ships with a camera and monitor before you order.

Professional Trinocular Microscope Workflow Fit

Mobile repair runs under magnification. A phone dead after flash or liquid damage needs a pad and trace inspection before you reach for the multimeter. When you do IC change karna on a charging IC, power IC, or audio IC, you check pad condition under the scope, apply flux, and confirm every joint after reflow from your hot air station. Reballing kit work needs the same view: you confirm stencil alignment and ball placement at 30X–50X.

Jumper lagana on broken tracks, charging port repair, and display flex pad cleanup all demand steady zoom control. Before you start box chalana on an eMMC or UFS job, inspect your ISP pinout wires and adapter solder points. A single bridge there causes a hang on logo or a dead phone, and the scope catches it before you power on.

Pakistani repair shops often run phone, tablet, and laptop boards on one bench. The 7X–50X range handles large laptop ICs and small phone passives alike. Samsung, Oppo, Vivo, Infinix, Tecno, and iPhone boards all work under the same optics, since the scope does not depend on phone model.

Lighting, Stand, and Bench Setup

An adjustable ring LED mounts around the lens and lights dense boards without shadows. You control brightness, so shiny flux and tinned pads do not glare back at you. A dust-proof lens cover protects the objective from flux fumes, oil, and heat splatter, which extends the life of your optics.

The stand uses a 32mm pillar column that holds the head steady while you adjust zoom. Several RF7050 listings include a silicone repair pad, which keeps small screws and parts from rolling off your bench. Package accessories vary by configuration, so check the box contents with your order.

Place the pillar so the head sits directly above your work area. Wipe the lens cover instead of the objective, and cap the scope at the end of each shift.

Upgrade Path and Shop Fit

If you work with a magnifier lamp or a basic binocular scope, the RF7050TVP+ gives you continuous zoom and camera output on the same bench. Multi-technician shops benefit from the camera port: one technician records a repair while another reviews it. RF4 also lists optional camera models for this series, so you build the setup in stages.

Pair the microscope with a hot air station for BGA rework, a soldering station for micro-soldering, and a PCB holder to lock boards in place. Keep a multimeter and test box nearby for fault diagnosis before and after each repair. The scope then covers the inspection step of your full repair workflow, from first check to final test.
