RF4 RF-H861 Spiral Air Hot Air Gun Rework Station

RF4 RF-H861 Spiral Air Hot Air Gun for Mobile Board Rework

The RF4 RF-H861 spiral air hot air gun does one job: it puts controlled heat on a mobile phone board. You lift the handle, the station wakes, and the segment display shows what the gun is doing right now. Most bench problems with hot air come from airflow that pushes small parts around and from settings you retype every time you switch jobs. The RF-H861 attacks both. Its spiral air outlet softens the airflow, and three memory buttons keep your settings one press away. If your shop handles daily IC change karna, dead phone checks, and boot loop issue boards, this station fits straight onto your bench.

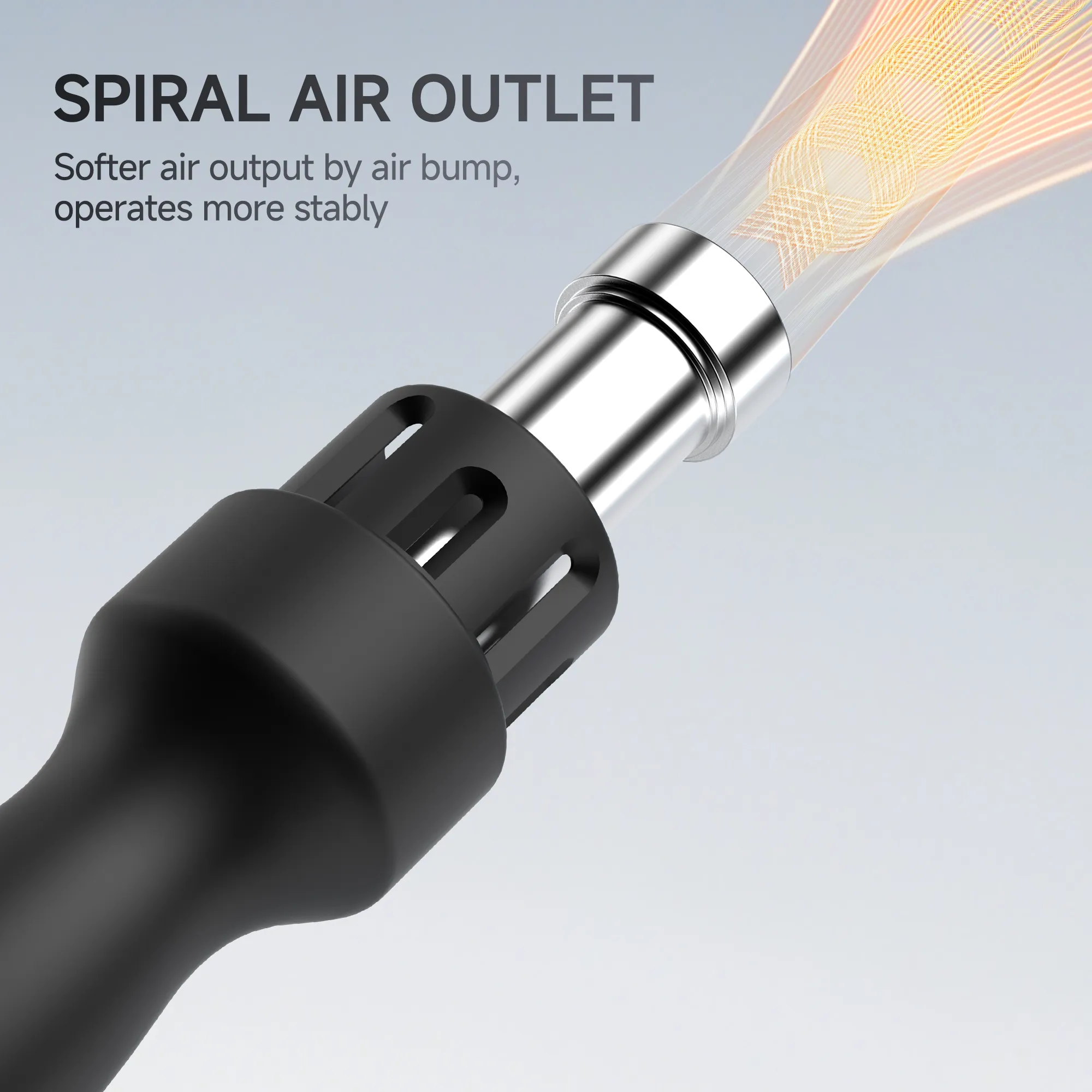

Spiral Air Outlet: Softer Output, Steadier Work

Airflow decides whether a small IC lifts clean or sends its neighbours flying. The spiral air outlet on the RF-H861 gives a softer air output, and the unit runs stably, so the stream stays predictable while you work. Technique still matters. Preheat the board, add flux, and keep the nozzle moving in small circles over the component instead of parking it in one spot. The softer airflow gives you more room to work that way without nudging nearby capacitors and resistors. Dense mainboards from Samsung, Oppo, Vivo, Infinix, and Tecno phones pack tiny parts close together around the CPU, PMIC, and charging IC, so a calmer airstream makes those neighbourhoods less stressful to work in. Pick the smallest nozzle that covers your target chip and shield plastic connectors with heat-resistant tape before you start.

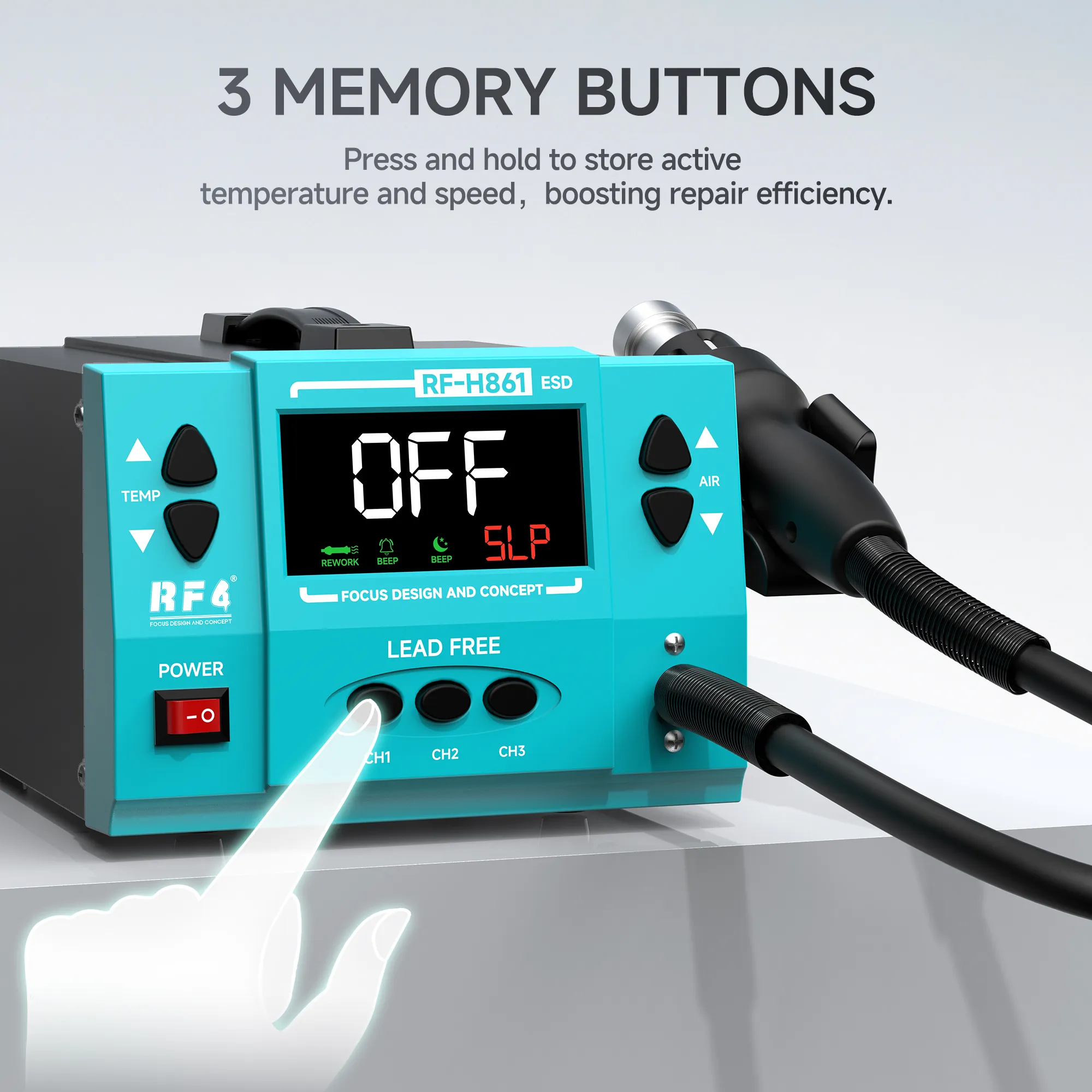

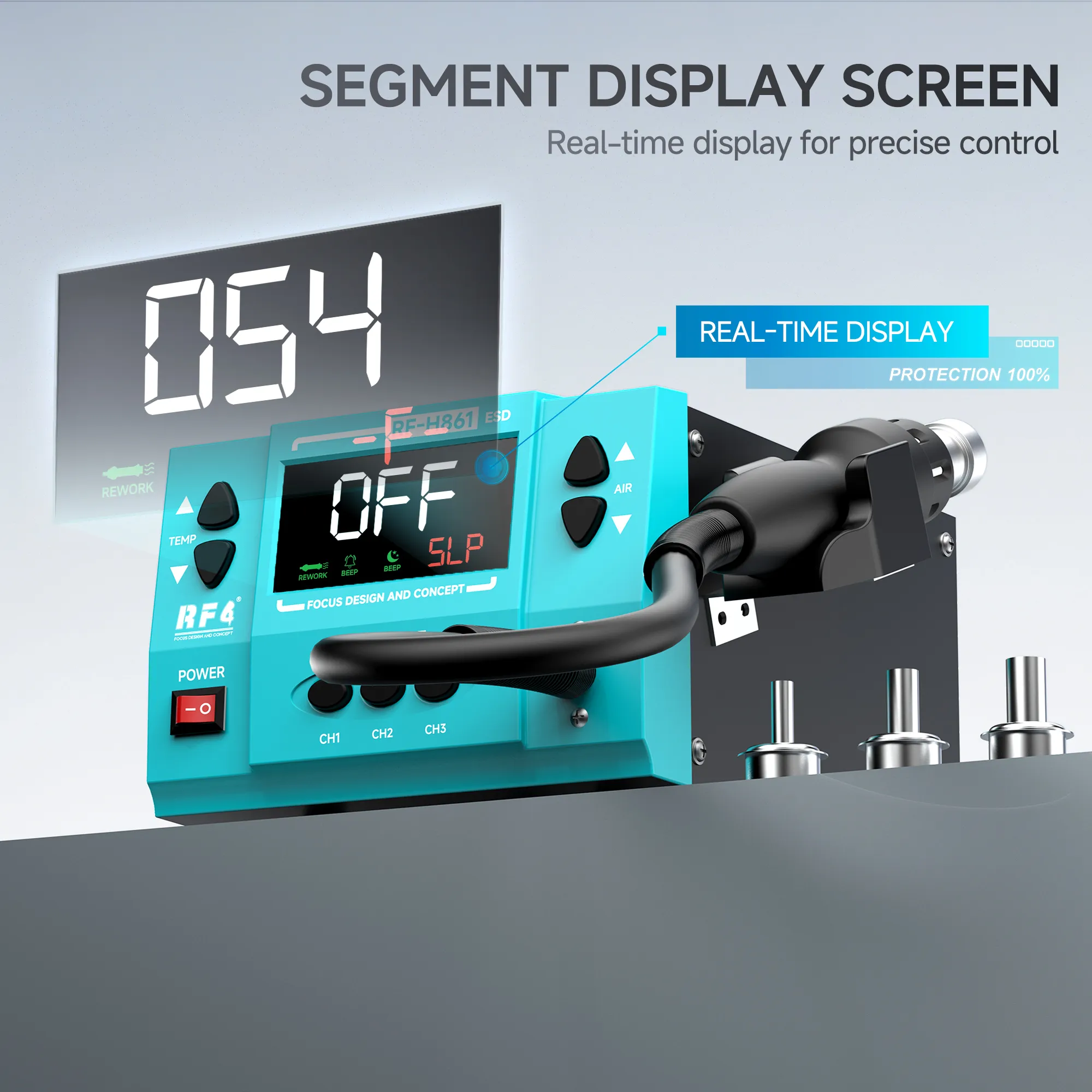

Three Memory Buttons and a Live Segment Display

Every shop repeats the same jobs: charging IC replacement, shield can removal, eMMC lifting. Find the temperature and airflow speed that suit each job once, then store them. Press and hold a memory button to save the active temperature and speed. That saves minutes on every board and removes the guesswork on the next one. Many technicians dedicate one memory to small ICs, one to larger chips and shield cans, and one to connector work. Write your preferred values on a note beside the station so everyone on your bench starts from the same numbers. The segment display shows live readings, so you confirm the values before the nozzle touches the board.

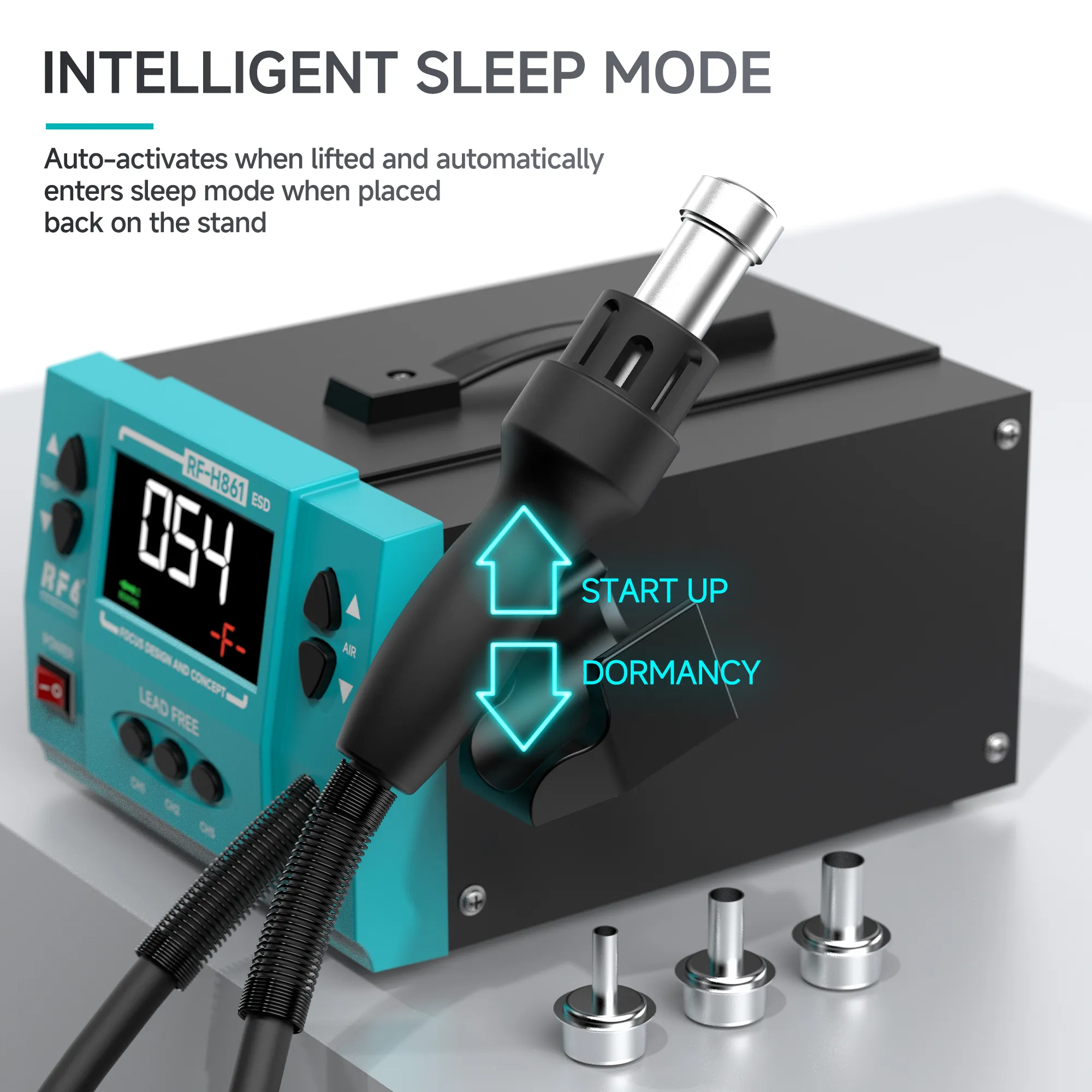

Auto Sleep with the Magnetic Handle Bracket

Lift the handle off the stand and the station activates. Rest it on the stand and the station enters sleep mode automatically. You skip the power switch, which matters when you jump between the microscope, the multimeter, and the board every few minutes. Park the handle on the bracket whenever you stop to check a reading, swap a part, or clean pads. The magnetic switch handle bracket ships in the package, so the stand is part of the working system and not an optional extra.

Where the RF-H861 Fits in Your Repair Workflow

A dead phone rarely arrives with a clear diagnosis. You start with a multimeter and check for a short on the main rail, then you inspect the board under a microscope. Once you find the faulty IC, the hot air gun comes in. You lift the chip, clean the pads, reball the part if the job needs it, and place the replacement. The same flow covers boot loop issue boards, hang on logo faults, charging issue repairs, display problem boards, and network issue boards where a hardware fault hides behind the symptom. On eMMC and UFS jobs, you lift the chip with hot air, prepare it with a reballing kit, then move to your ISP pinout tools, eMMC programmers, or UFS adapters for the data side. Test boxes cover the software side when a phone goes dead after flash. A soldering station handles fine touch-ups, and a PCB holder keeps the board steady while the RF-H861 does the heating.

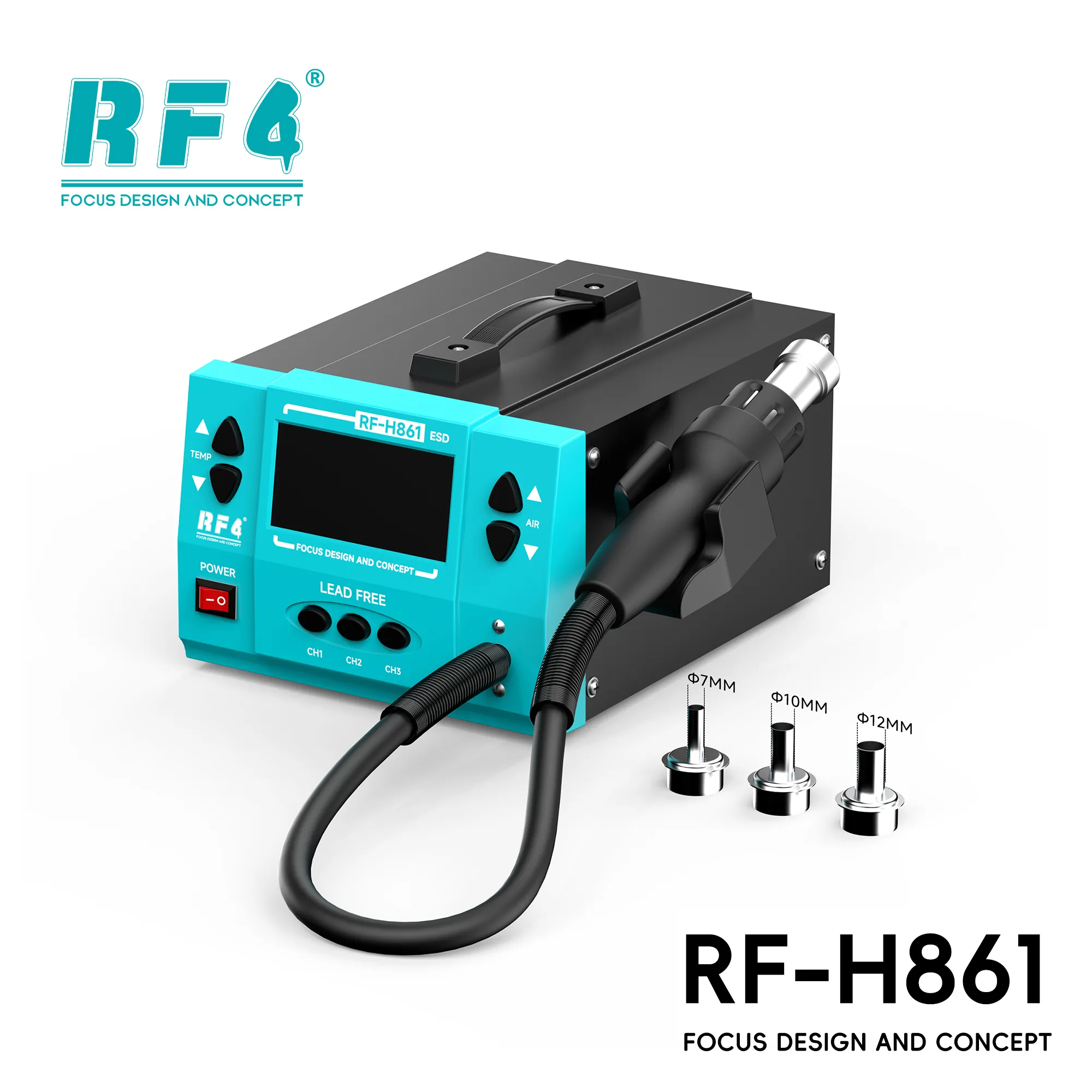

Package Contents and Voltage Options

The RF-H861 ships as a complete bench kit. You get the desoldering rework station, one hot air gun handle, one magnetic switch handle bracket, and three nozzles. Choose 110V or 220V when you order, and confirm the rating matches your supply before you plug in. Repair shop owners replacing a worn hot air gun, service centers adding a second rework seat, and training institutes equipping a new bench all get a ready-to-use setup from one box.
