RF4 RF-ID01 Motherboard Coil Tester

Motherboard Coil Tester for Fast Inductor Fault Checks

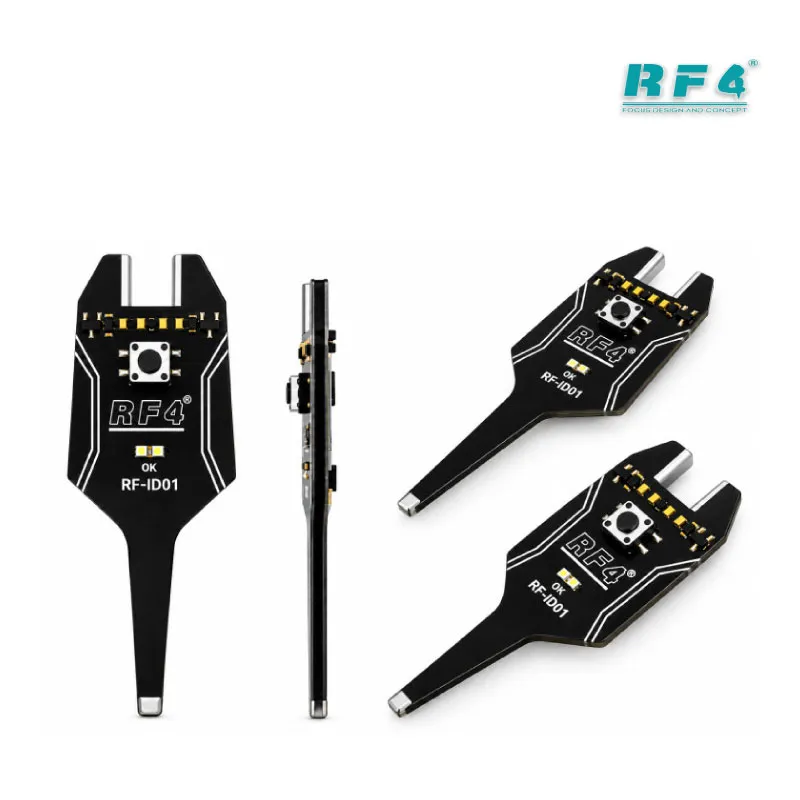

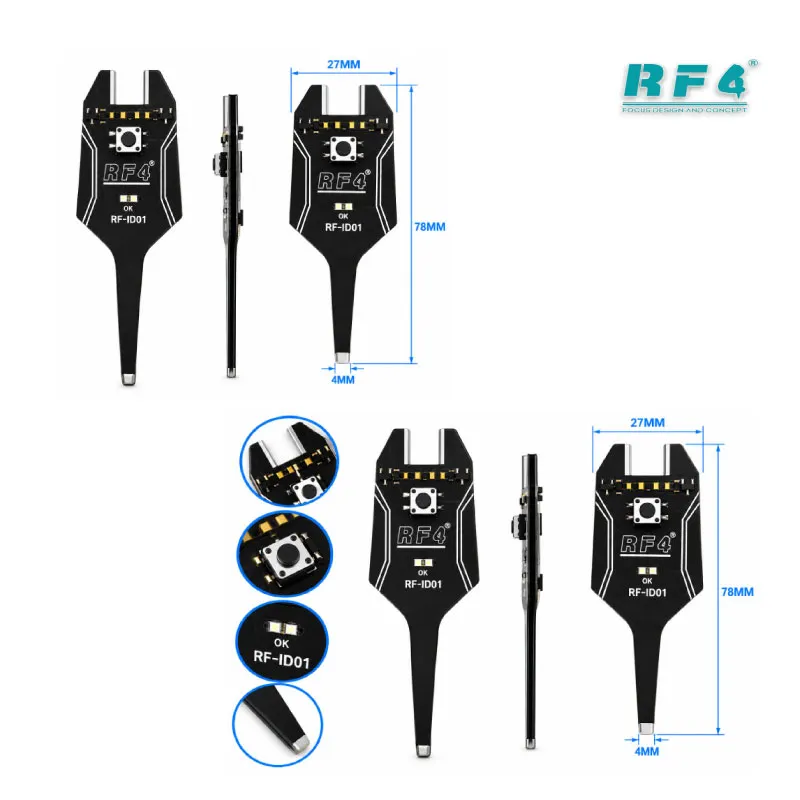

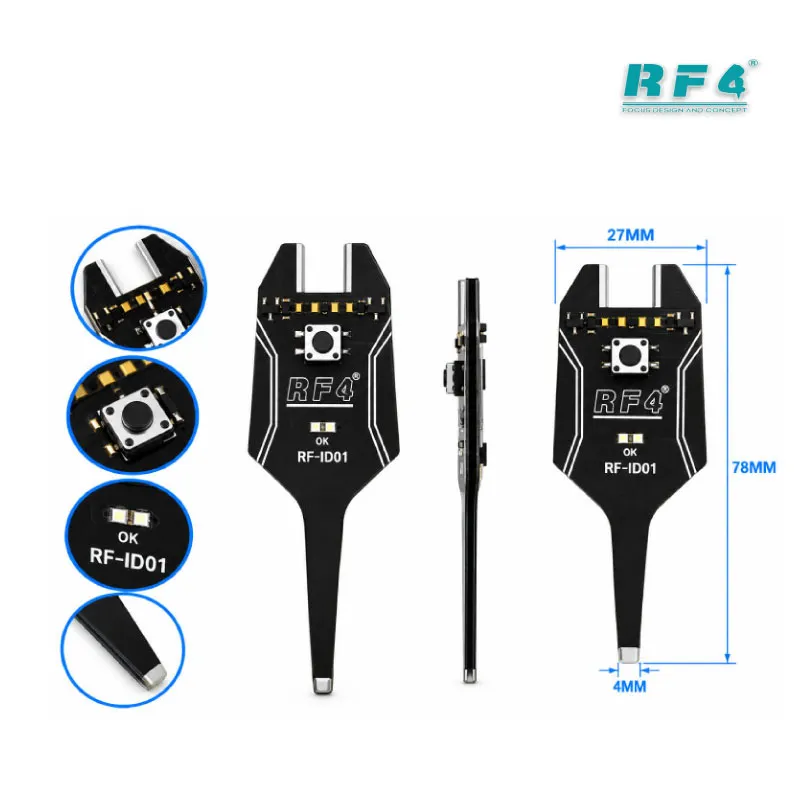

The RF4 RF-ID01 motherboard coil tester gives you a fast way to judge inductor quality on a phone board before you commit to a repair path. You know the pattern: a dead phone, a charging issue, or a hardware fault where nobody checked the buck coil. The RF-ID01 uses electromagnetic induction to test the quality of inductors on mobile phone, tablet, and smart electronic device motherboards. A Type-C plug-in design keeps setup simple, and the tool does one job: it locks onto the fault point quickly. RF4 Tools Pakistan stocks it for technicians who want a dedicated coil checker instead of improvising with general instruments.

Where It Sits in Your Board-Level Workflow

Start coil testing after the visual inspection and before you swap parts. A dead phone often points to the power section, and inductors in that section take the blame for many charging and power faults. The RF-ID01 lets you check those coils in a short, repeatable step instead of lifting components on a hunch. When a coil checks out, you cross it off and move to the next suspect. When a coil proves faulty, you know your IC change karna or coil replacement has a reason behind it. That discipline protects your margins, because you stop replacing good parts and stop returning boards to customers with the same fault. On a charging issue board, check the coils around the power section first. Technicians who repair boards in volume benefit most, since the plug-in operation keeps each check quick.

Practical Value for Pakistani Repair Shops

Shop owners in Pakistan work with tight turnaround and mixed board types. Phones from different brands, tablets, and other smart devices all land on the same bench, and each board carries its own set of coils. A universal coil tester covers that variety because it checks the inductor itself, not one specific model. You get one tool across your whole intake instead of a drawer full of model-specific fixtures. Fast fault checks also shorten the time between intake and quote, so you give customers a clear answer sooner. Service centers use it as a training tool too: junior technicians learn to judge a coil before they reach for the hot air station or soldering iron. Keep it at the diagnostic station so every technician follows the same first check.

Pairing the Tester With Your Bench Tools

Coil testing works best as one step in a full diagnostic chain. Use a multimeter to check rails and continuity, then bring in the RF-ID01 to judge the inductors on the suspect line. A microscope helps you inspect pads and solder joints around the coil, and a PCB holder keeps the board steady while you work. When a coil needs replacement, a hot air station or soldering station handles removal and fitting, and a jumper lagana step restores a damaged trace if the board needs it. Boards that need deeper rework move on to reballing kits and ISP pinout tools further along the same repair path. Treat the RF4 RF-ID01 as the quick filter at the front of that path: it narrows the fault, and the rest of your kit finishes the repair. Keeping these tools together on one bench also keeps the diagnostic order consistent across technicians.
