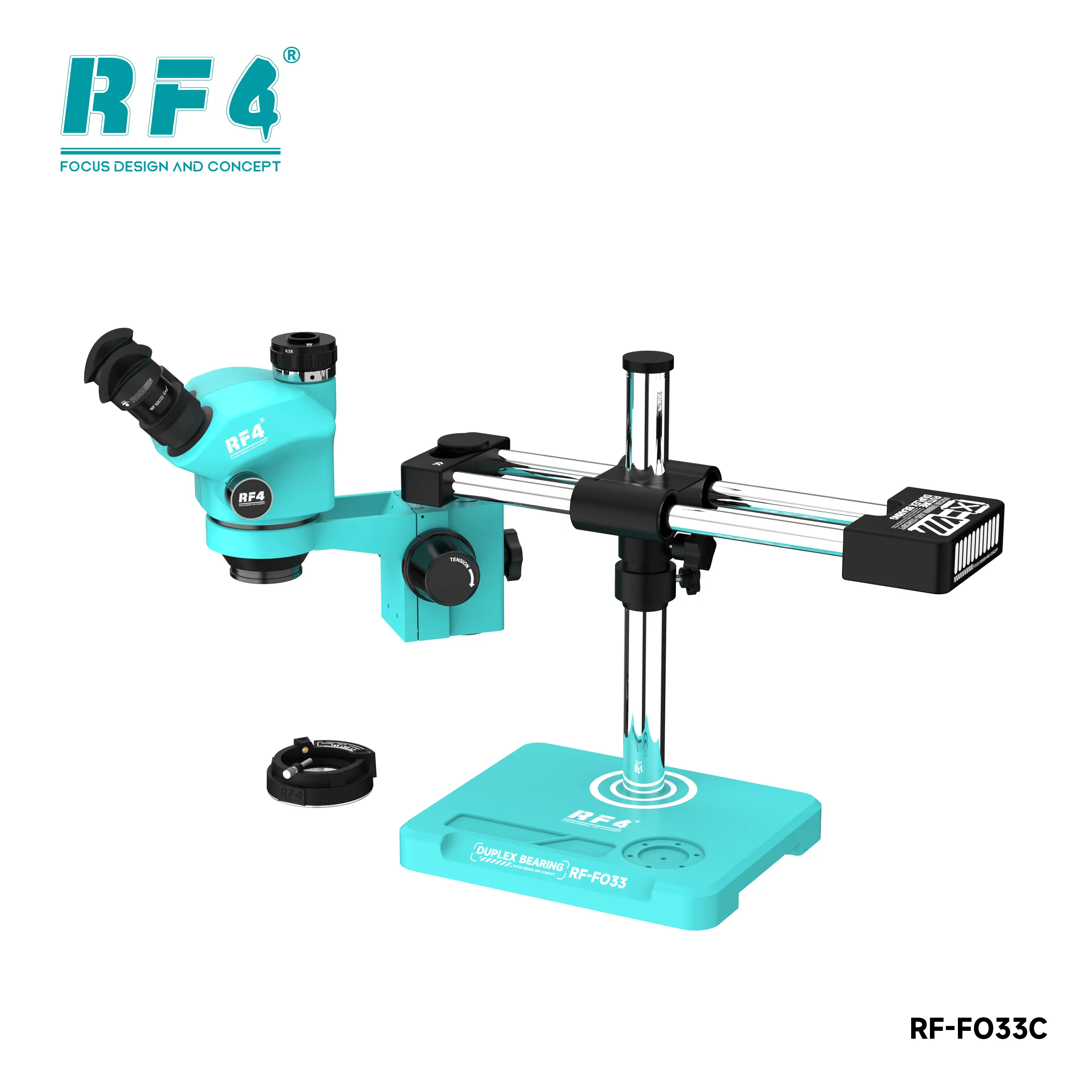

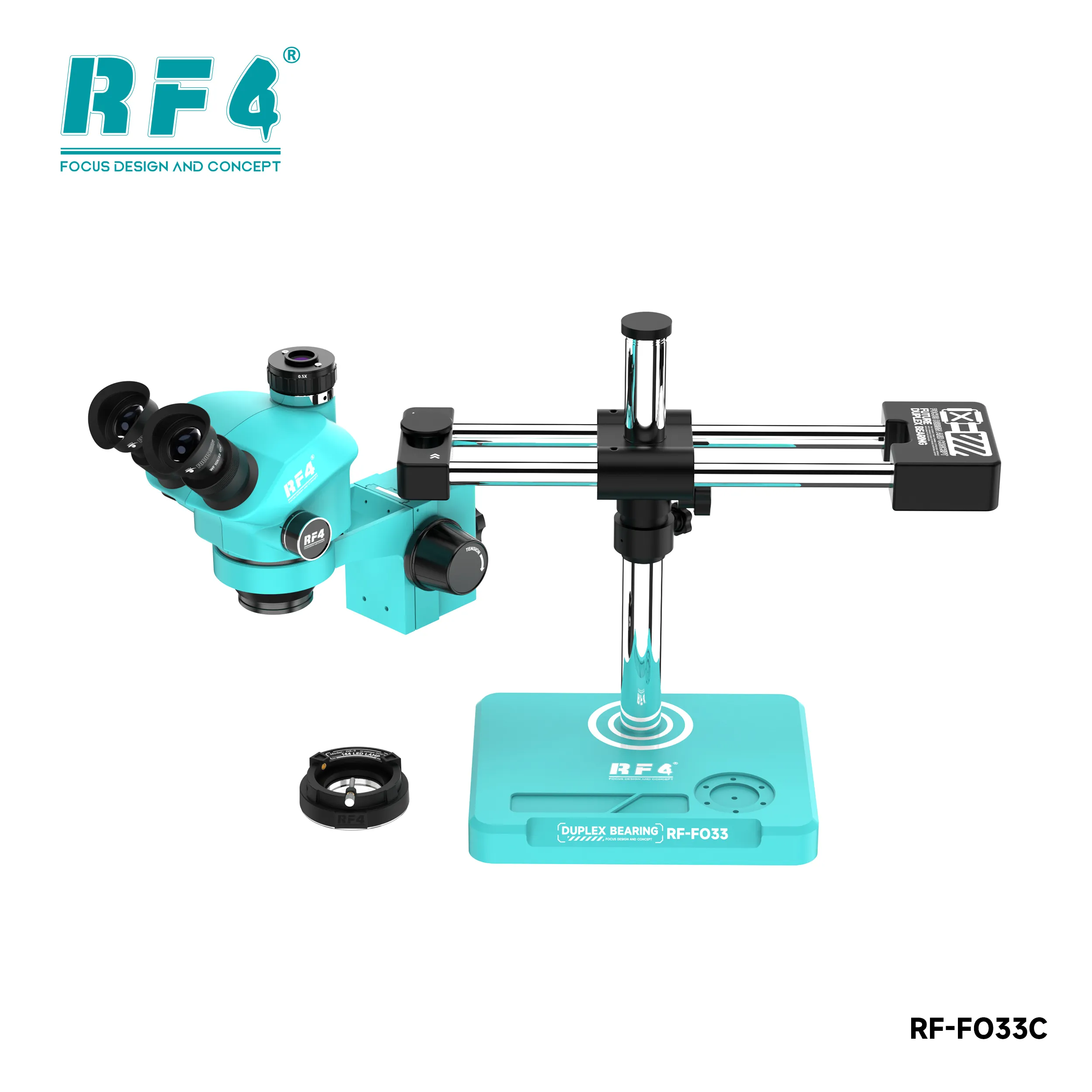

RF4 RF-FO33C 7050Pro 7-50X Microscope Double Arm Base

7-50X Trinocular Stereo Microscope Built for Board-Level Repair

The RF4 7050Pro 7-50X trinocular stereo microscope gives you clear board-level vision for hardware fault repair. Continuous zoom runs from 7X to 50X. You scan a full motherboard at low power, then drop into a single BGA pad at high power. This version sits on the big double-arm base, so the head reaches across large phone boards, tablet boards and laptop motherboards without you shifting the stand. RF4 builds the 7050Pro line for repair shops, service centers and training labs that need stable, repeatable magnification. If you change ICs and reball chips every day, this is a specialist inspection tool for your bench.

Optics and Zoom Control

The head tilts 45 degrees and swivels 360 degrees, so you set the viewing angle that fits your seat and your bench layout. WF10X/22mm eyepieces give a wide field of view, and a 0.7X to 5.0X objective range sets the 7X to 50X zoom span. The 7050Pro adds a six-gear zoom lock. Each gear holds a fixed magnification, so you stop hunting for the right zoom every time you pick up a new board. Synchronous zoom keeps the eyepiece view and the camera monitor at the same magnification, so you never re-adjust when you switch from looking to recording.

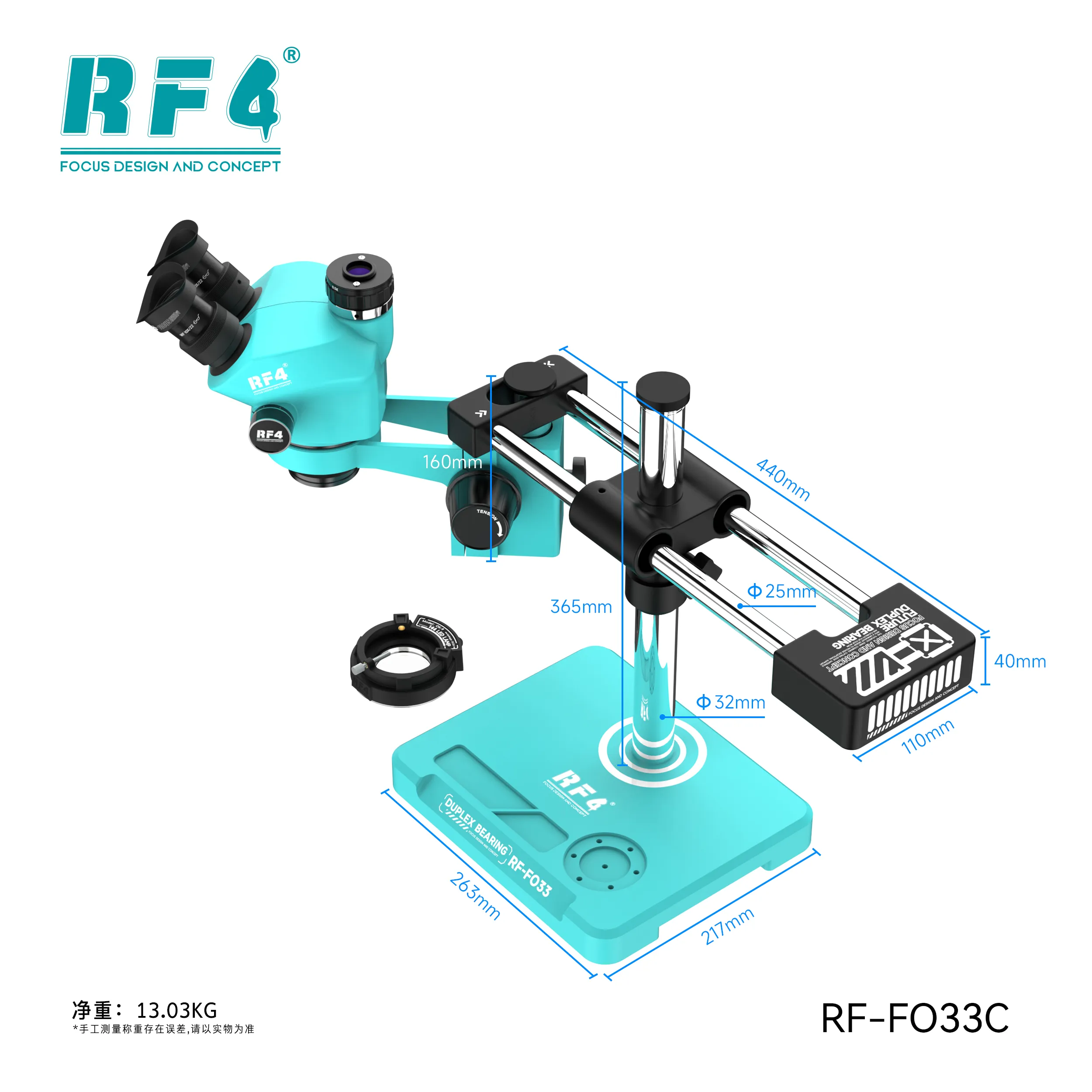

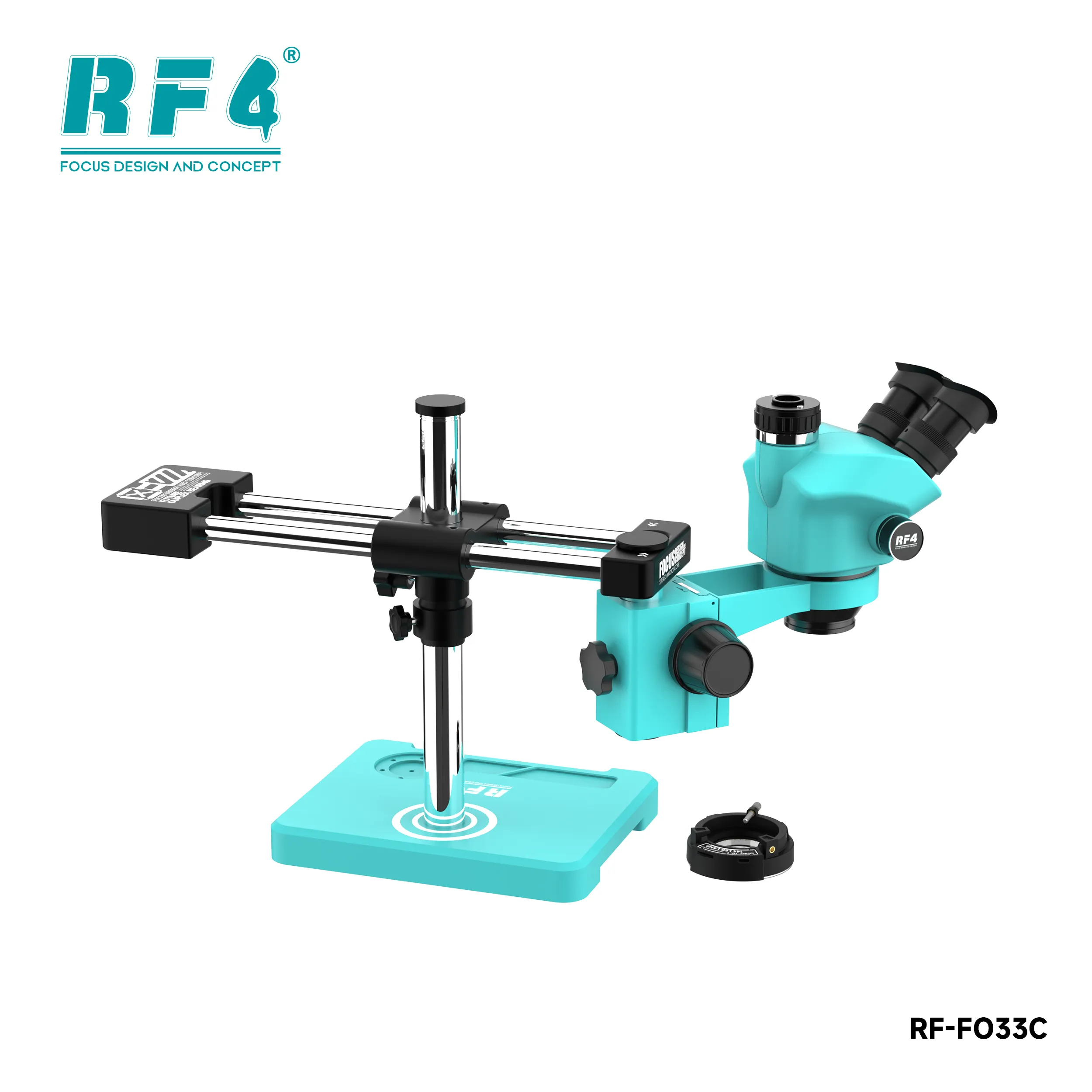

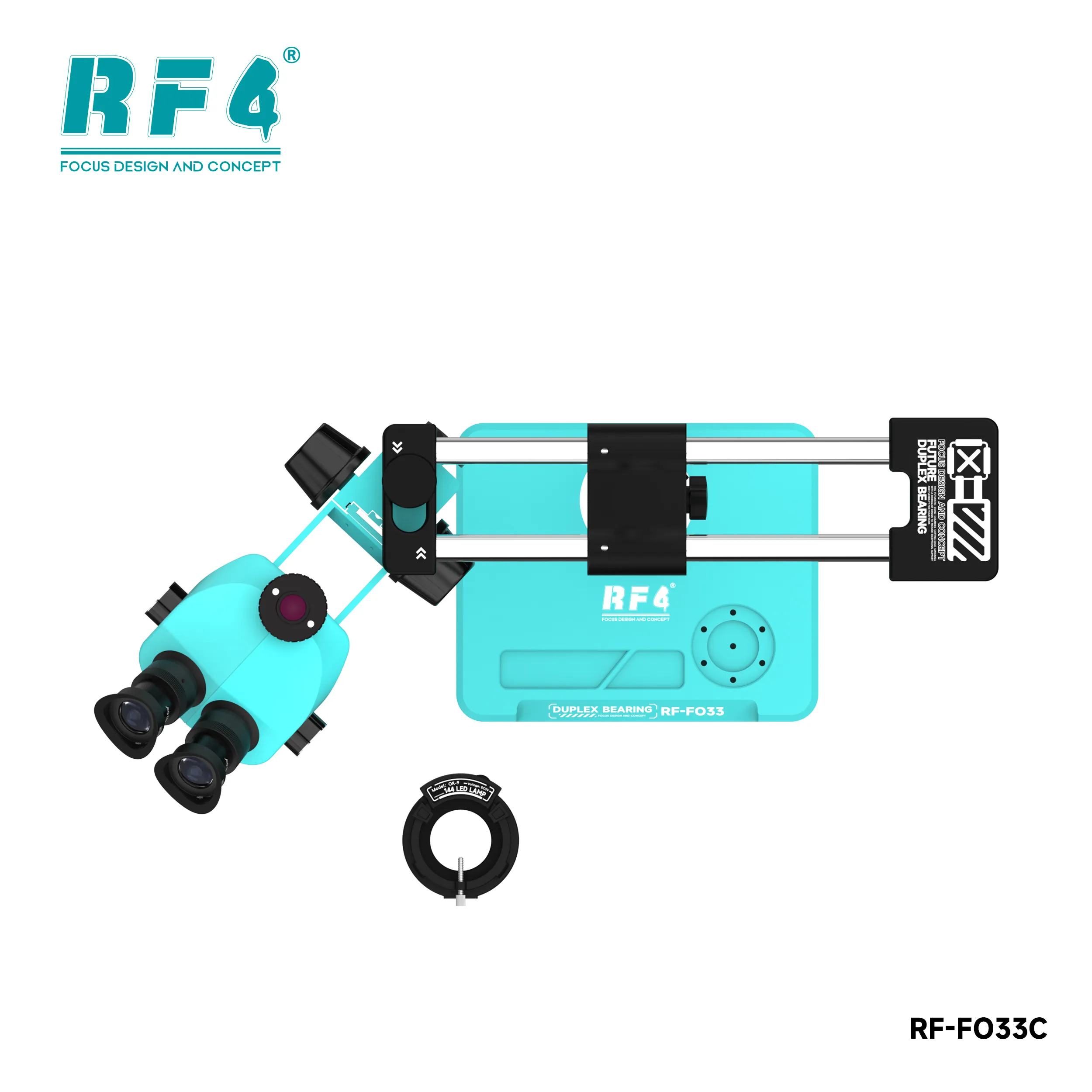

Double-Arm Base and Bench Reach

A microscope that drifts ruins fine soldering. The double-arm boom stand carries the head out past the base footprint, so you inspect the far edge of a large board while the base stays planted. You keep your PCB holder, hot air station and soldering station in their normal positions and swing the head over the work instead of rearranging the bench. The big base also leaves room for a reballing stencil, a jig or a second board at the same time. Pakistani repair shops often run tight bench space, and this layout gives you reach without extra clutter.

Camera Port and Monitor Workflow

The trinocular port accepts a camera through a CTV adapter lens, so you add an HDMI or USB microscope camera and move the image to a monitor. Eye strain drops when you solder while watching a screen, and a trainee or customer follows your repair in real time. You also record before-and-after footage of liquid damage cleaning, lifted pads and reballed ICs. Add the camera separately and match the adapter lens to your camera’s C-mount.

Where It Fits in Your Repair Workflow

Start with diagnostics. You inspect the board for corrosion, burnt components, cracked traces and missing pads before you reach for a multimeter. During rework, you watch the solder flow while a hot air station lifts an IC, and you confirm clean pads before you place a new chip. Reballing demands the most from the microscope. You check ball alignment on the stencil, spot bridges and verify each joint after reflow. For ISP work on a dead after flash phone, you solder fine wires to tiny test points, and 50X zoom shows you exactly where each wire lands. After repair, you inspect the board once more before you power it up on a test box.

Who Should Buy the RF4 7050Pro

Choose this model if you handle daily board-level jobs: charging issue boards, display problem boards, network issue boards and no-power phones. Shop owners get a stable inspection station that suits several technicians. Training institutes get a camera-ready setup for classroom demonstrations. If you currently work with a basic single-magnification scope or a magnifier lamp, the 7050Pro is a clear step up in magnification control and viewing comfort.
