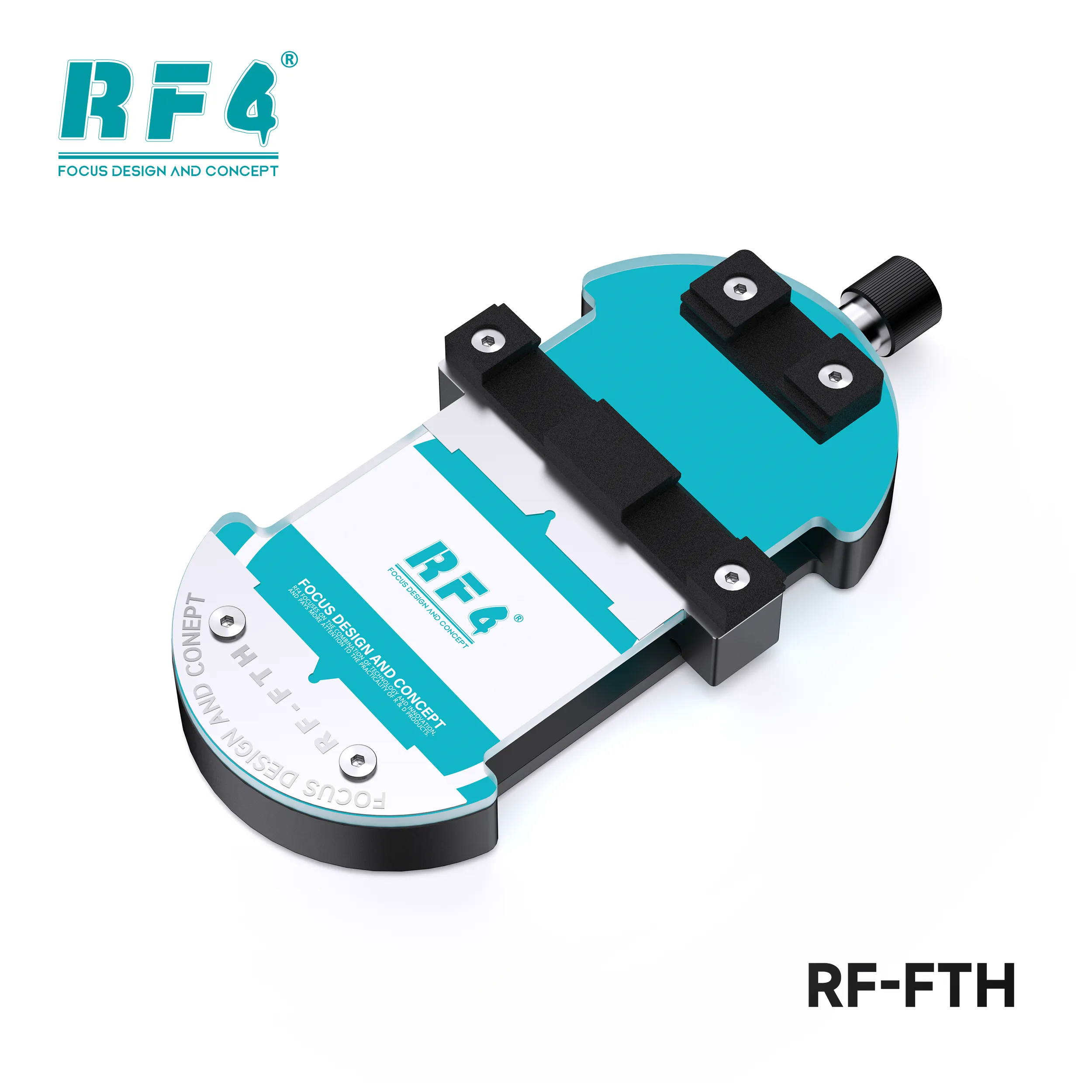

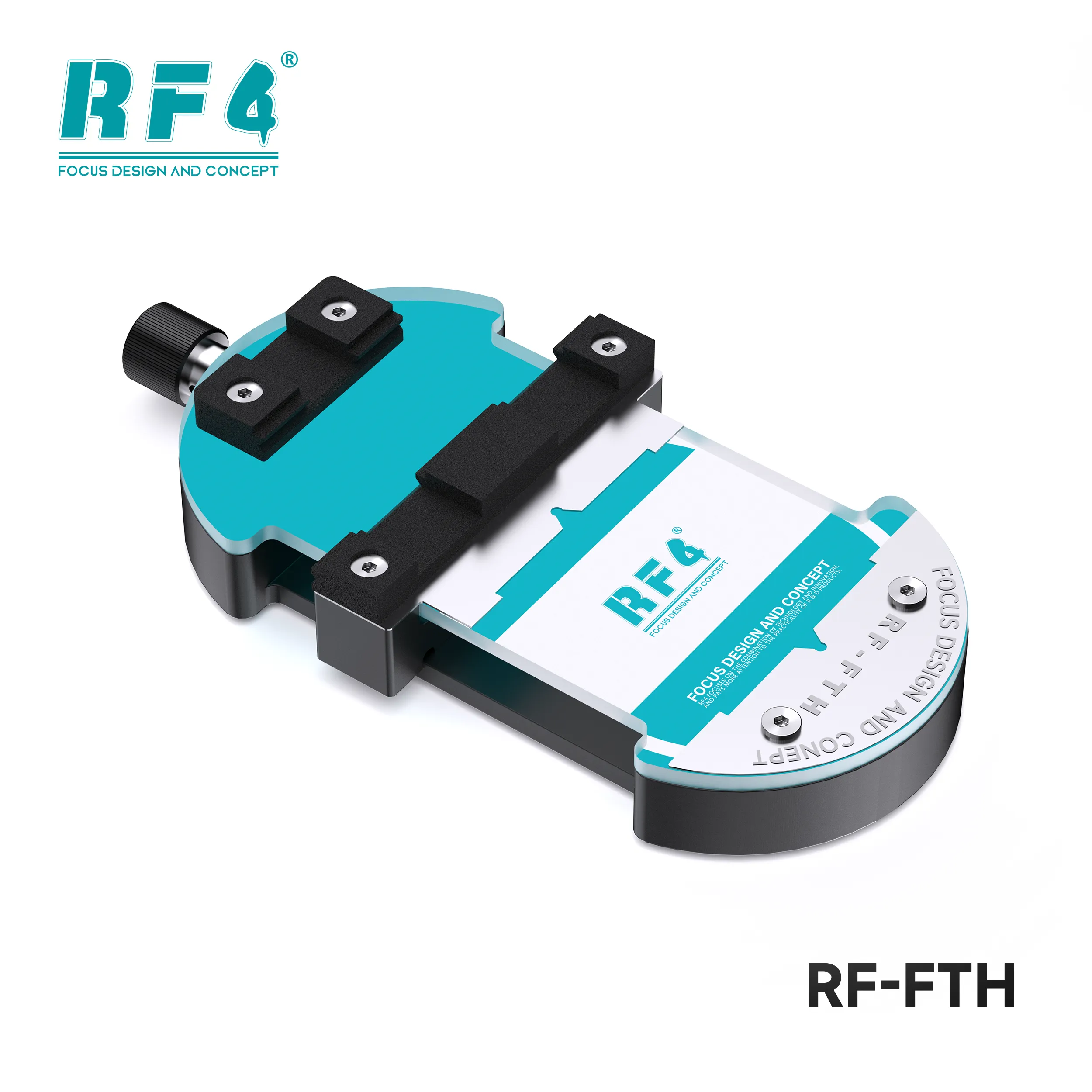

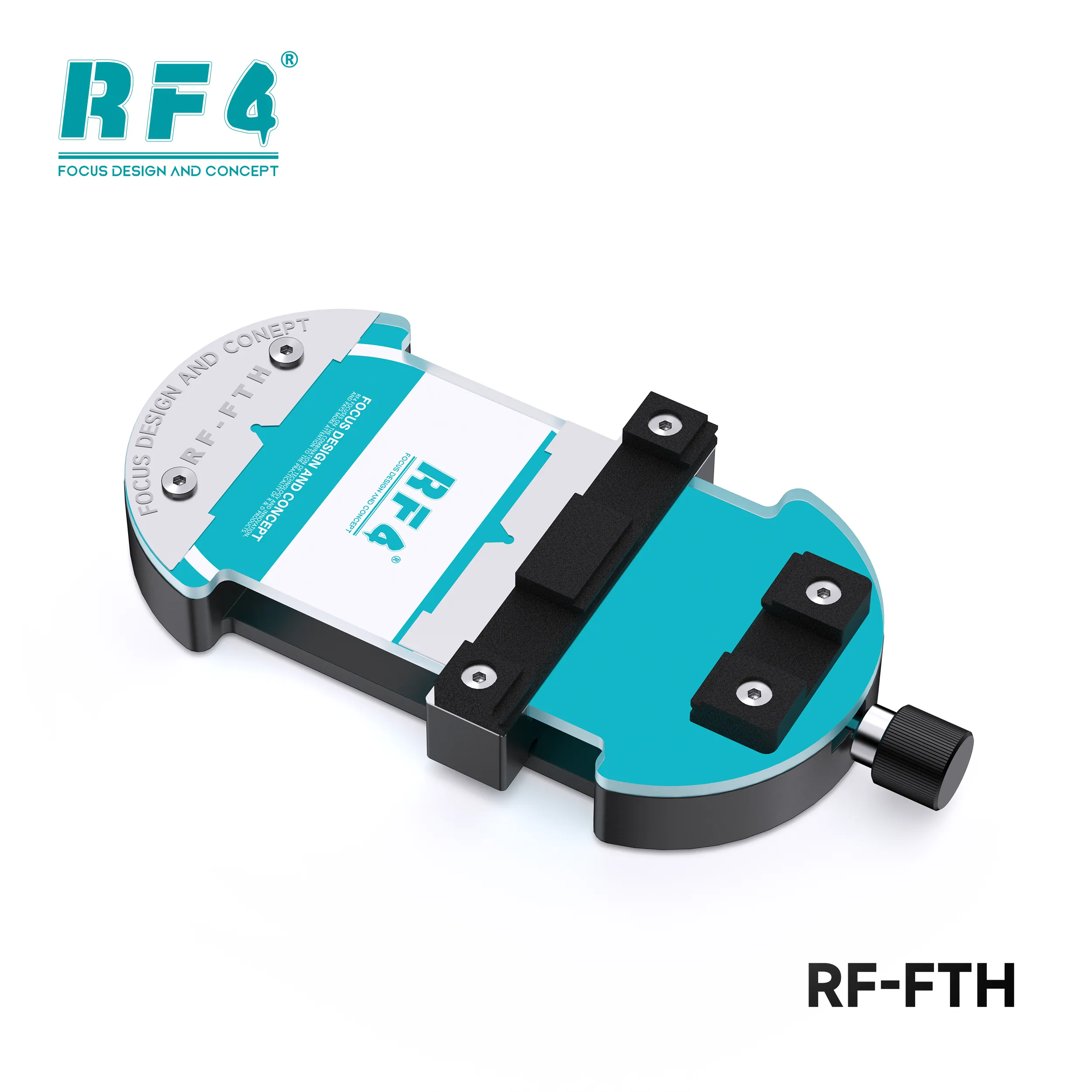

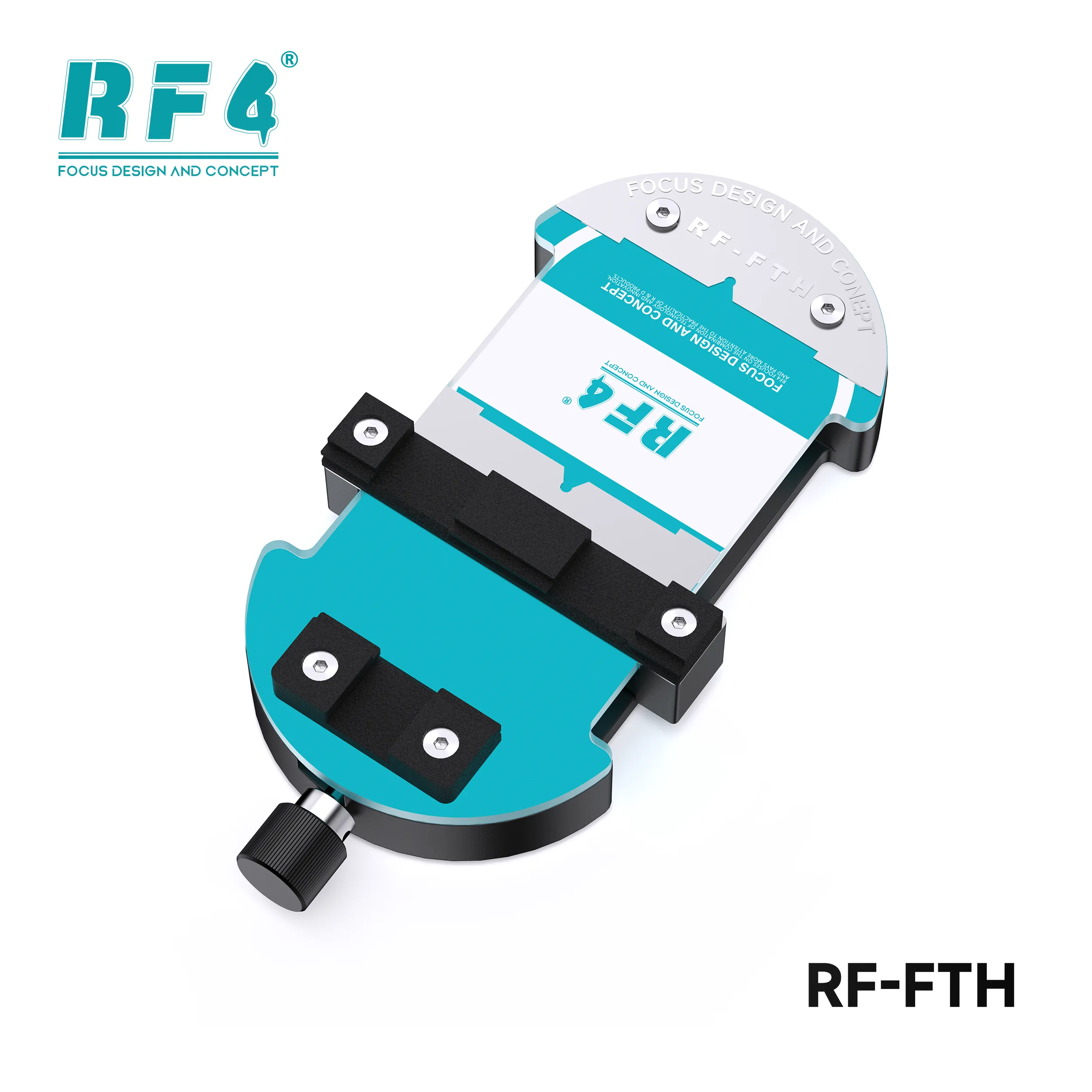

RF4 RF-FTH Integrated Glass PCB Fixture

Professional Glass PCB Fixture for Stable Chip-Level Rework

A board that shifts under hot air ruins the repair. The RF4 RF-FTH fixture is a professional glass PCB fixture that locks the motherboard in place while you work. It uses a dual-size 58/66mm design, so one clamp handles two sizes on your bench. The groove-free glass surface gives strong adsorption and keeps the PCB from moving. RF4 positions it for technicians, repair shop owners, and service centers that run chip-level repair every day.

Dual-Size Clamping and Groove-Free Glass

Most benches carry several holders for different board widths. The RF-FTH cuts that clutter. Its 58/66mm dual-size design gives you two clamping sizes in a single body. You switch between boards without swapping fixtures, which saves time on mixed jobs through the day.

The groove-free glass surface sits flat under the PCB. It delivers strong adsorption, so the board holds position and does not shift. Without grooves, the board rests on one continuous surface instead of rocking on gaps. You place the board once and start work.

Check your board against the two sizes before you order. Measure the PCB width, then pick the matching clamp size. The dual-size layout covers both, and RF4 lists the fixture as compatible with most mobile PCBs.

Two Slides and Three Rotation Modes

Two independent slides move separately. You adjust the left and right sides on their own and match the clamp to the shape of the board. That matters on irregular PCBs, where the edges do not line up. The RF-FTH stays stable on those surfaces.

Three rotational clamping modes let you turn the board to the angle you need. You reach tight corners and edges without rebuilding your setup. Your hands stay free for the iron, the hot air nozzle, and the tweezers. A steady angle also helps you read the pads clearly under the microscope.

Rotation also protects your workflow. When you finish one side of an IC, you change the angle and move to the next pad row. Fewer lift-and-reposition moves mean fewer chances to disturb a half-finished joint.

Repair Workflow Fit and Upgrade Path

The RF-FTH sits between diagnosis and rework. Say you trace a hardware fault on a dead phone, a charging issue, or a hang on logo case. You clamp the board, heat the target area with your hot air station, and lift the chip. IC change karna goes faster when the board stays put.

Glue removal and desoldering need the same stability. Glue removal around a CPU or IC demands a steady board, and the fixture takes that variable out of the job. Clear the old adhesive and solder, clean the pads, and set the new chip under your microscope. The fixture holds the board through each stage, so you finish without stopping to reset it.

Pair the RF-FTH with a soldering station, a reballing kit, and a multimeter to cover the full PCB repair process. If you run a small bench, this fixture upgrades a basic mobile phone PCB holder. If you run a service center, it gives each technician a consistent base for chip-level work.

Pakistan repair shops handle high board volume. A stable platform makes your results repeatable from the first board of the day to the last. The RF-FTH gives you that platform in a single glass fixture.
