RF4 RF-FT3X Heat Insulated PCB Repair Fixture

RF4 RF-FT3X: Heat Insulated PCB Repair Fixture for Chip-Level Work

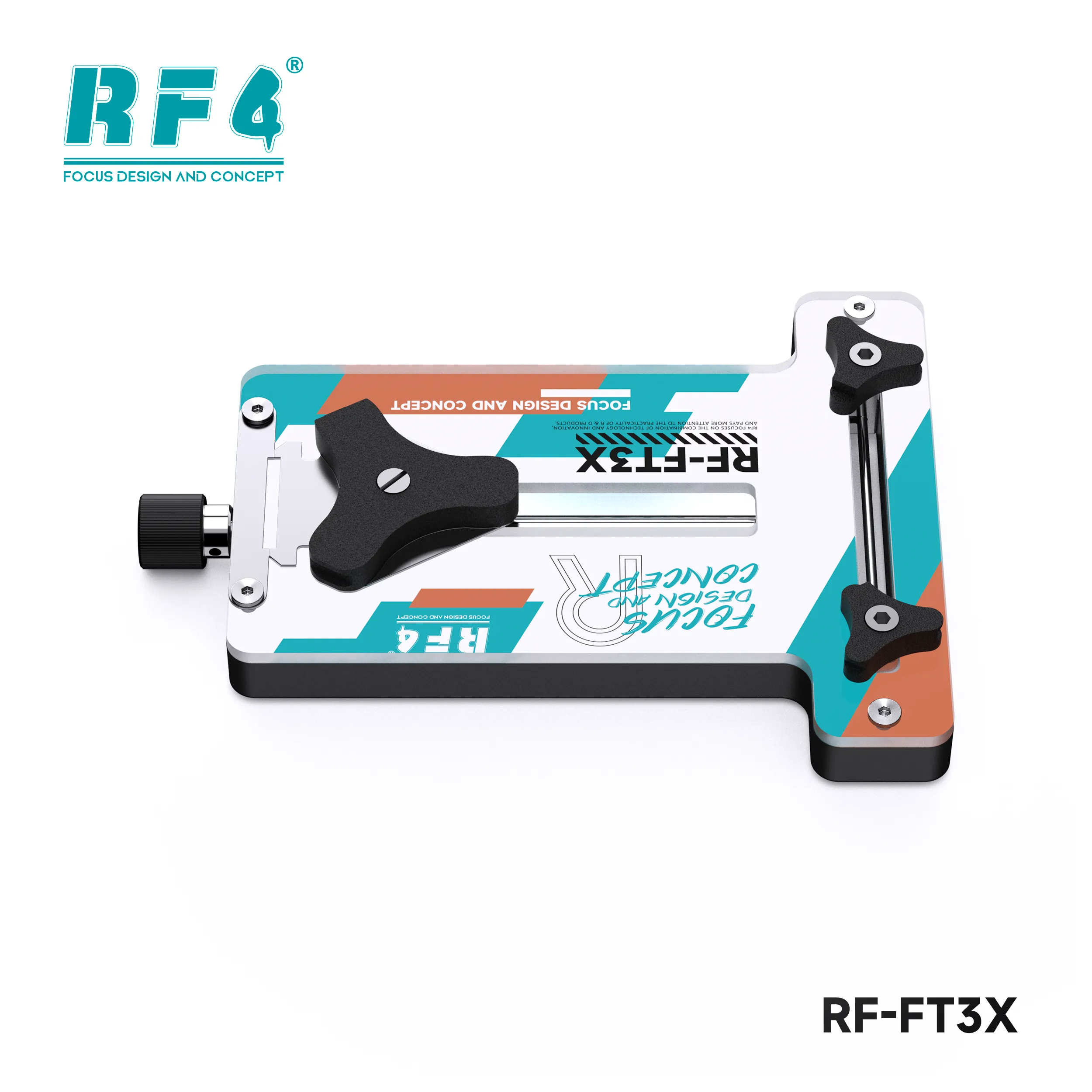

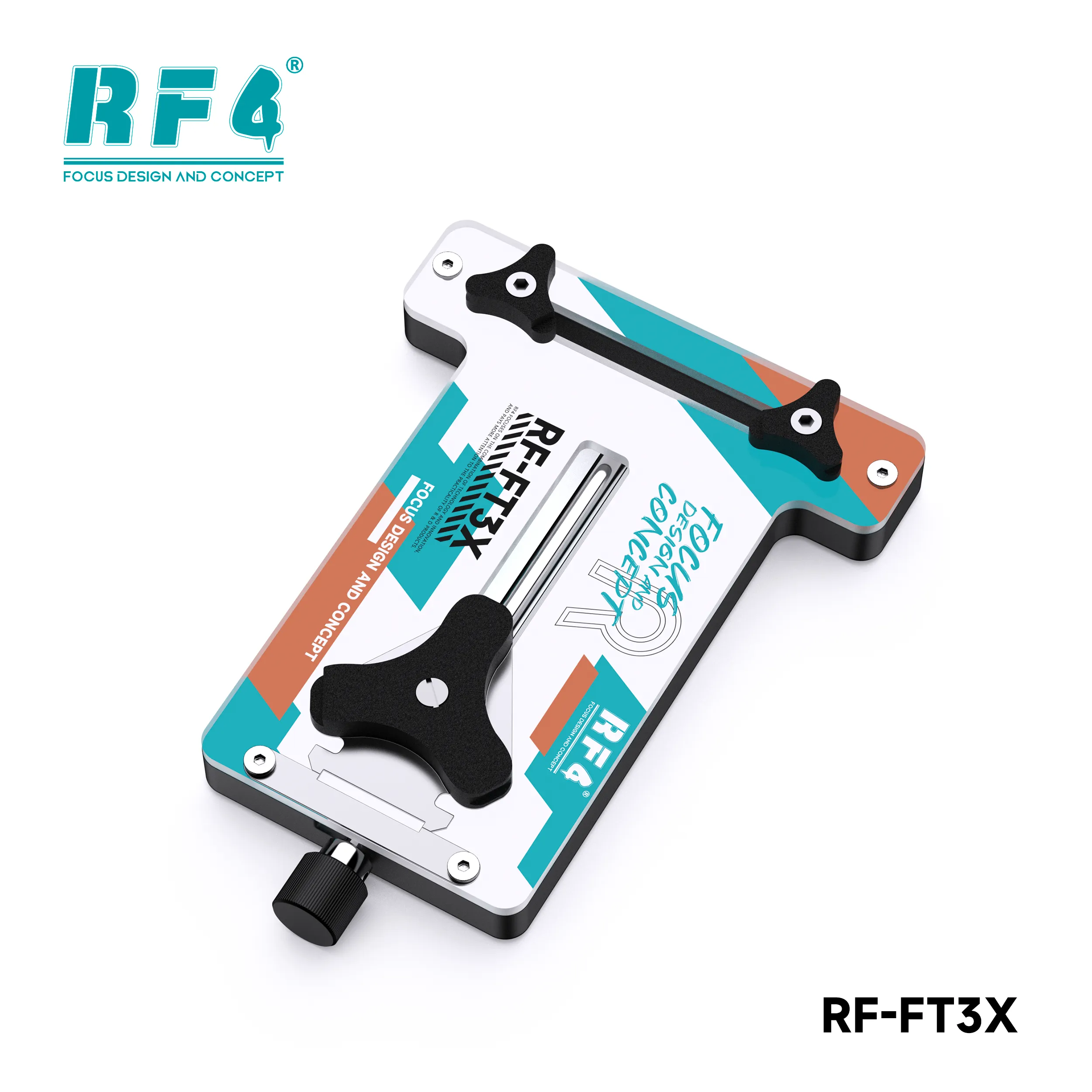

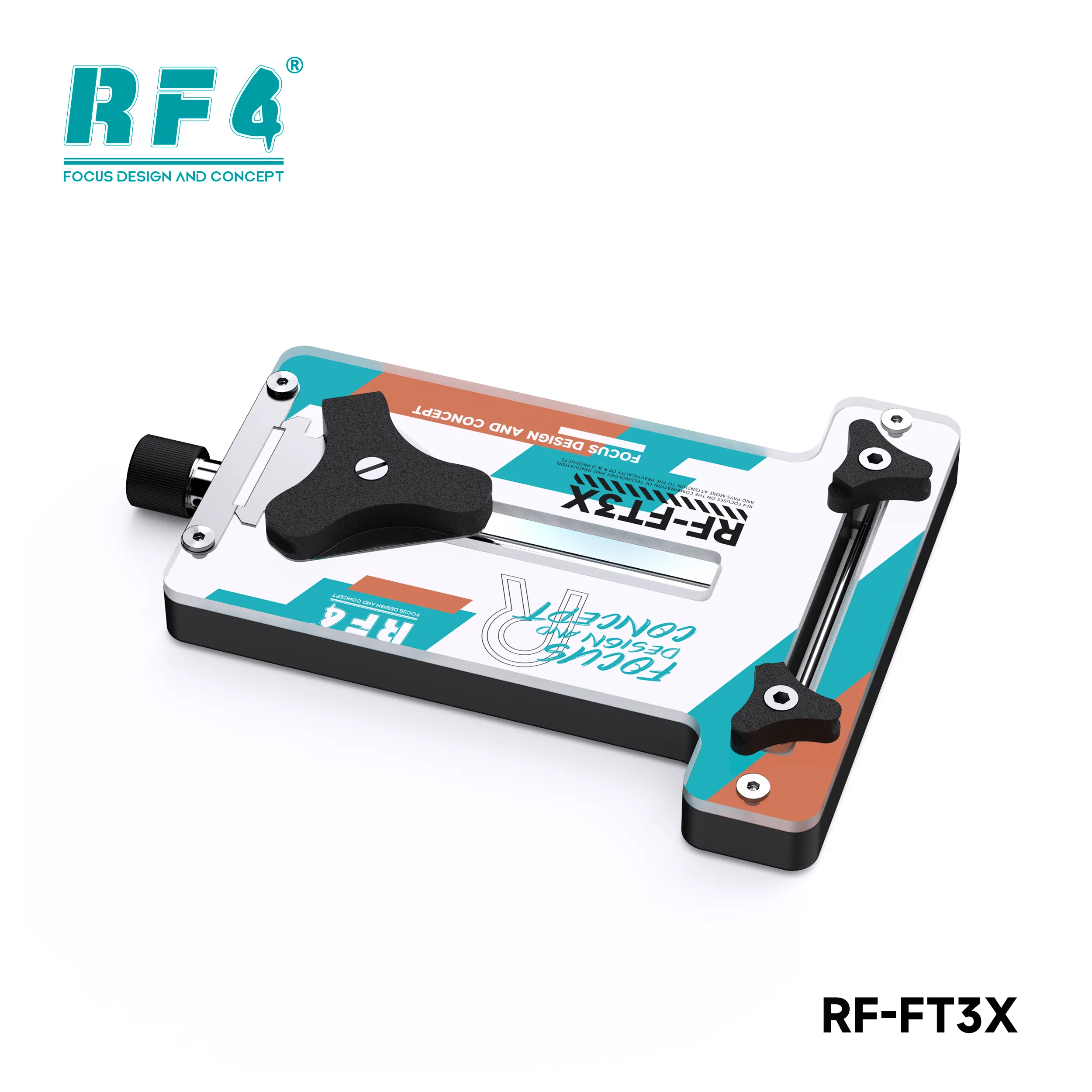

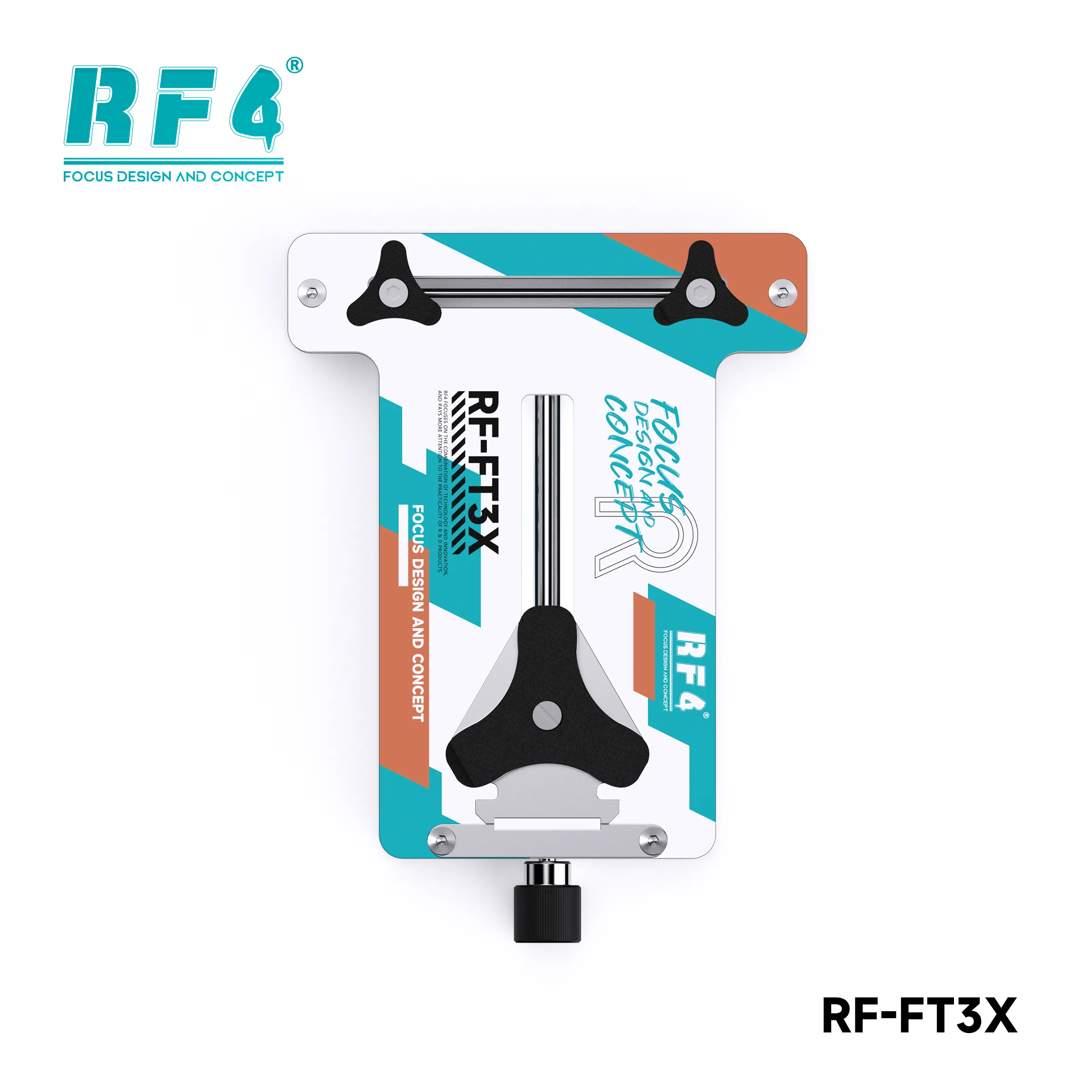

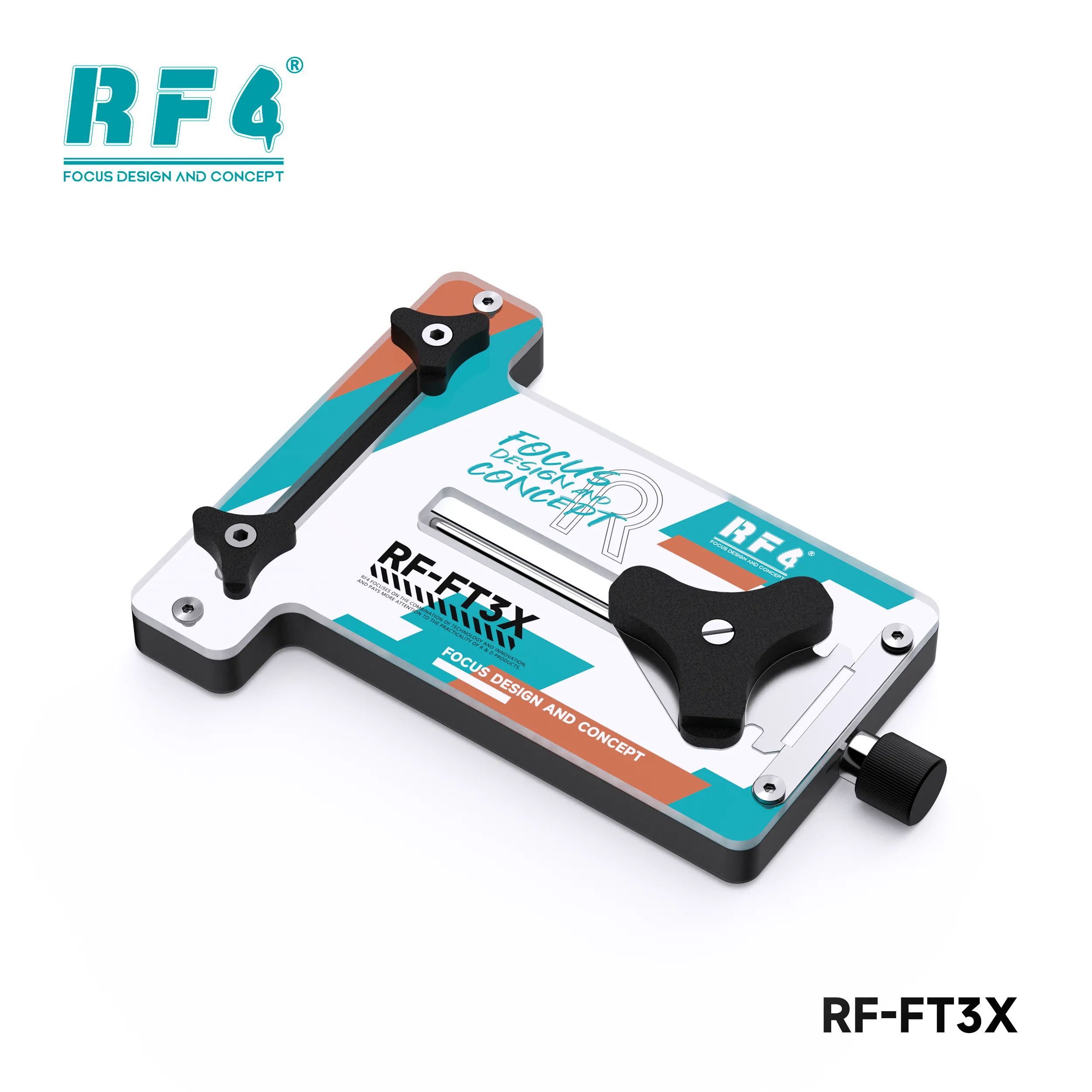

A board that shifts under hot air ruins a reball in seconds. The RF4 RF-FT3X heat insulated PCB repair fixture holds the motherboard still, so your hands stay on the iron, the hot air gun, and the tweezers. RF4 designed it as a multi-functional fixture for technicians who handle motherboard reballing, chip-level repair, and BGA rework every day. You get a heat-insulated glass platform, a metal frame, two sliding blocks, and three rotation modes in one holder. Whether you run a one-man workshop or a busy service center, it turns shaky freehand work into controlled repair.

Dual Sliders and Three Rotation Modes

Two sliding blocks move independently, so you adjust the left and right sides on their own. That matters because phone motherboards differ widely between brands and models. Uneven edges, cutouts, and irregular surfaces still get a firm grip, and you never force a board flat to make it fit.

Three rotation modes give you free rotation or a locked position. Spin the board to reach an IC on the far corner, lock it, and start your work. Complex angles stop being a two-handed job. The fixture also supports large BGA chips, so the board keeps a stable base while you run hot air over a big package. One fixture adjusts to the board in front of you, which saves bench space and setup time in a busy workshop.

Heat-Insulated Glass Platform for Hot Air Work

Hot air work pushes heat through the board and into whatever holds it. The RF-FT3X uses a heat-insulated glass platform that resists heat buildup and warping during extended hot air rework. Long jobs make that count. You reflow, check under the microscope, and reflow again, and a platform that stays flat keeps your board level between passes.

The glass platform pairs with a metal frame, so the structure stays rigid while the insulated surface handles the heat. Set your hot air station and soldering station temperatures for the board in front of you. The fixture holds the phone steady, and your temperature profile protects the components. Keep flux and residue off the platform between jobs so the clamping surface stays clean and the board sits true.

Where the RF-FT3X Fits in Your Repair Workflow

The fixture sits between diagnosis and chip work. After you trace a hardware fault, such as a dead phone after flash, a charging issue, or a board that hangs on logo, you mount the board here and start the repair. Use it for IC change karna, BGA reballing, and chip-level rework on mobile phone PCBs.

Build a complete bench around it: a hot air station for reflow, a soldering station for pad cleanup, a microscope for inspection, and a reballing kit for the chip itself. Keep a multimeter nearby to confirm continuity and shorts before and after the repair, and use your test box for the software side once the board powers on. Compare other sizes and clamping styles in our PCB holders category if your bench handles smaller or larger boards. Repair shops and service centers in Pakistan pick the RF-FT3X for repeatable stability. Every board stays where you put it, and your reball results stay predictable across a full day of jobs.
