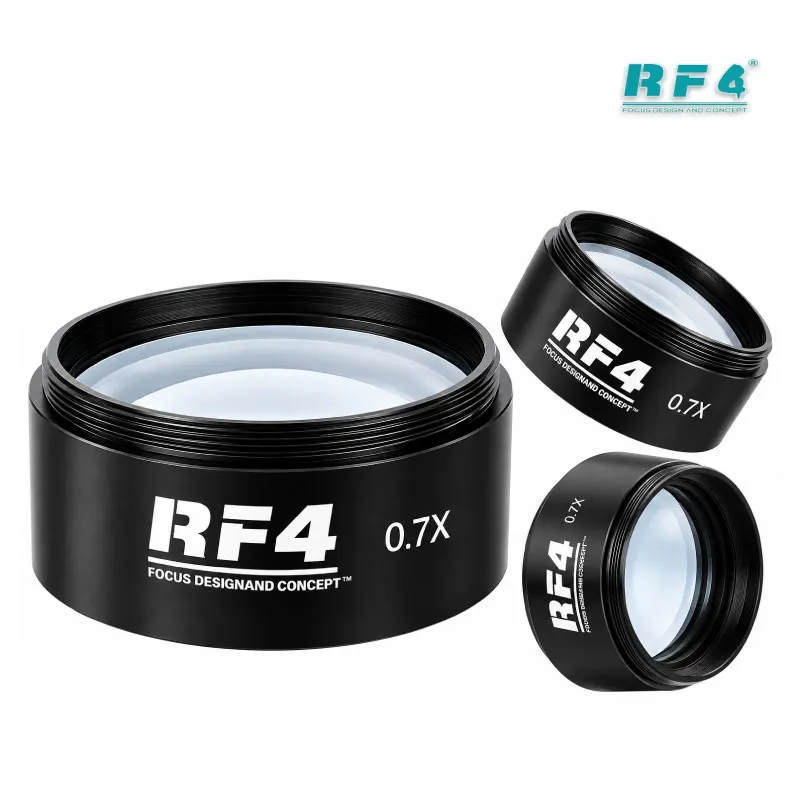

RF4 WD165 0.7x Microscope Auxiliary Lens

0.7x Microscope Auxiliary Lens for Mobile Board Repair

A 0.7x microscope auxiliary lens changes how much space you have between the objective and the PCB. The RF4 WD165 0.7x version threads onto the front of a stereo zoom microscope and lifts that clearance, so your hands stop fighting the optics. You hold a hot air gun in one hand and tweezers in the other, and the board sits where you can reach it. The lens suits trinocular and binocular stereo zoom microscopes with a 48mm objective thread.

How the 0.7x Lens Changes Your View

An auxiliary lens like this one reduces total magnification and increases working distance. At 0.7x, the image comes out slightly smaller than your microscope’s native view, and the focus point moves away from the objective. You trade a little zoom for space. On a busy board, that trade pays off. You see more of the PCB at once, so you track nearby capacitors, shield frames, and flex connectors while you work on a single IC.

Why a 0.7x Microscope Auxiliary Lens Suits Mobile Repair

Mobile board work needs both hands and a clear line of sight. Heat, flux fumes, and long tweezers all crowd the area under a standard objective. The 0.7x lens gives your tools room without forcing you to step back from the eyepieces. For BGA soldering repair on mobile phone motherboards, that room helps during IC change karna, reballing, and jumper lagana. Technicians chasing a dead phone or a charging issue spend long hours under the microscope, and a wider view with more clearance reduces the constant repositioning.

Fit on Your Repair Bench

The lens uses a 48mm (1-7/8 inch) mounting thread. You screw it directly onto the objective, with no tools and no adapter in the standard setup. Check your microscope’s objective thread before you order, because the lens fits only objectives with a matching 48mm thread. The optics use a glass lens, which keeps the image sharp when you refocus after mounting.

Pair it with a hot air station and a soldering station on the same bench for rework. A PCB holder keeps the board steady under the wider view, and a reballing kit sits within easy reach. If you want built-in lighting, RF4 also makes a 0.7x lens with integrated LED illumination.

Where It Helps in Daily Repairs

You gain the most on jobs where tool access limits your work: removing and reseating BGA ICs, cleaning flux off lifted pads, checking solder joints after reflow, and tracing broken lines on a hardware fault board. Dead after flash and hang on logo cases often end at a board-level check, and the 0.7x view lets you inspect the area around the eMMC, charging IC, and power IC without crowding your hands. If you work with a trinocular microscope, the lens sits ahead of the camera path, so your screen view widens too.
